# Structures
| Name | Code | Category | Feature Layer |
|---|---|---|---|
| Floor Level | 111 | FS_STRUCTURES | BUILDING_FLOOR_LEVEL |
| Roof Level | 112 | FS_STRUCTURES | BUILDING_ROOF_LEVEL |
| Test Pit | 150 | FS_STRUCTURES | GEOTECH_TEST_PIT |
| Test Bore | 151 | FS_STRUCTURES | GEOTECH_TEST_BORE |
| House | 601 | FS_STRUCTURES | BUILDING_HOUSE |
| Shed | 602 | FS_STRUCTURES | BUILDING_SHED |
| Building | 603 | FS_STRUCTURES | BUILDING_BUILDING |
| Verandah | 604 | FS_STRUCTURES | BUILDING_VERANDAH |
| Handrail | 605 | FS_STRUCTURES | BUILDING_HANDRAIL |
| Public Seating or Table | 606 | FS_STRUCTURES | BUILDING_SEAT-TABLE |
| AirConditioning | 607 | FS_STRUCTURES | BUILDING_AIRCON |
| Retaining Wall Top | 608 | FS_STRUCTURES | STRUCTURES_RETAINING_WALL_TOP |
| Retaining Wall Toe | 609 | FS_STRUCTURES | STRUCTURES_RETAINING_WALL_TOE |
| Structure | 610 | FS_STRUCTURES | BUILDING_STRUCTURE |
| Swimming Pool | 611 | FS_STRUCTURES | BUILDING_SWIMMING_POOL |
| Stockpile | 612 | FS_STRUCTURES | BUILDING_STOCKPILE |
| Bore/Well | 613 | FS_STRUCTURES | BUILDING_BORE_WELL |
| Windmill/Windpump | 614 | FS_STRUCTURES | BUILDING_WINDMILL_WINDPUMP |
| Quarry/Pit | 615 | FS_STRUCTURES | BUILDING_QUARRY_PIT |
| Sports arena/field | 616 | FS_STRUCTURES | BUILDING_SPORTS_ARENA_FIELD |
| Wall | 617 | FS_STRUCTURES | BUILDING_WALL |
| Tower/Chimney | 618 | FS_STRUCTURES | BUILDING_TOWER_CHIMNEY |
| Retaining wall - Crib | 619 | FS_STRUCTURES | BUILDING_RETAINING_WALL_CRIB |
| Retaining wall - Rock | 620 | FS_STRUCTURES | BUILDING_RETAINING_WALL_ROCK |
| Retaining wall - Conc | 621 | FS_STRUCTURES | BUILDING_RETAINING_WALL_CONC |
| Retaining wall - Wood | 622 | FS_STRUCTURES | BUILDING_RETAINING_WALL_WOOD |
| Garage | 623 | FS_STRUCTURES | BUILDING_GARAGE |
| Petrol Bowser | 624 | FS_STRUCTURES | FUEL_PETROL_BOWSER |
| Petrol valve S/station | 627 | FS_STRUCTURES | FUEL_PETROL_VALVE_S_STATION |
| Column/Support | 628 | FS_STRUCTURES | STRUCTURES_COLUMN_SUPPORT |
| Conc. Pad/Footings | 629 | FS_STRUCTURES | STRUCTURES_CONC_PAD_FOOTINGS |
| Ladder | 630 | FS_STRUCTURES | BUILDING_LADDER |
| Steps | 631 | FS_STRUCTURES | BUILDING_STEPS |
| Hoarding | 632 | FS_STRUCTURES | STRUCTURES_HOARDING |
| Playground | 633 | FS_STRUCTURES | STRUCTURES_PLAYGROUND |
| Barbecue | 634 | FS_STRUCTURES | STRUCTURES_BARBECUE |

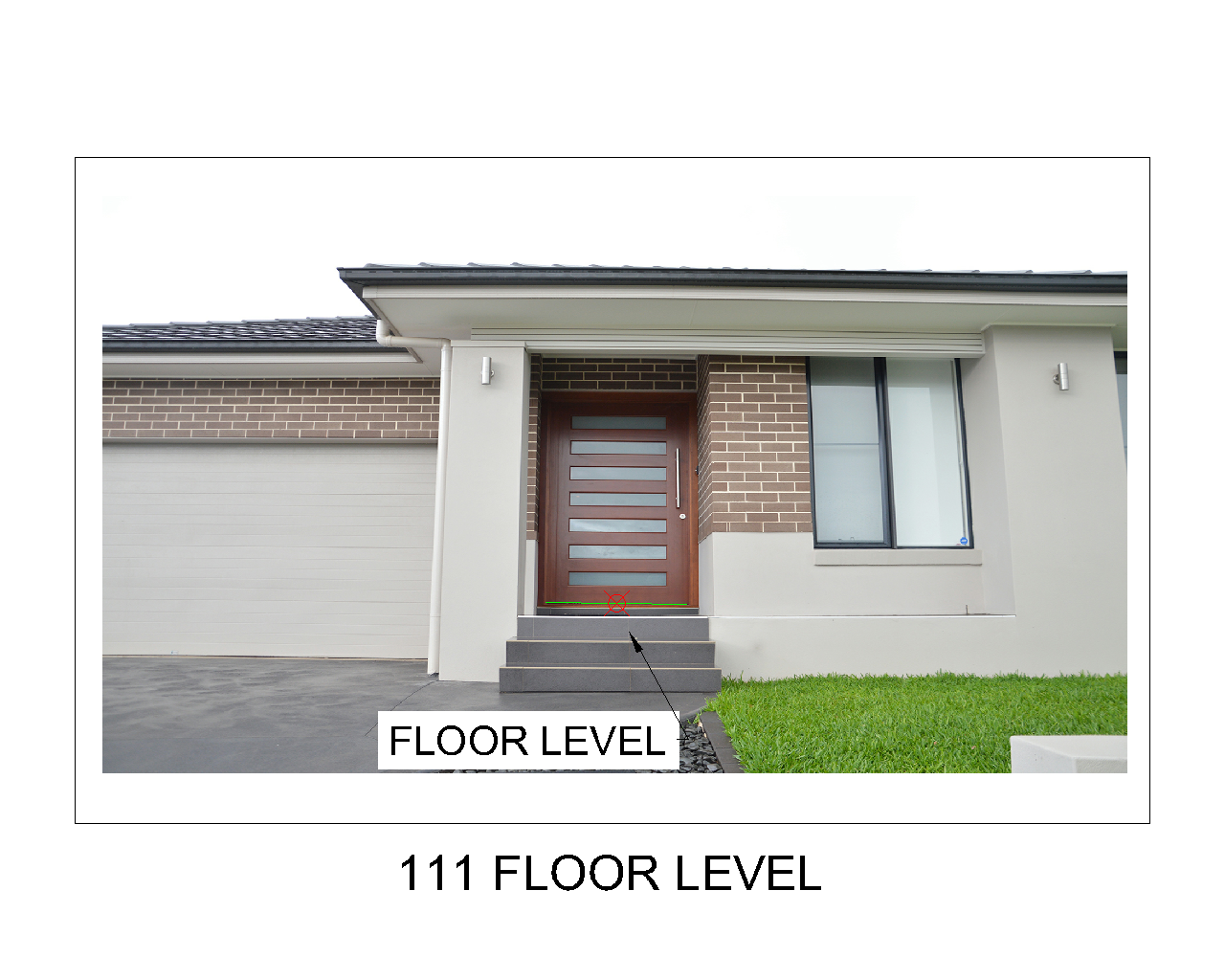

# 111 Floor Level
CAD Layer - BUILDING_FLOOR_LEVEL
3D String along the floor level of a structure.
This feature is included as part of the TIN.

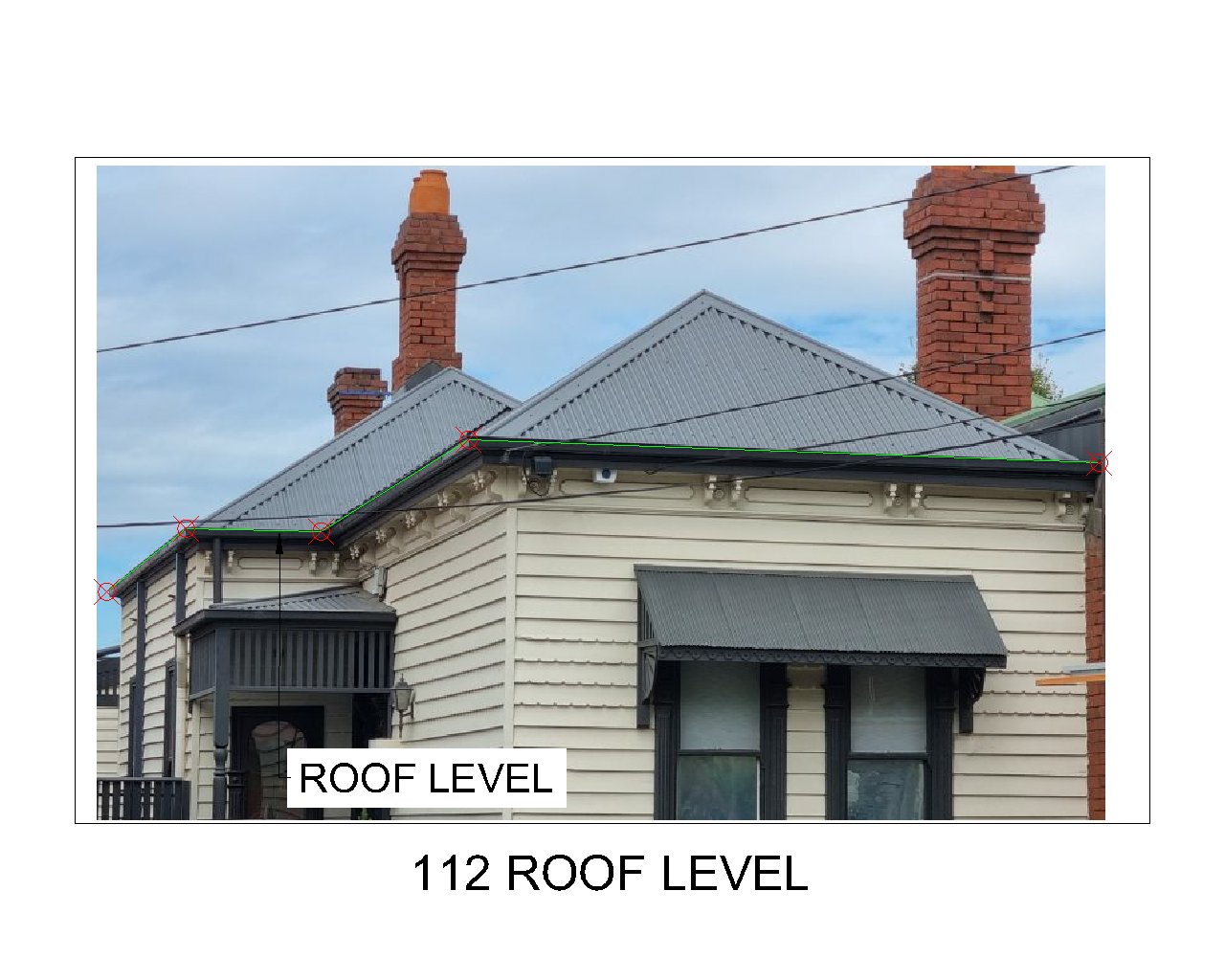

# 112 Roof Level
CAD Layer - BUILDING_ROOF_LEVEL
3D String along the roof level of a structure.
This feature is included as part of the TIN.

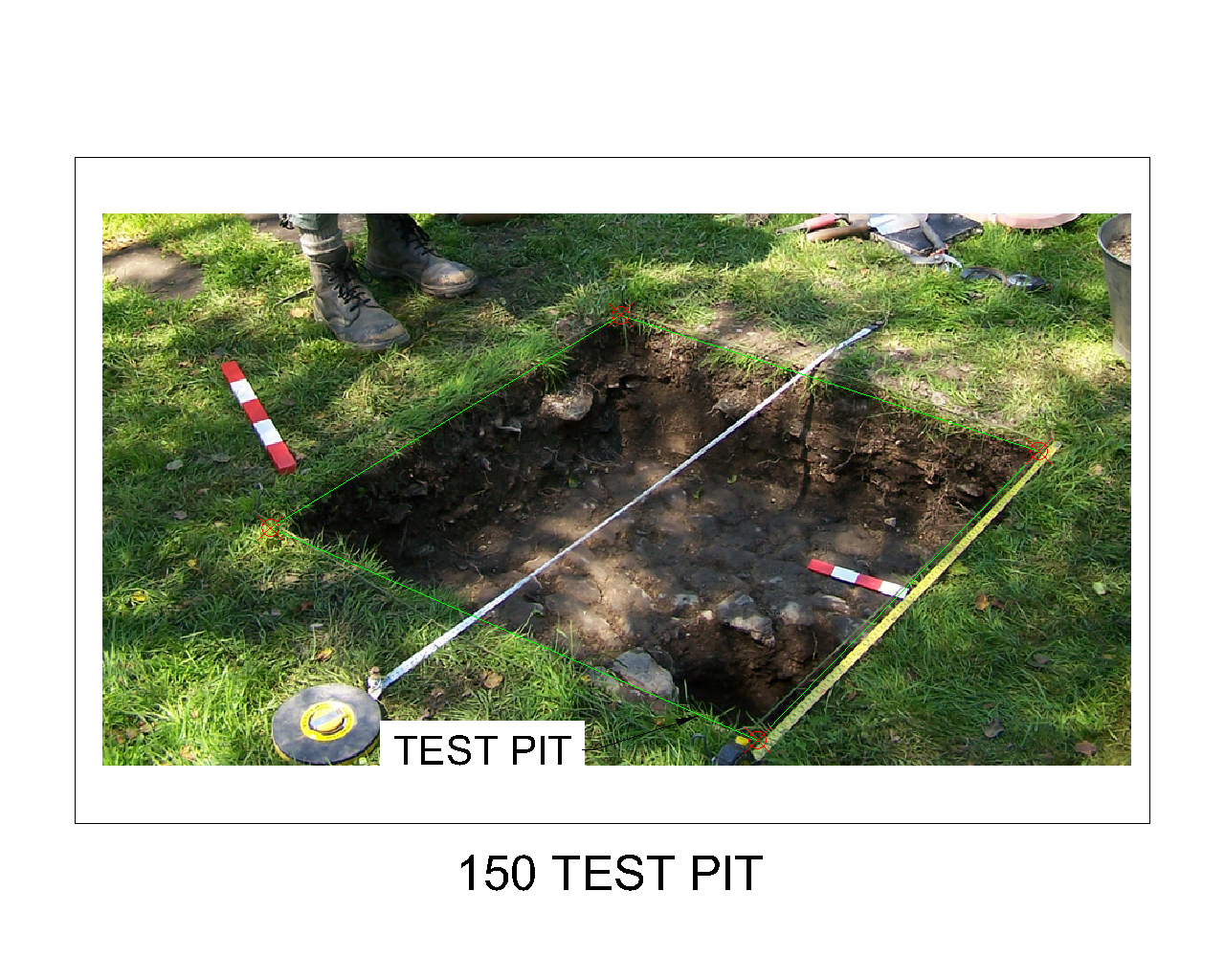

# 150 Test Pit
CAD Layer - GEOTECH_TEST_PIT
3D String along the perimeter of a test pit.
This feature is included as part of the TIN.

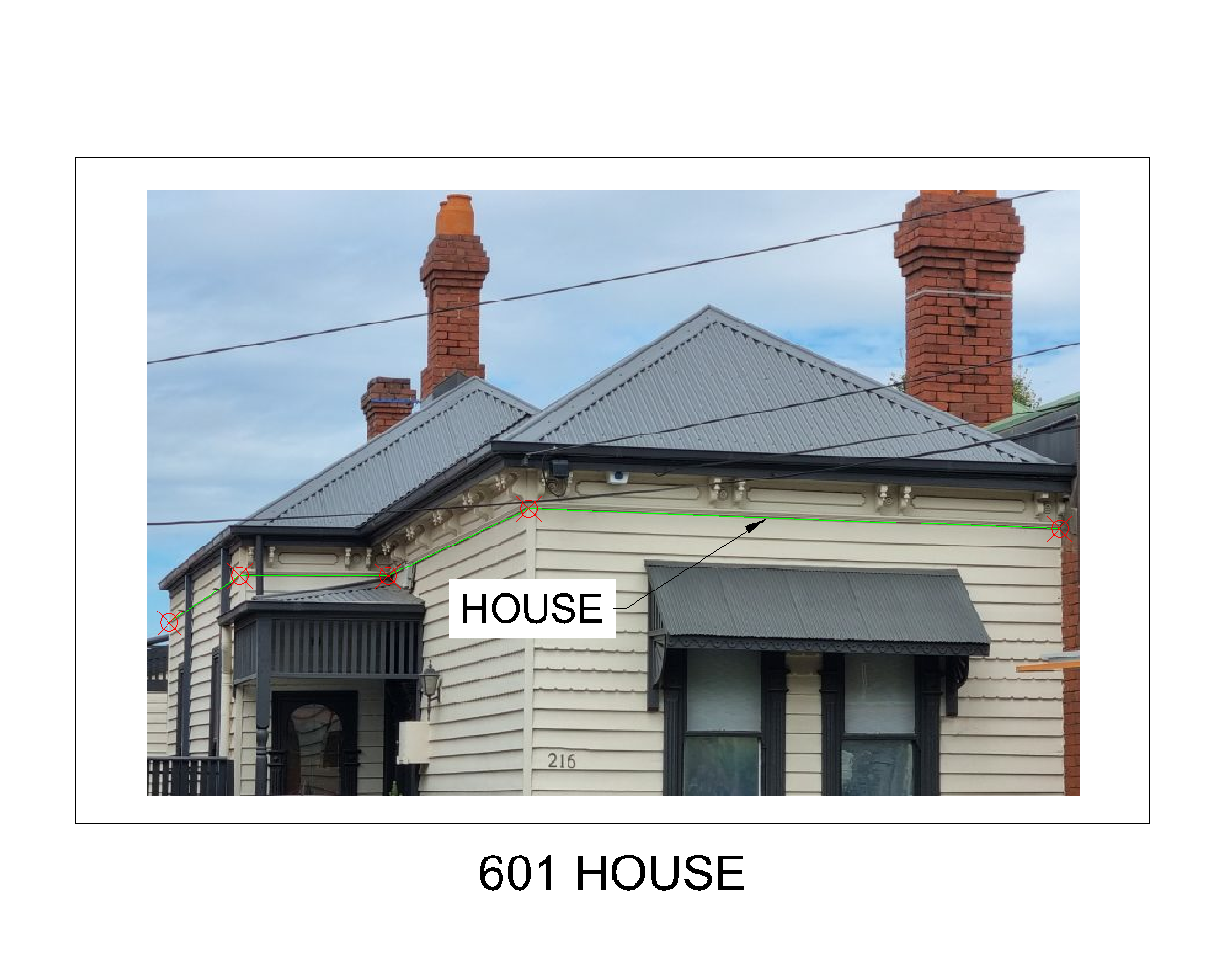

# 601 House
CAD Layer - BUILDING_HOUSE
3D String around the perimeter of a house.
This feature is included as part of the TIN.

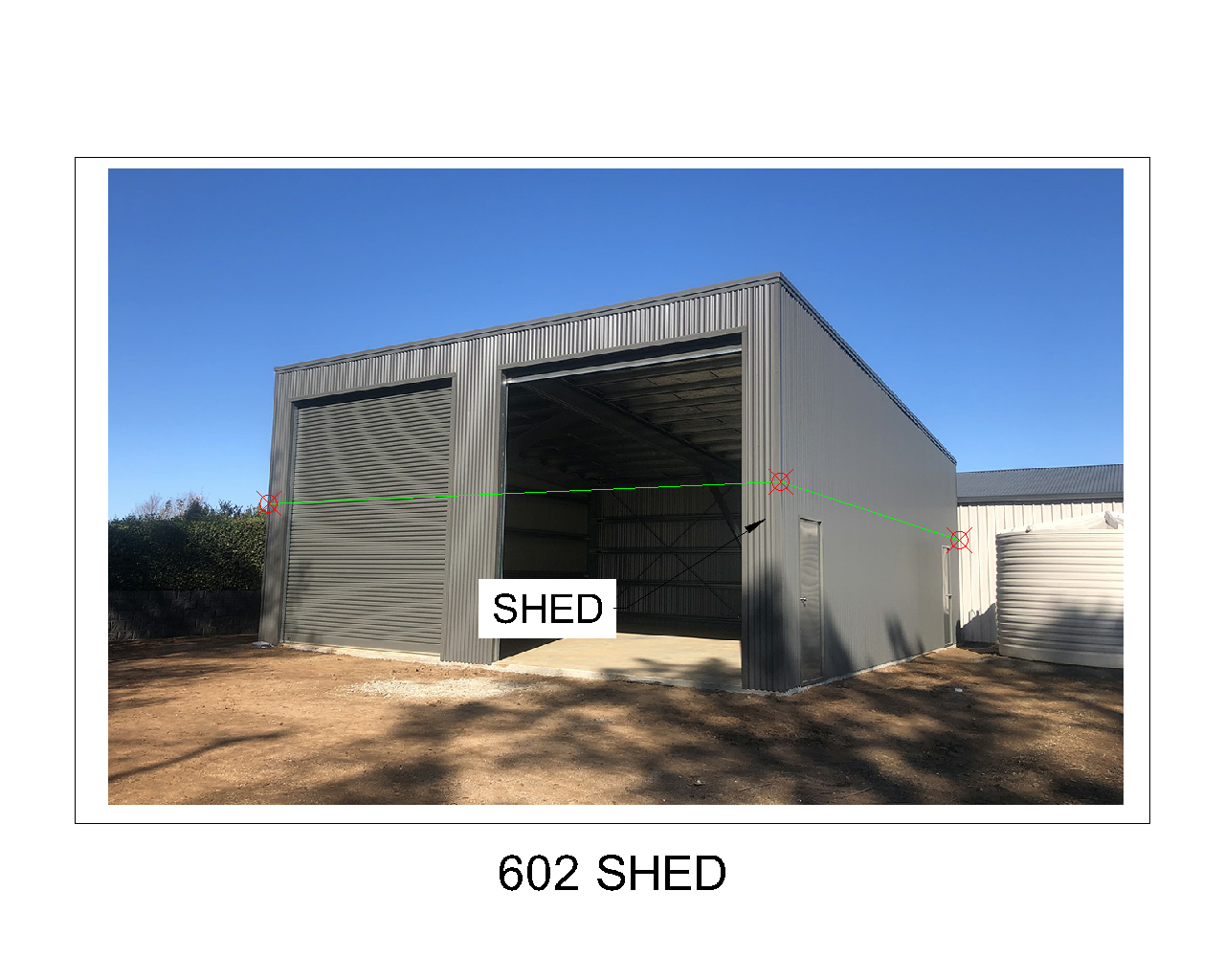

# 602 Shed
CAD Layer - BUILDING_SHED
3D String around the perimeter of a shed.
This feature is included as part of the TIN.

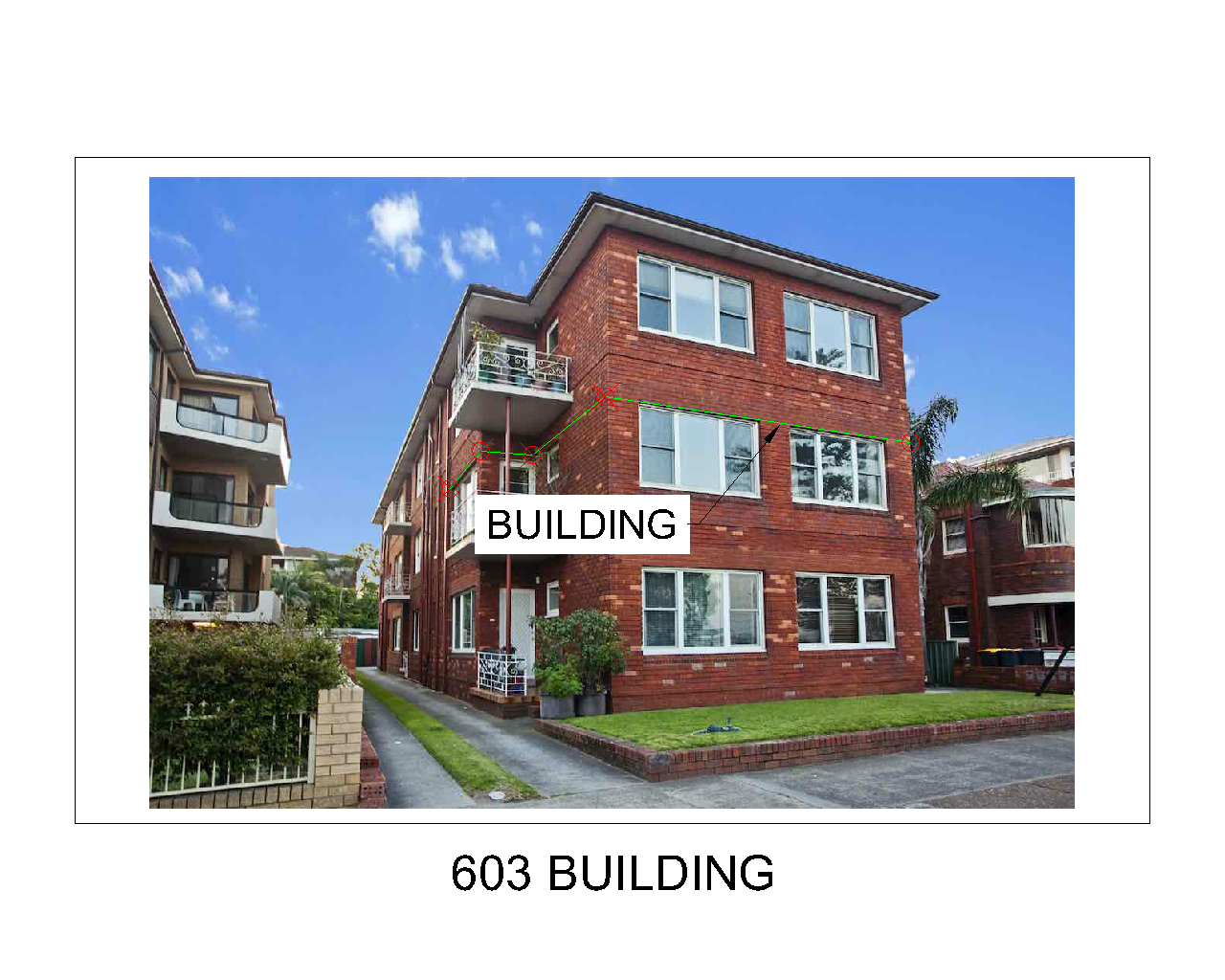

# 603 Building
CAD Layer - BUILDING_BUILDING
3D String around the perimeter of a building.
This feature is included as part of the TIN.

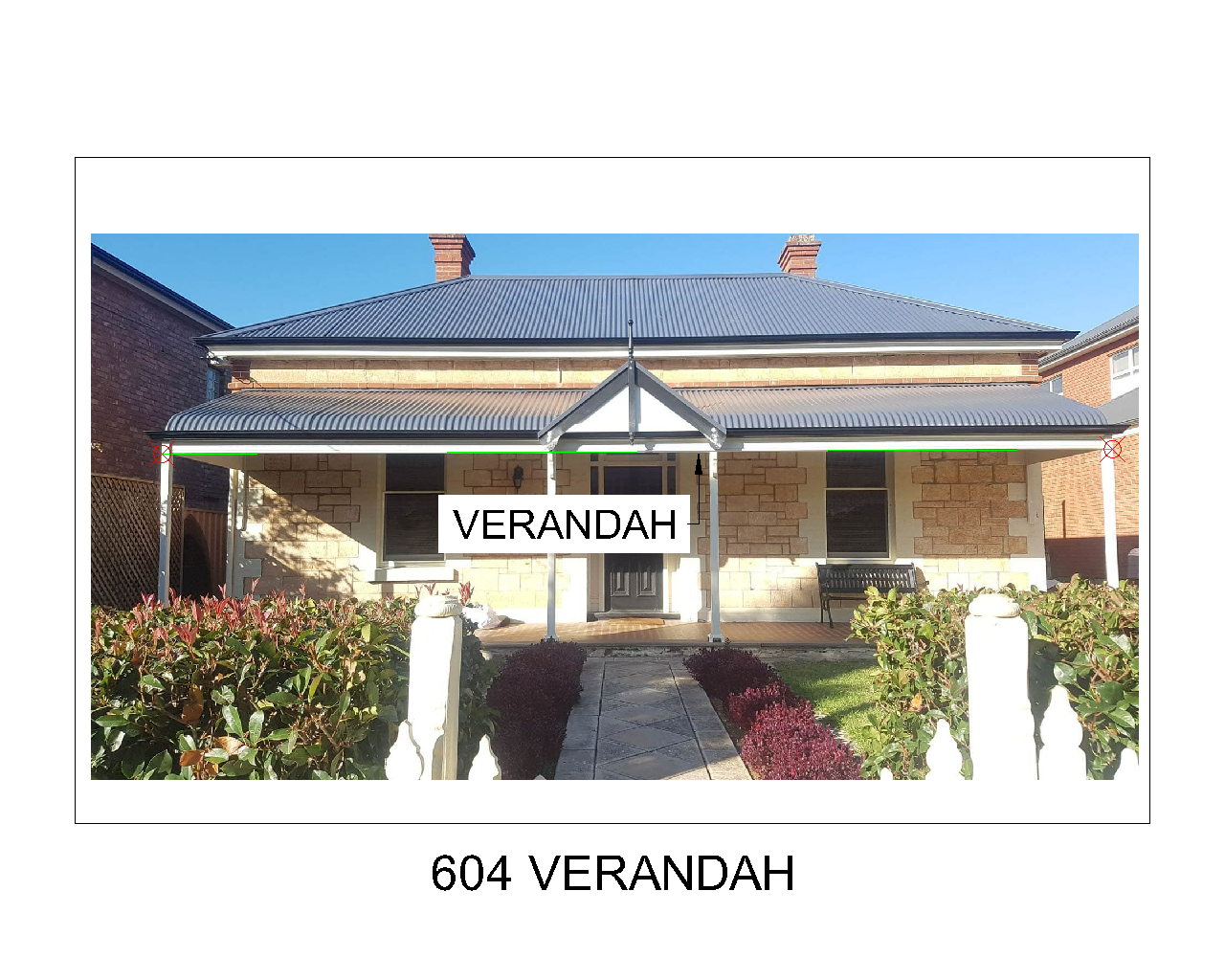

# 604 Verandah
CAD Layer - BUILDING_VERANDAH
3D String around the top edge of a verandah.
This feature is included as part of the TIN.

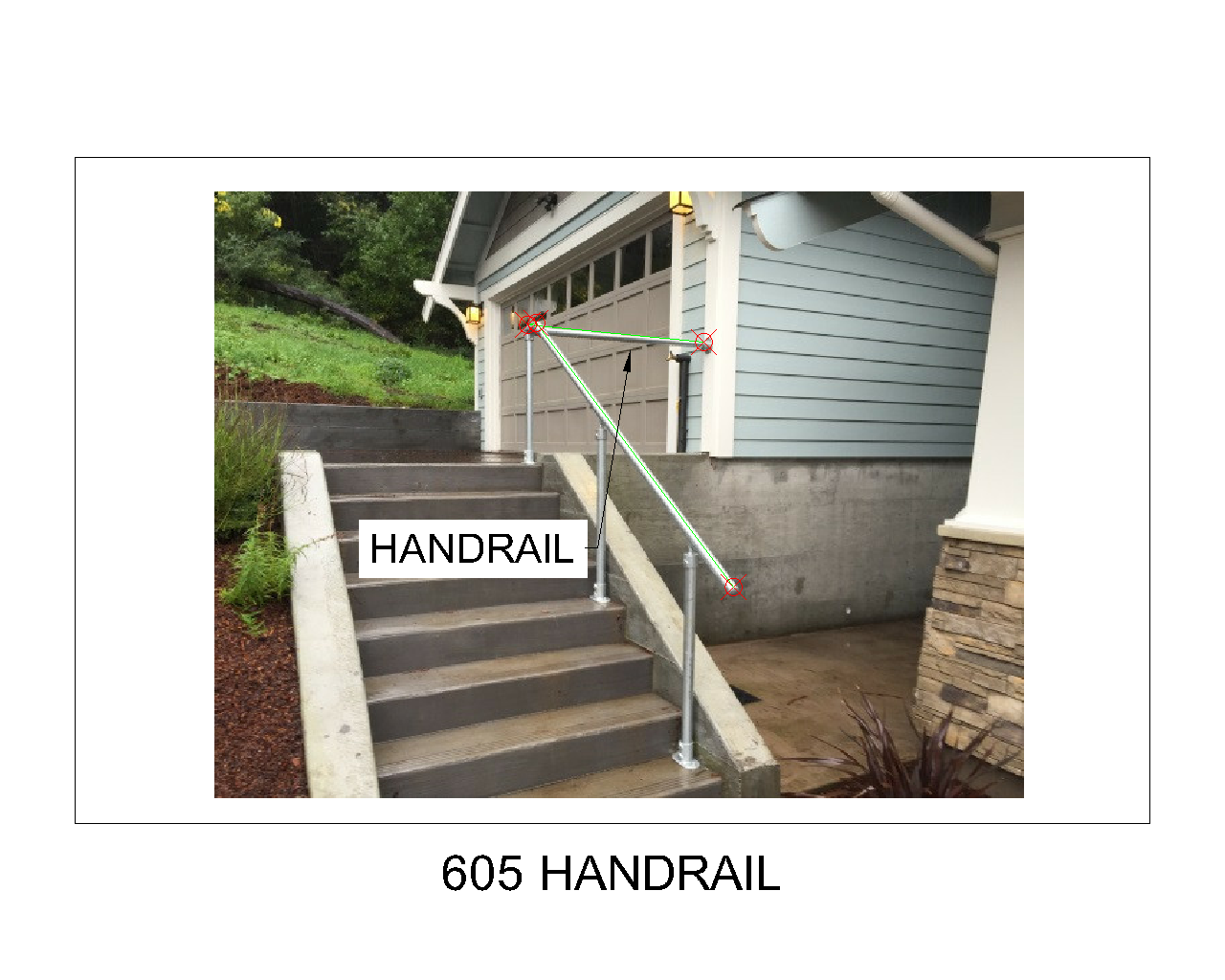

# 605 Handrail
CAD Layer - BUILDING_HANDRAIL
3D String around the top edge of a handrail.
This feature is included as part of the TIN.

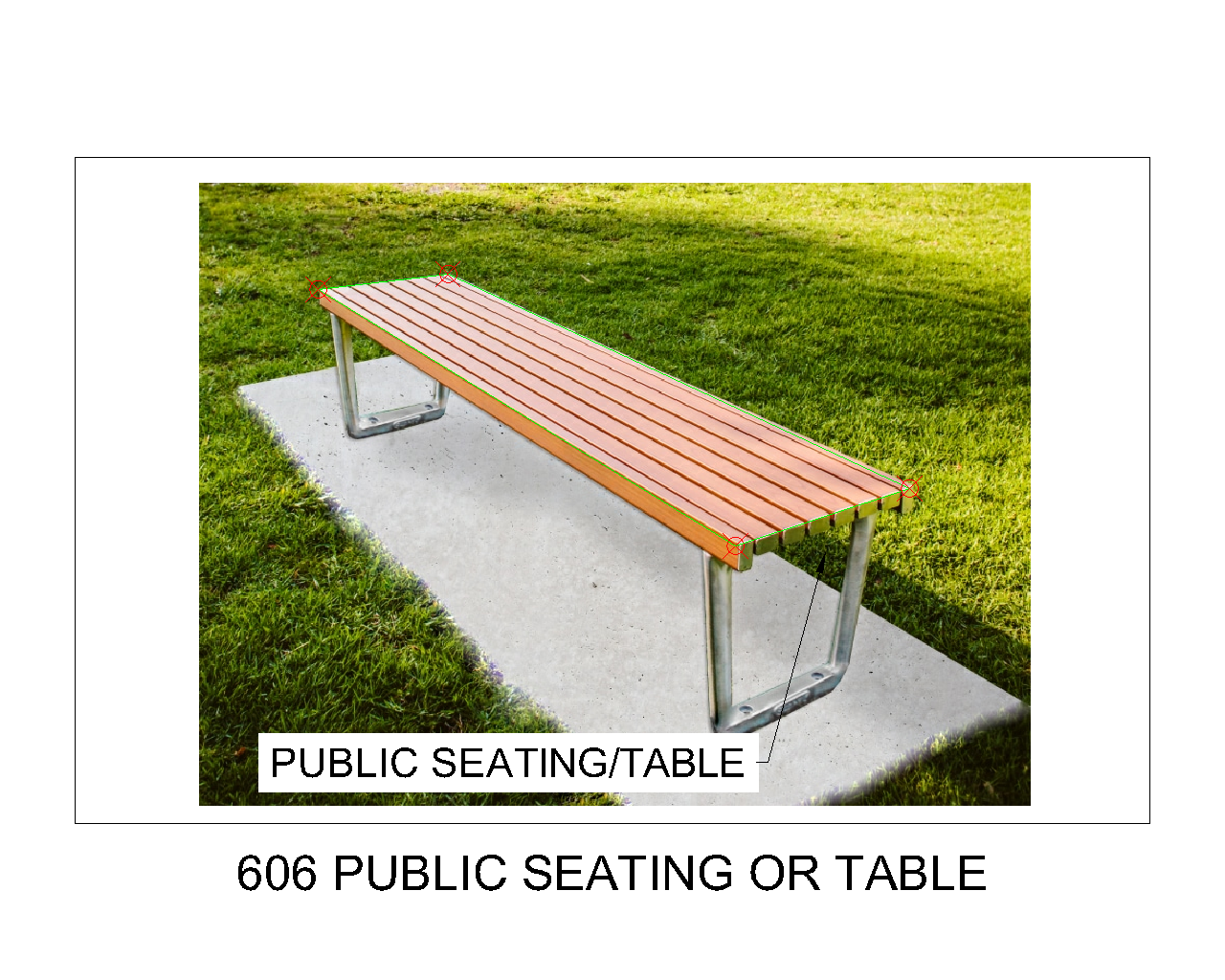

# 606 Public Seating or Table
CAD Layer - BUILDING_SEAT-TABLE
3D String around the edge of a public seat or table.
This feature is included as part of the TIN.

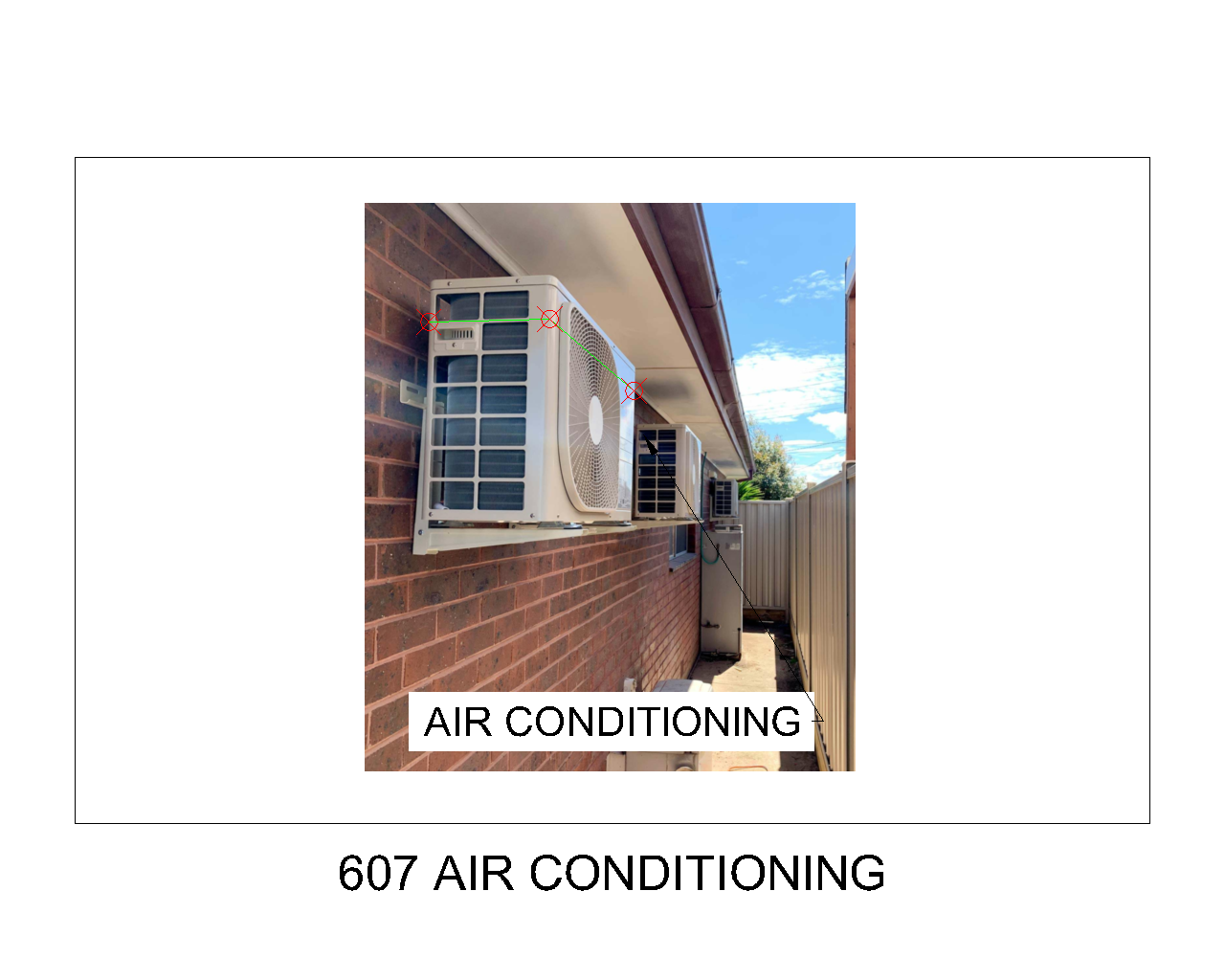

# 607 Air Conditioning
CAD Layer - BUILDING_AIRCON
3D String around the perimeter of an air conditioning unit.
This feature is included as part of the TIN.

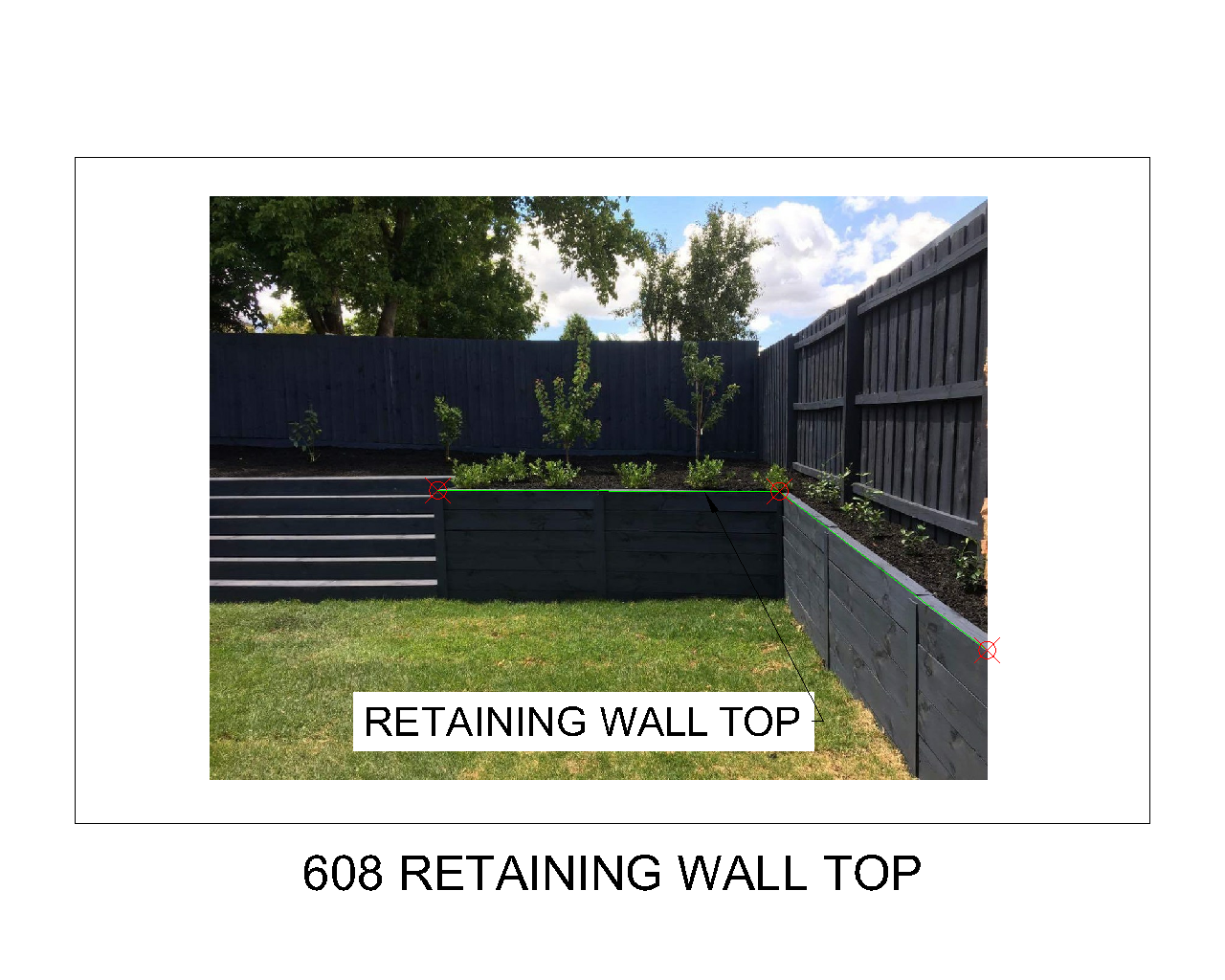

# 608 Retaining Wall Top
CAD Layer - STRUCTURES_RETAINING_WALL_TOP
3D String along the top of any retaining wall.
This feature is included as part of the TIN.
# 609 Retaining Wall Toe
CAD Layer - STRUCTURES_RETAINING_WALL_TOE
3D String along the toe of any retaining wall.
This feature is included as part of the TIN.

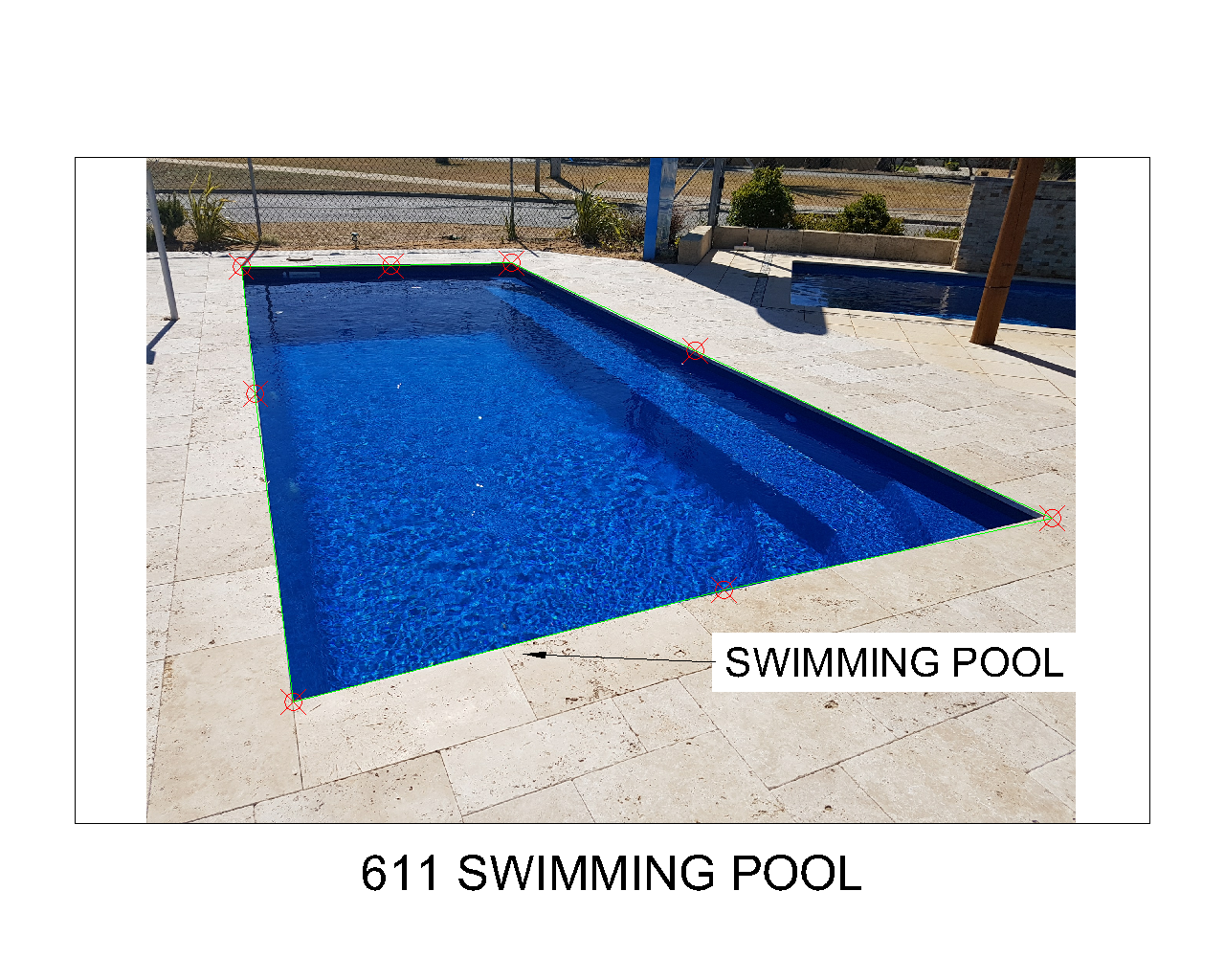

# 611 Swimming Pool
CAD Layer - BUILDING_SWIMMING_POOL
3D String along perimeter of a swimming pool.
This feature is included as part of the TIN.

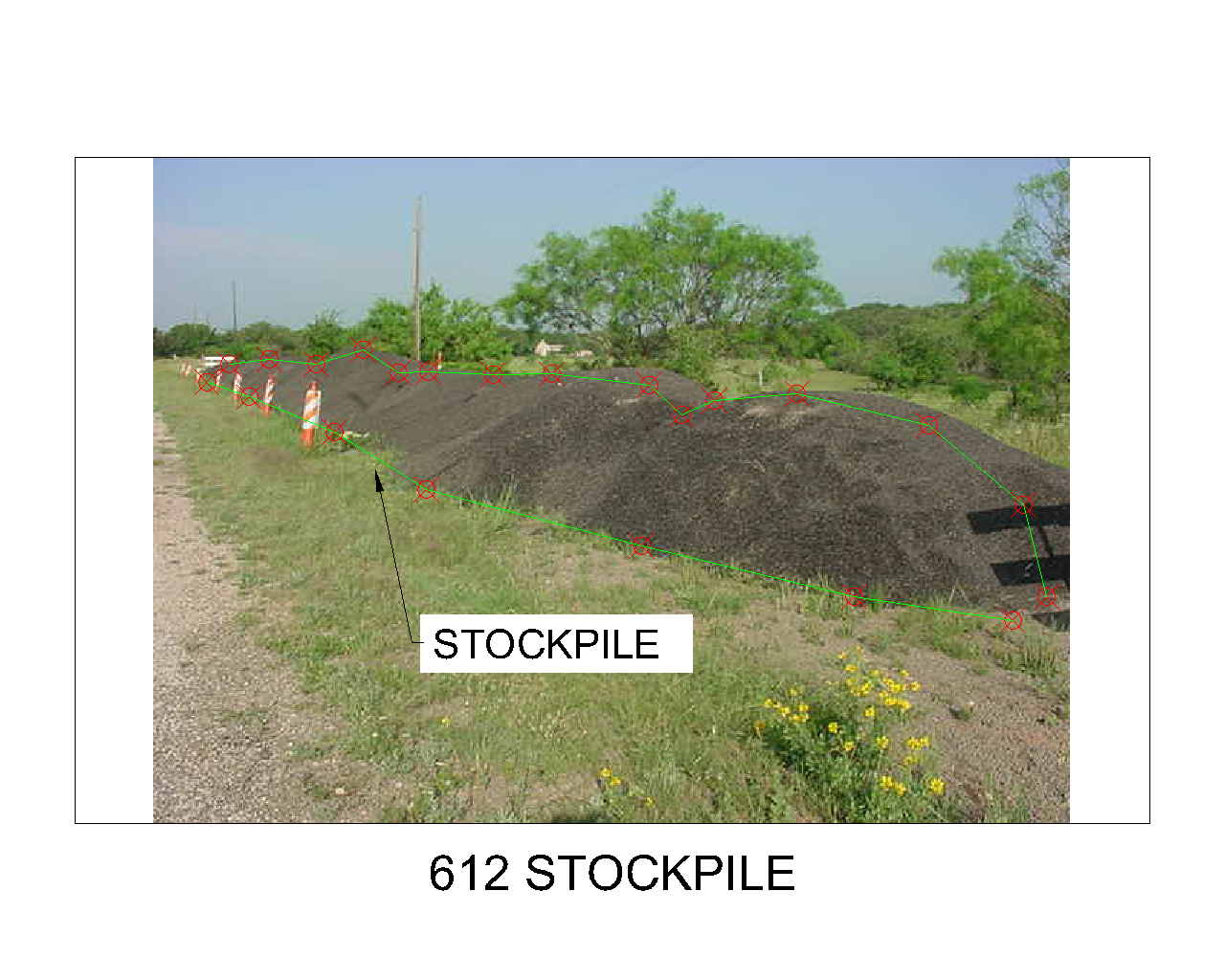

# 612 Stockpile
CAD Layer - BUILDING_STOCKPILE
3D String along top and toe of a stockpile.
This feature is included as part of the TIN.

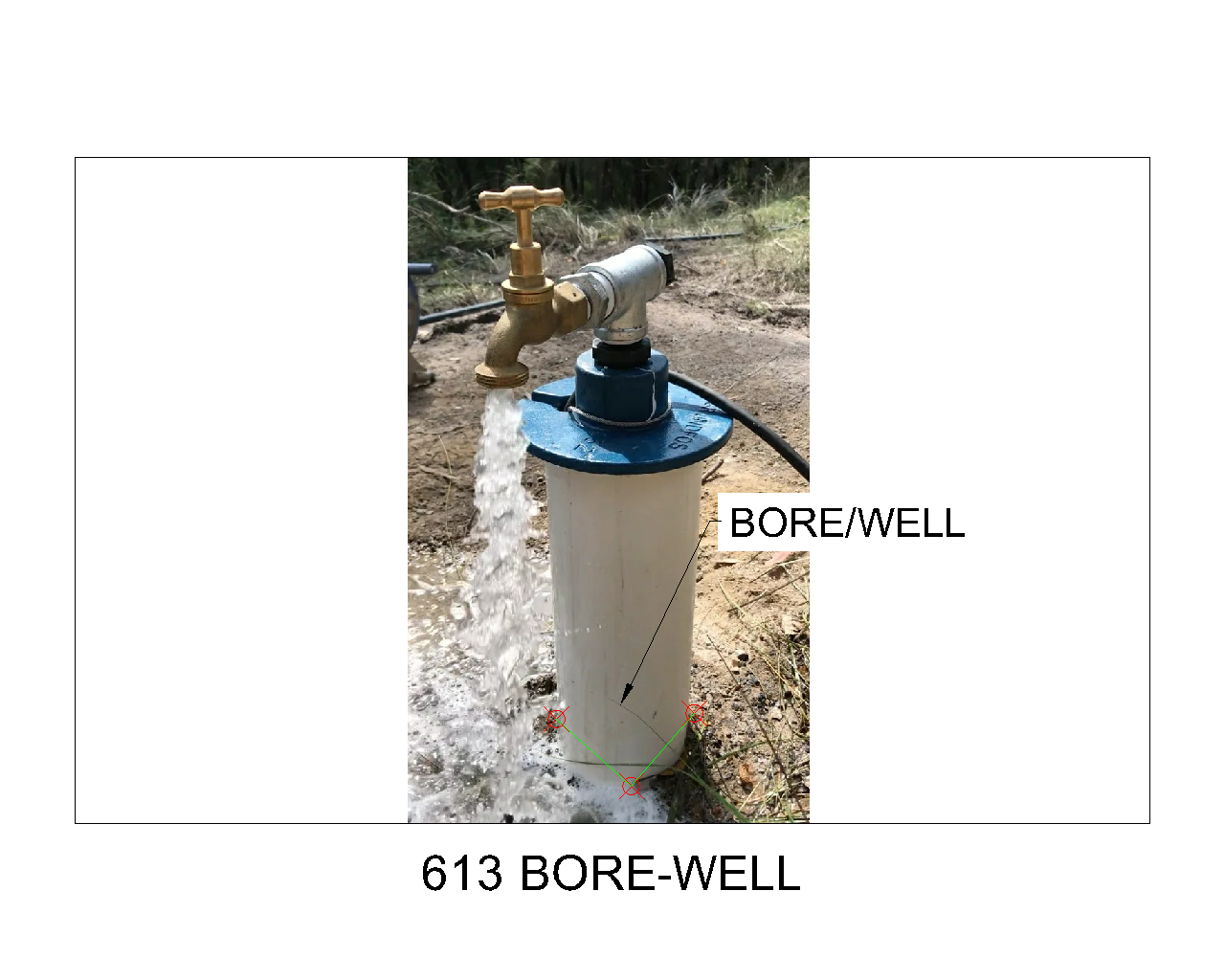

# 613 Bore/Well
CAD Layer - BUILDING_BORE_WELL
3D String of three points around the base of the bore or well.
This feature is included as part of the TIN.

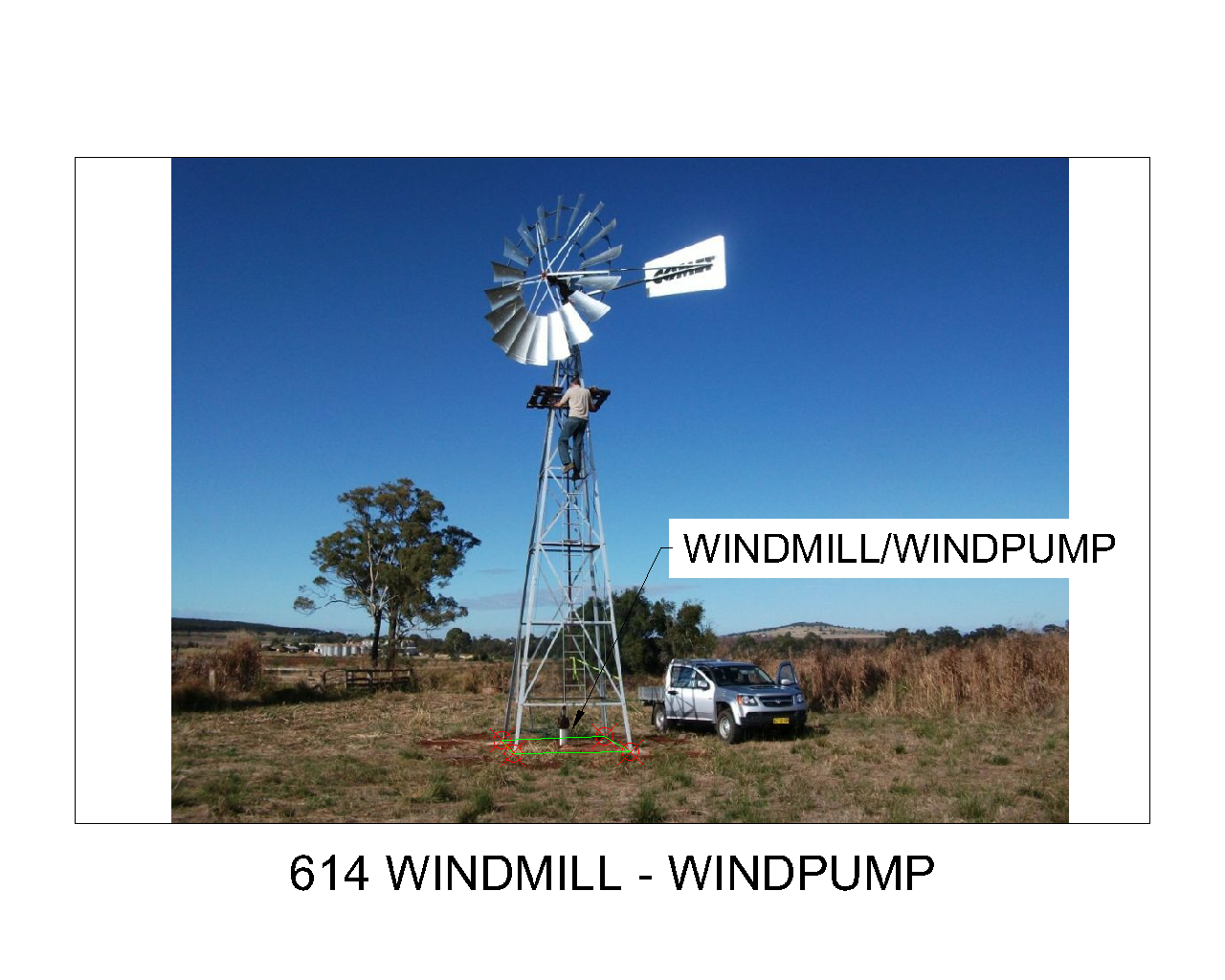

# 614 Windmill/Windpump
CAD Layer - BUILDING_WINDMILL_WINDPUMP
3D String of three points around the base of the windmill or windpump.
This feature is included as part of the TIN.

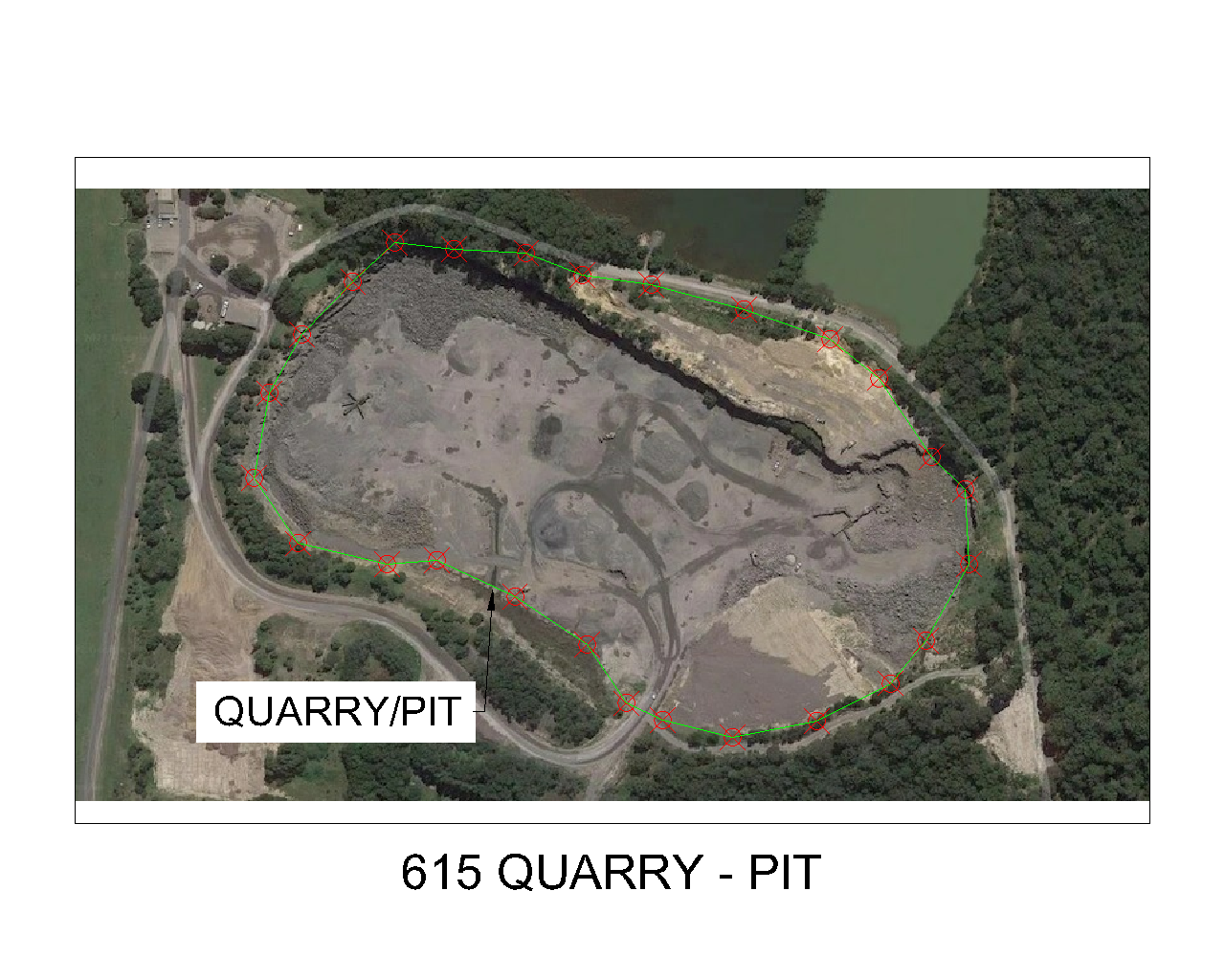

# 615 Quarry/Pit
CAD Layer - BUILDING_QUARRY_PIT
3D String around the perimeter of a quarry or pit.
This feature is included as part of the TIN.

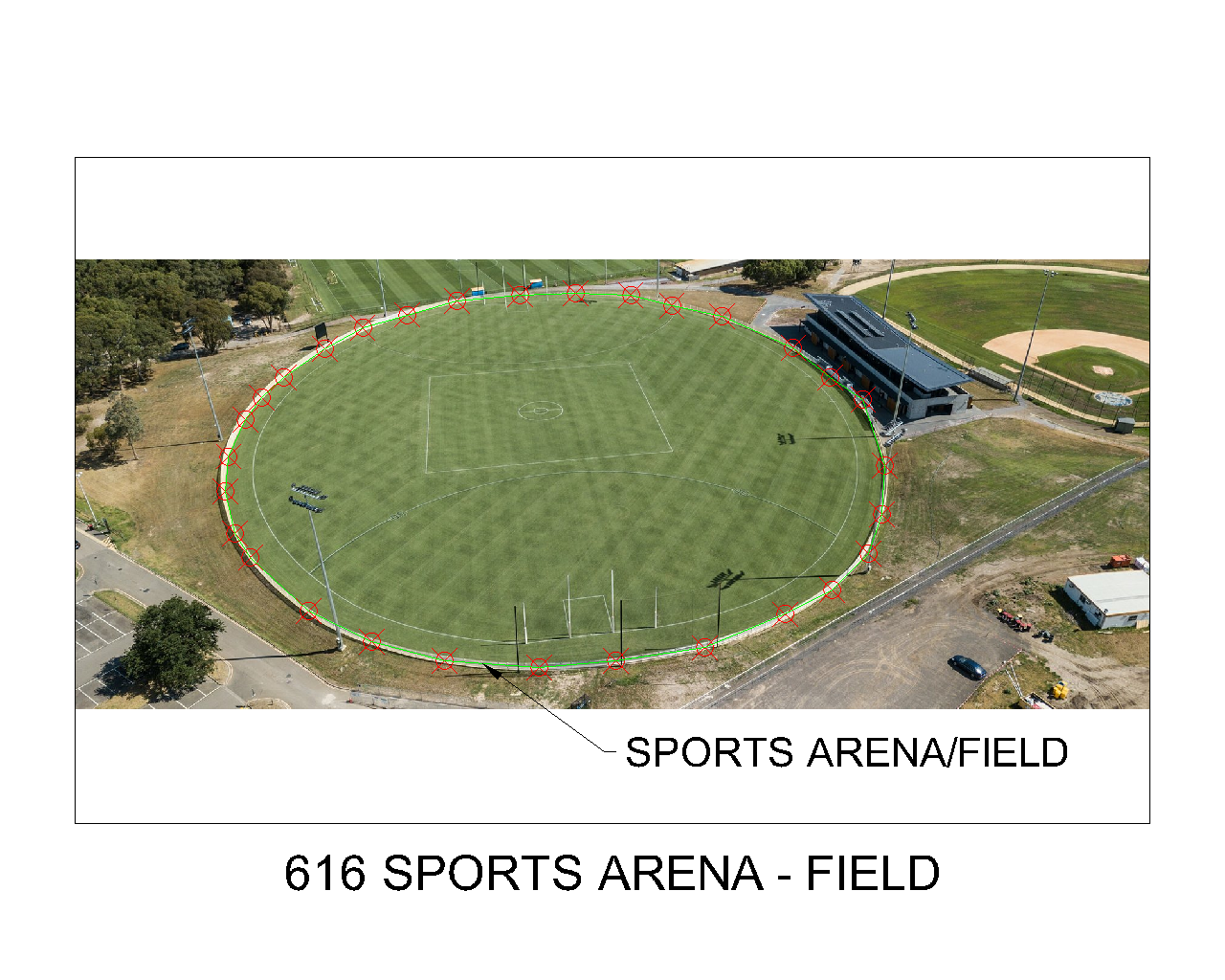

# 616 Sports Arena/Field
CAD Layer - BUILDING_SPORTS_ARENA_FIELD
3D String around the perimeter of a sports arena or field.
This feature is included as part of the TIN.

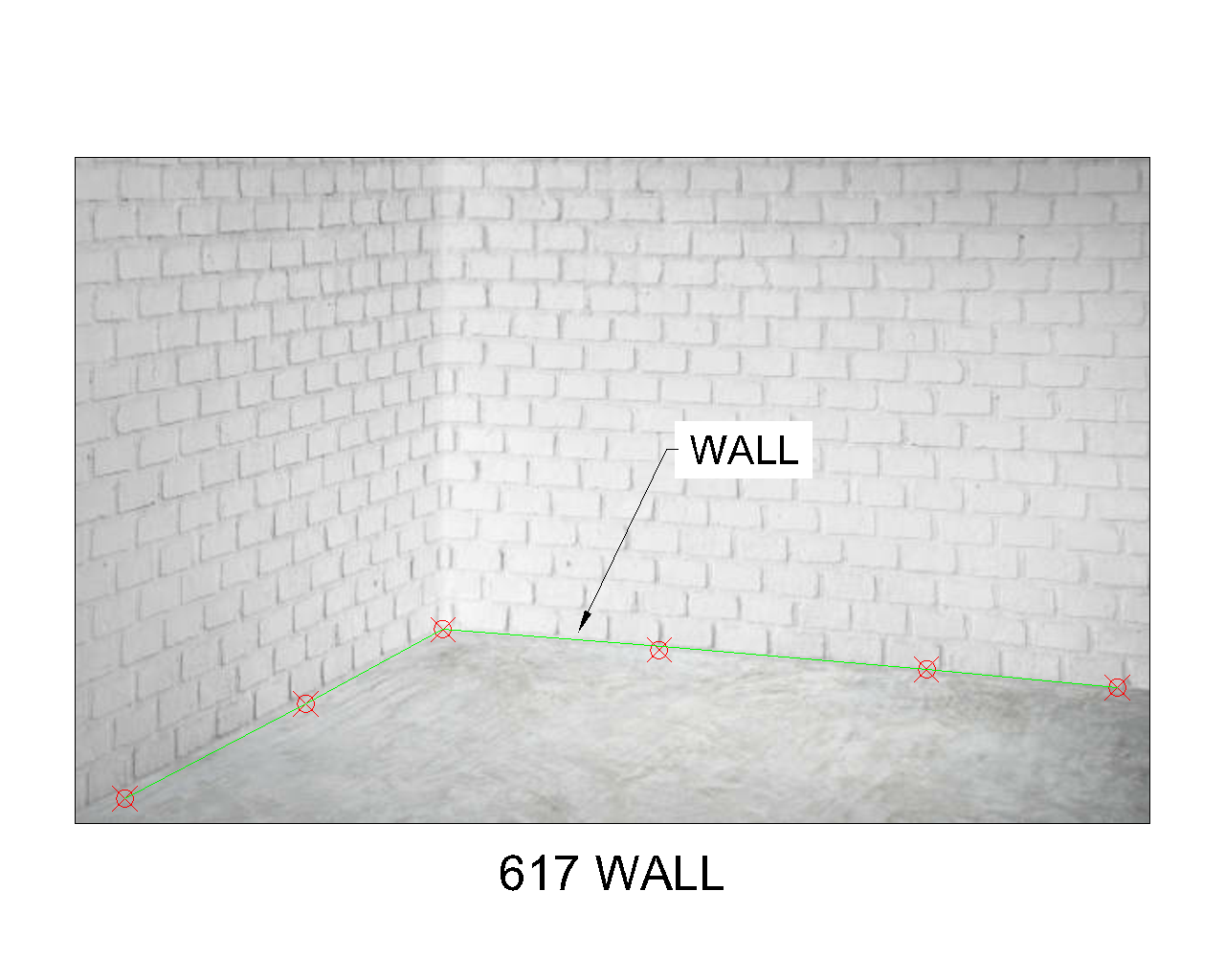

# 617 Wall
CAD Layer - BUILDING_WALL
3D String along the base of a wall.
This feature is included as part of the TIN.

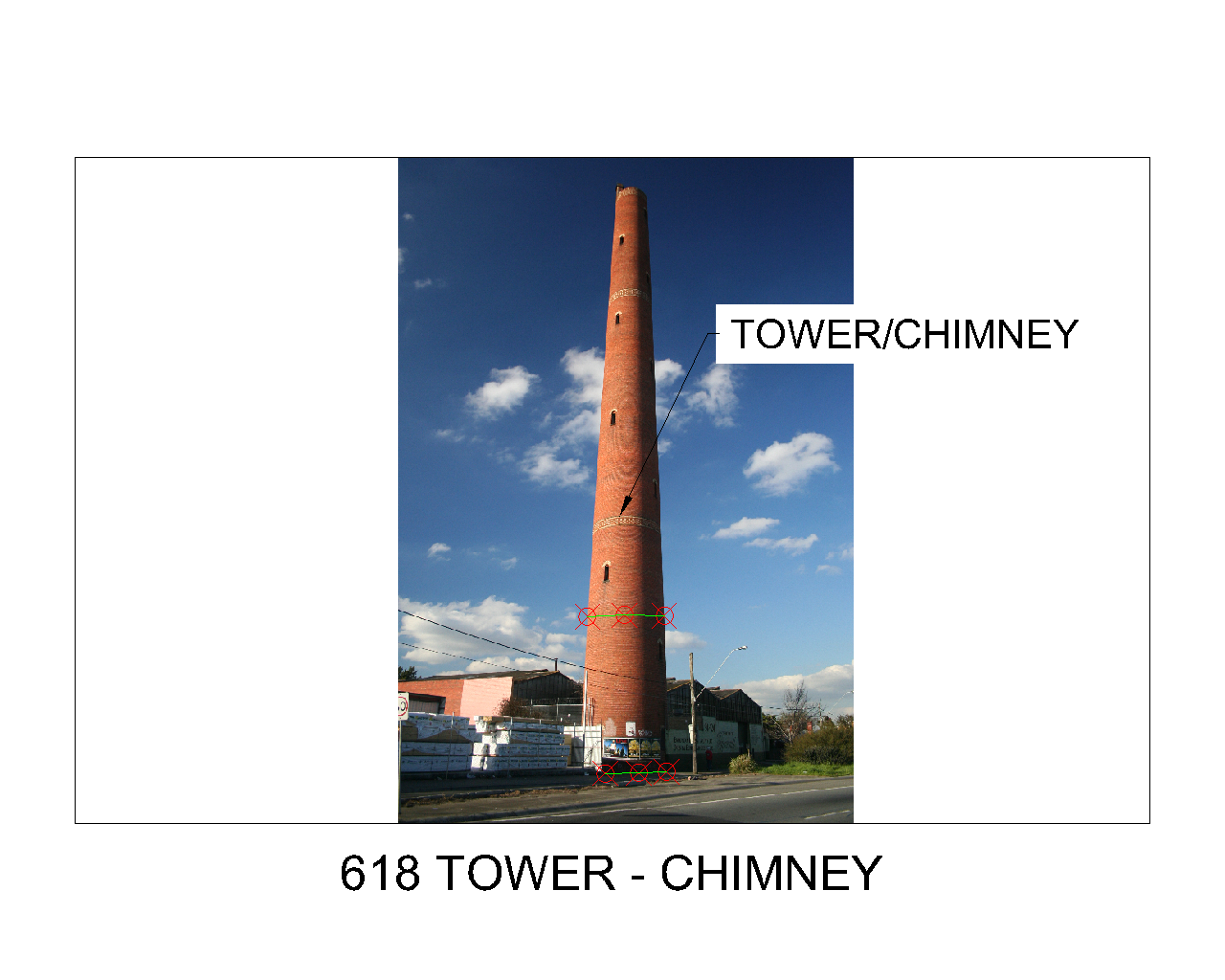

# 618 Tower/Chimney
CAD Layer - BUILDING_TOWER_CHIMNEY
3D String around perimeter of a tower or chimney.
This feature is included as part of the TIN.

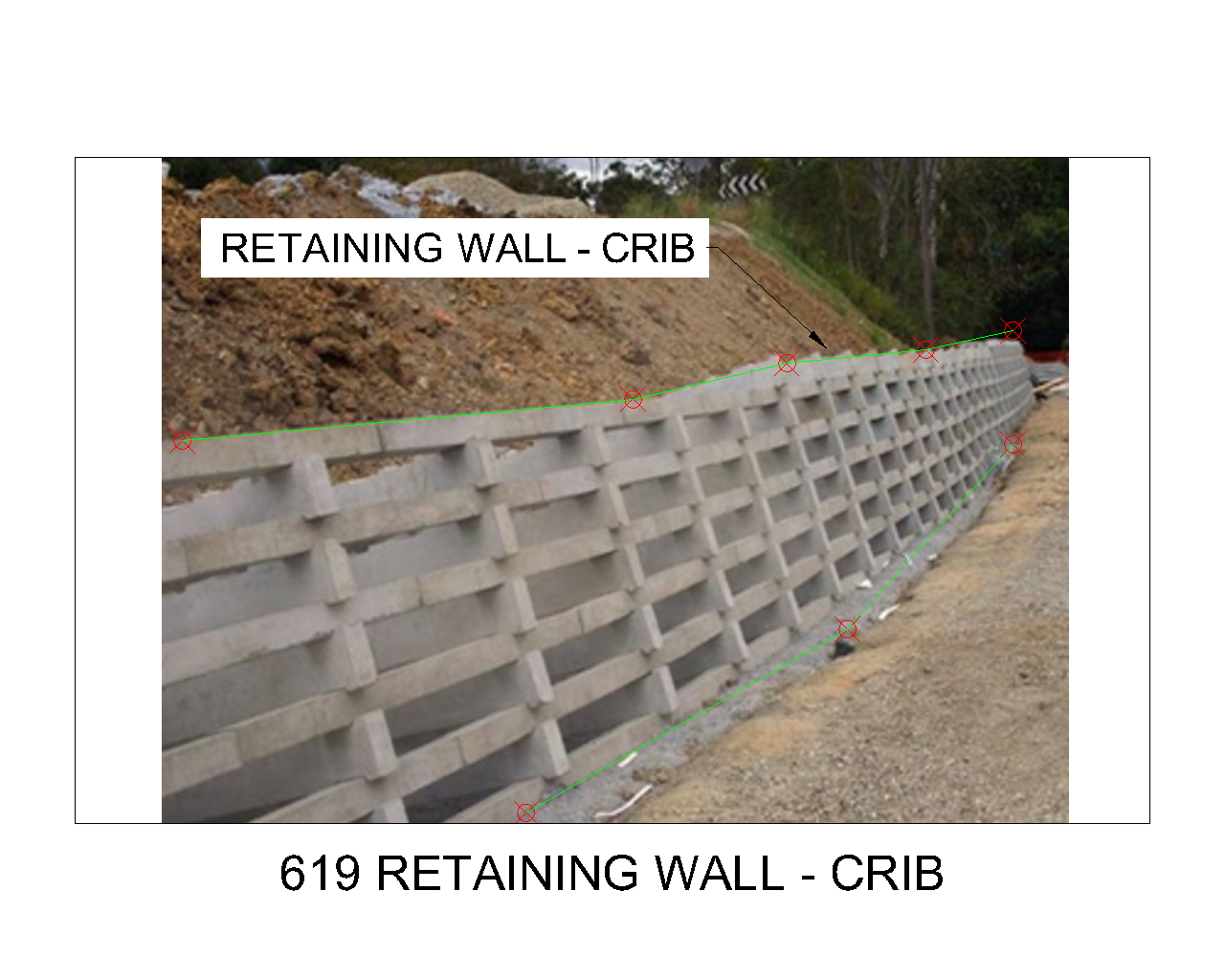

# 619 Retaining Wall - Crib
CAD Layer - BUILDING_RETAINING_WALL_CRIB
3D String along the top and toe of a crib retaining wall.
This feature is included as part of the TIN.

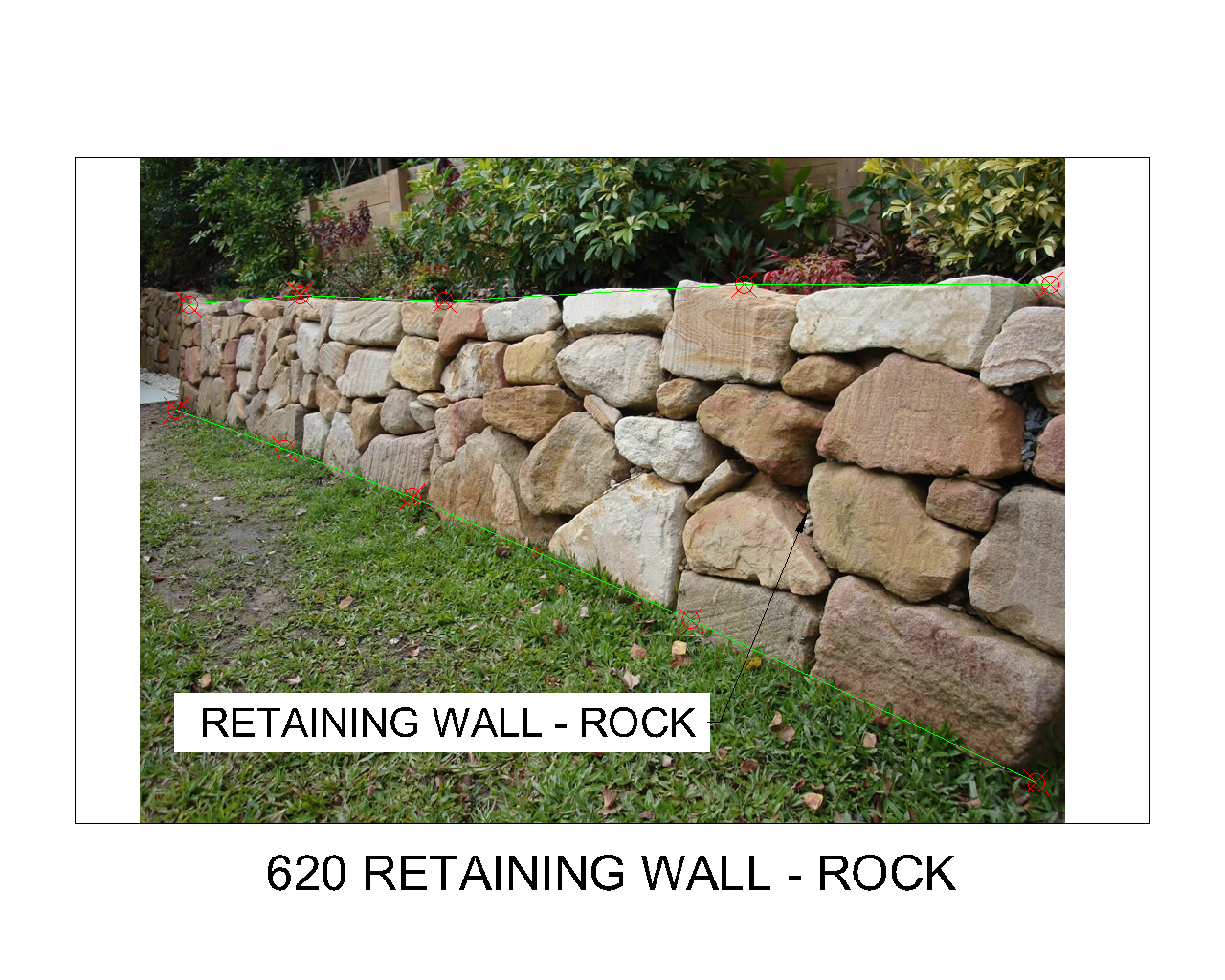

# 620 Retaining Wall - Rock
CAD Layer - BUILDING_RETAINING_WALL_ROCK
3D String along the top and toe of a rock retaining wall.
This feature is included as part of the TIN.

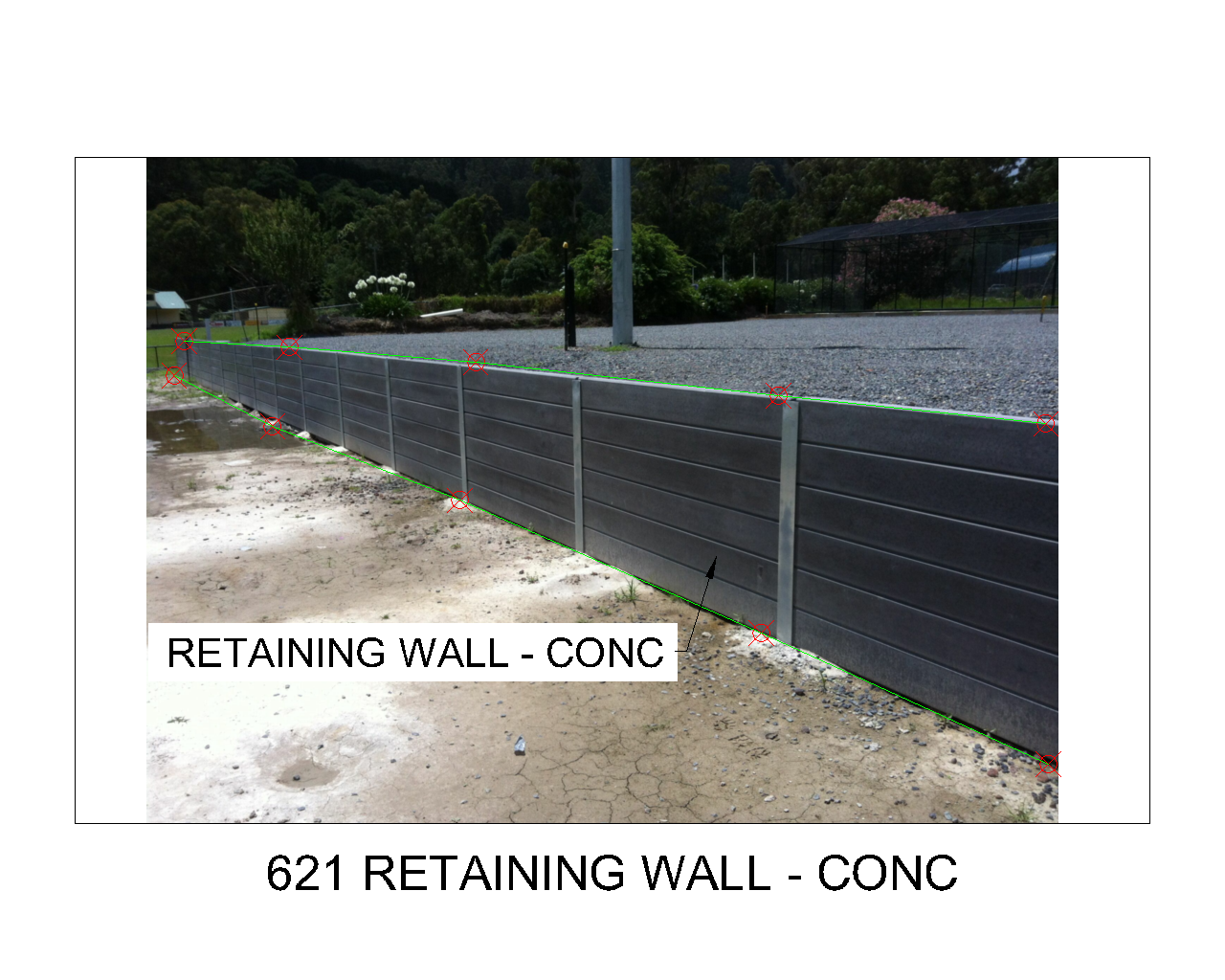

# 621 Retaining Wall - Conc
CAD Layer - BUILDING_RETAINING_WALL_CONC
3D String along the top and toe of a concrete retaining wall.
This feature is included as part of the TIN.

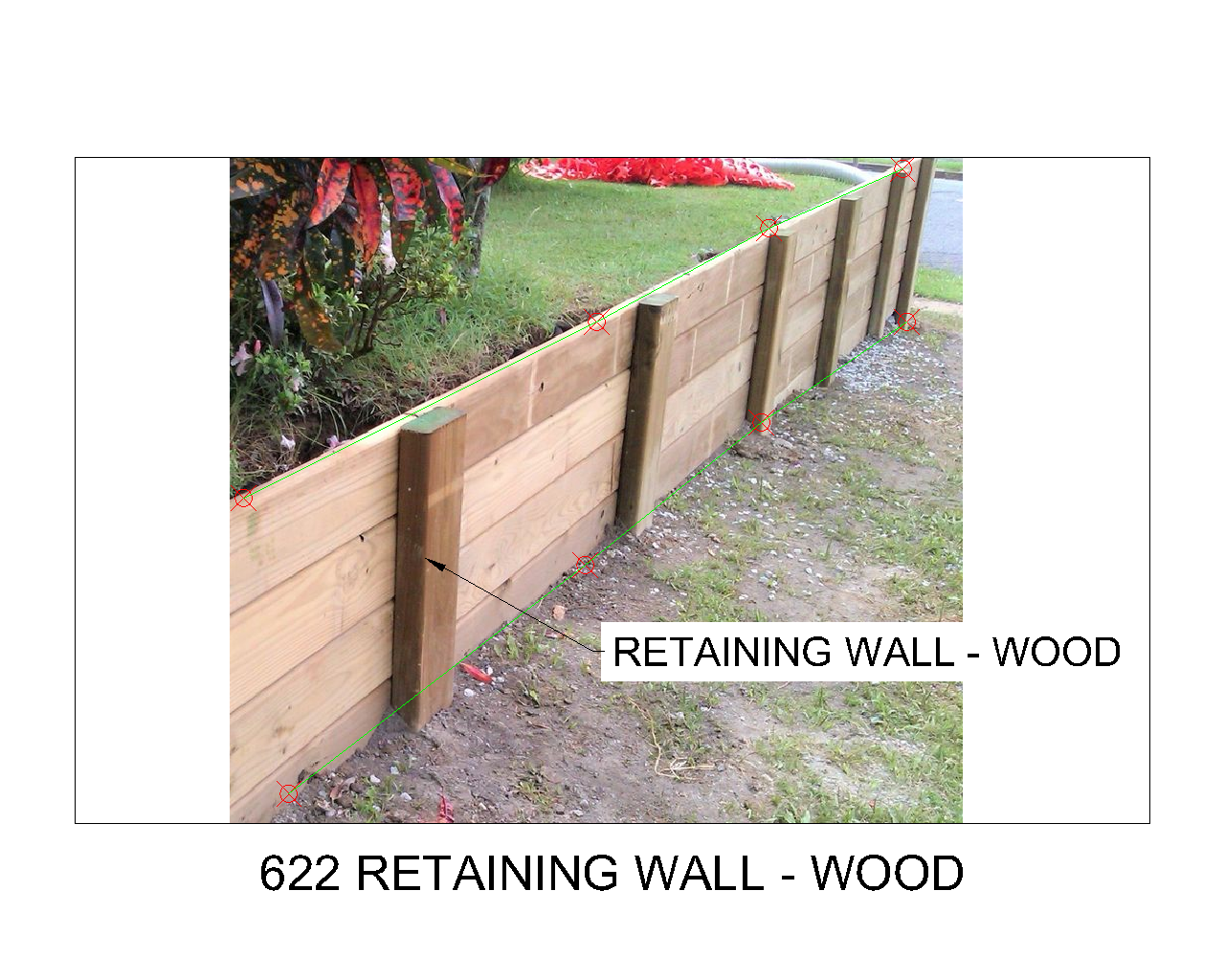

# 622 Retaining Wall - Wood
CAD Layer - BUILDING_RETAINING_WALL_CONC
3D String along the top and toe of a wood retaining wall.
This feature is included as part of the TIN.

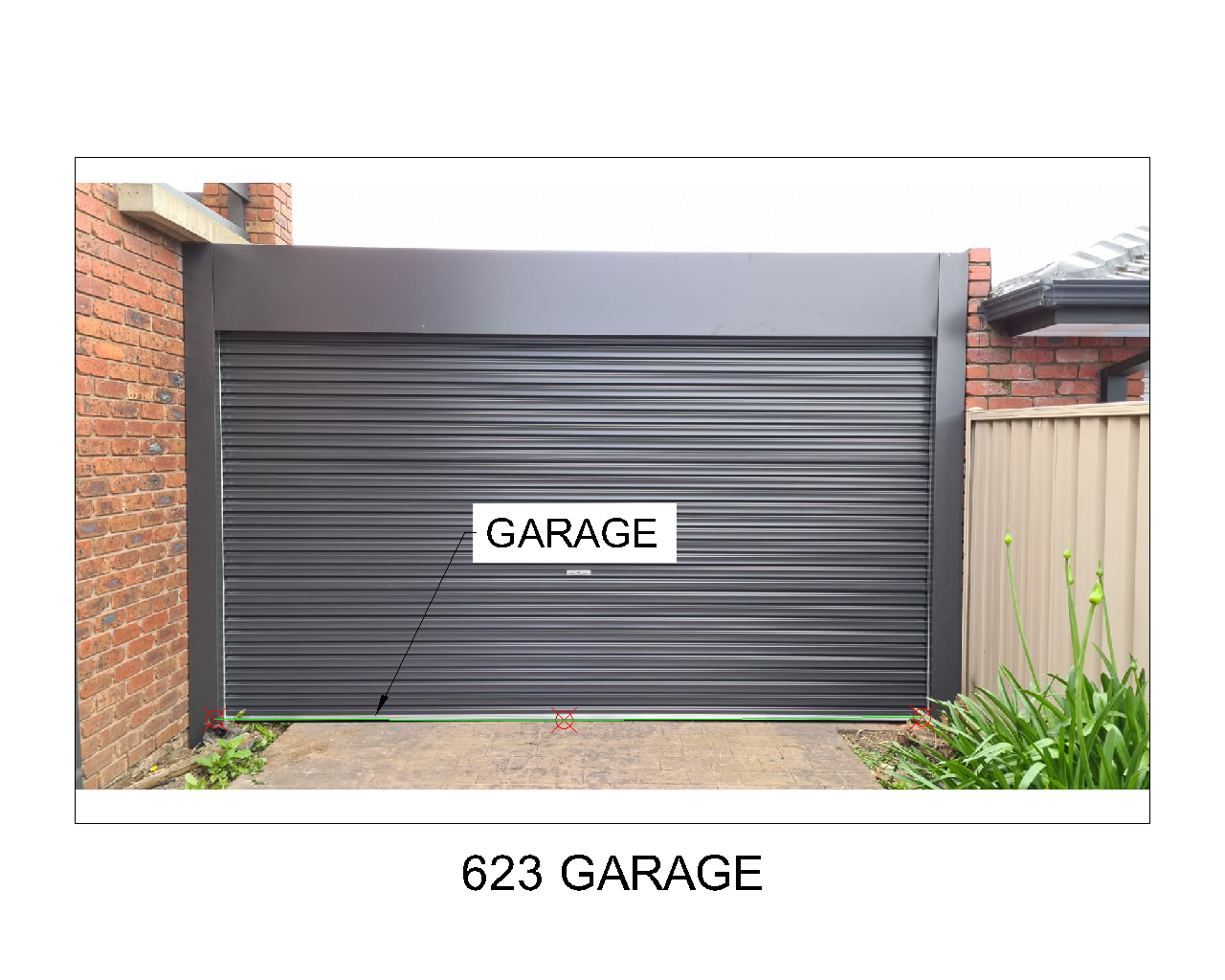

# 623 Garage
CAD Layer - BUILDING_GARAGE
3D String along the base of a garage.
This feature is included as part of the TIN.

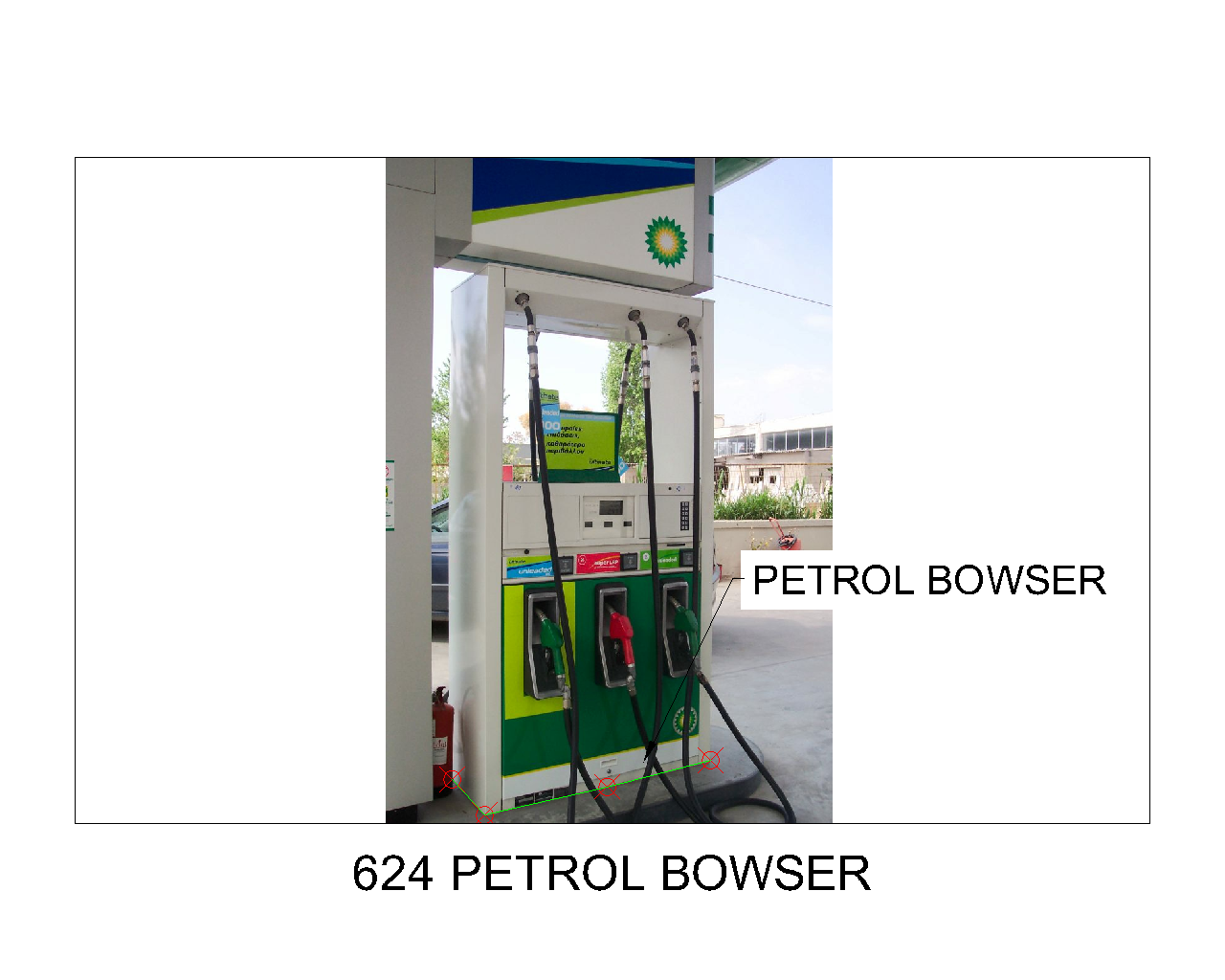

# 624 Petrol Bowser
CAD Layer - FUEL_PETROL_BOWSER
3D String along the base of a petrol bowser or pump.
This feature is included as part of the TIN.

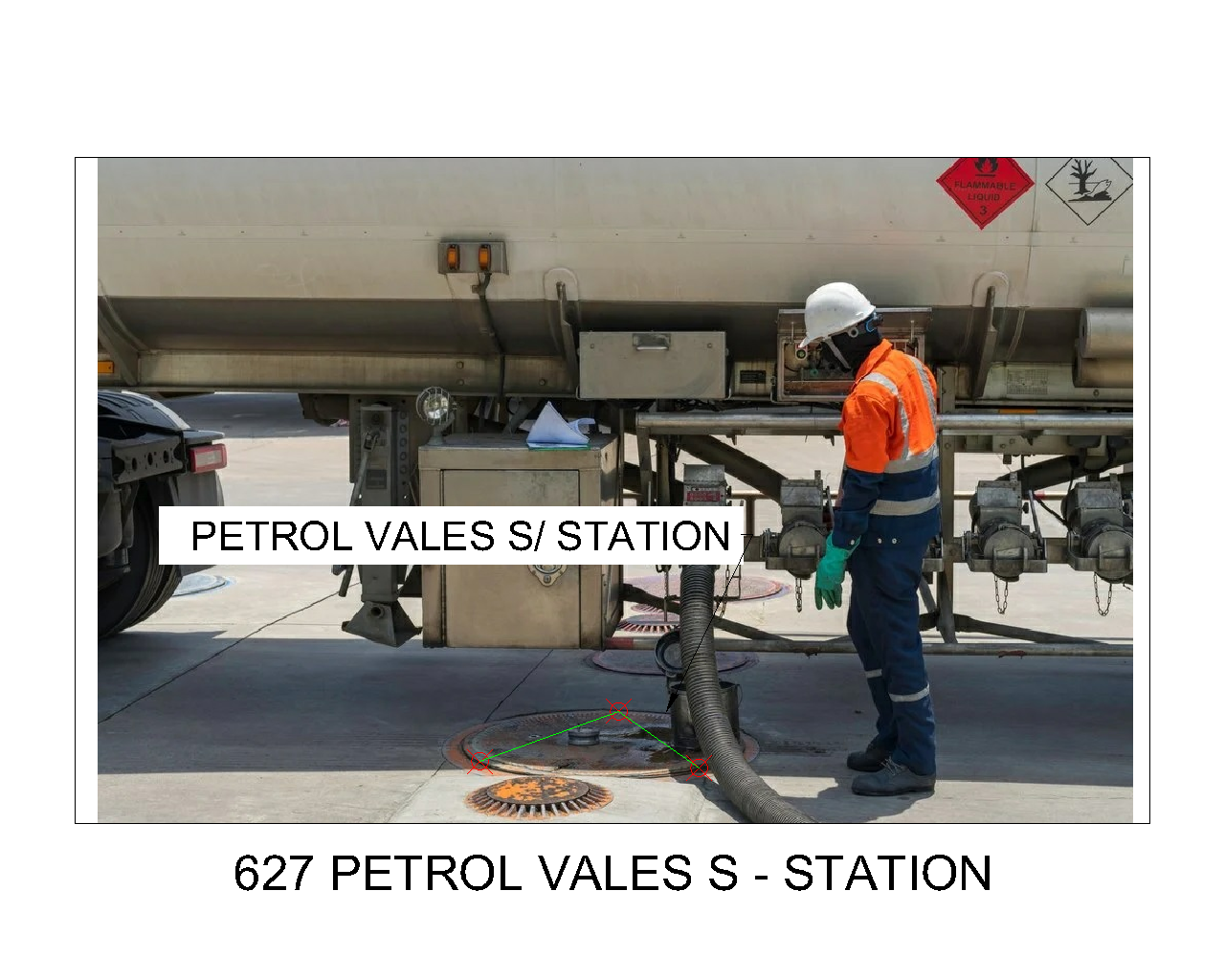

# 627 Petrol Valve S/Station
CAD Layer - FUEL_PETROL_VALVE_S_STATION
3D String of three points around the edge of a petrol valve or station.
This feature is included as part of the TIN.

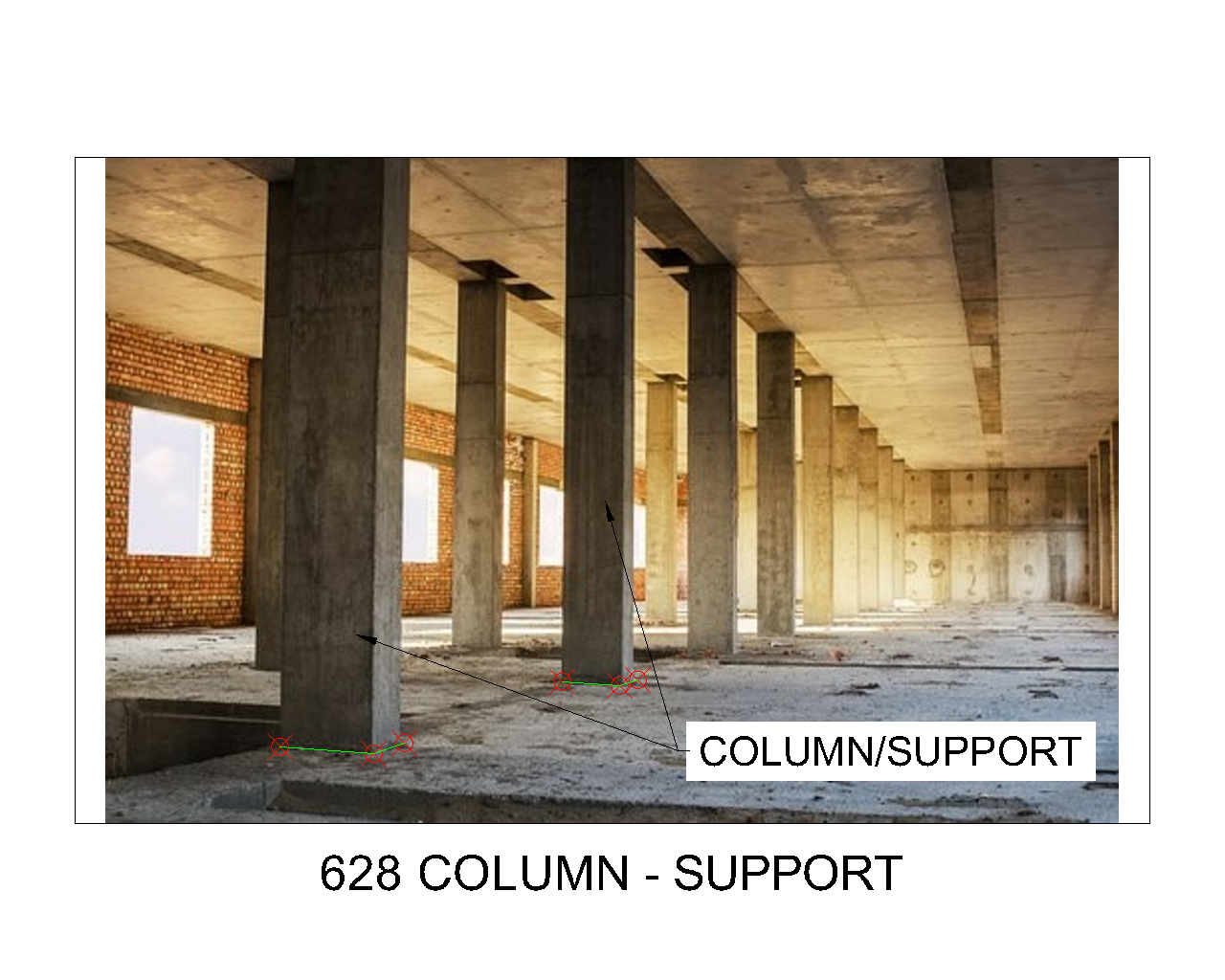

# 628 Column/Support
CAD Layer - STRUCTURES_COLUMN_SUPPORT
3D String around the base of a column or support.
This feature is included as part of the TIN.

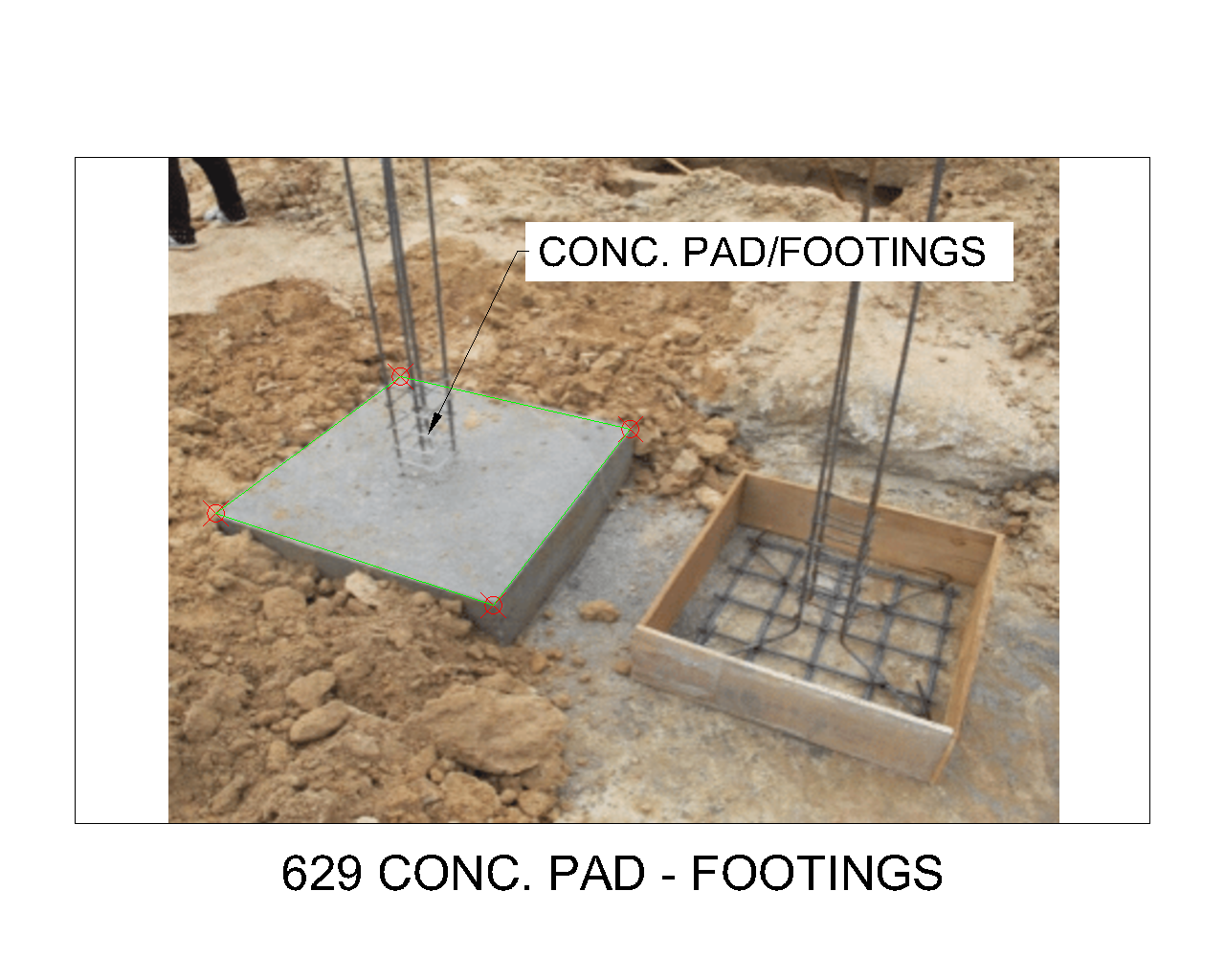

# 629 Conc. Pad/Footings
CAD Layer - STRUCTURES_CONC_PAD_FOOTINGS
3D String around the edge of a concrete pad or footing.
This feature is included as part of the TIN.

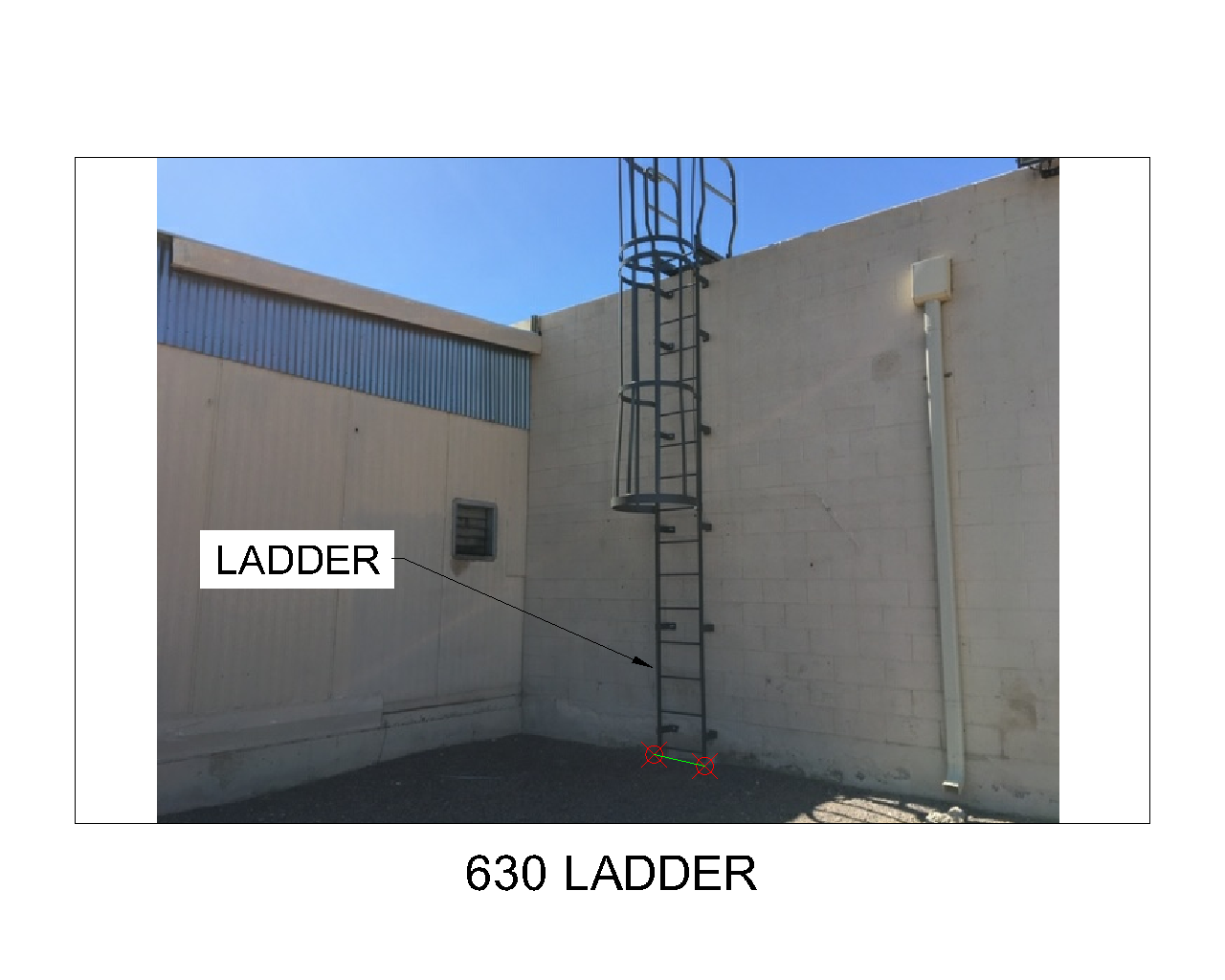

# 630 Ladder
CAD Layer - BUILDING_LADDER
3D String along the base width of a ladder.
This feature is included as part of the TIN.

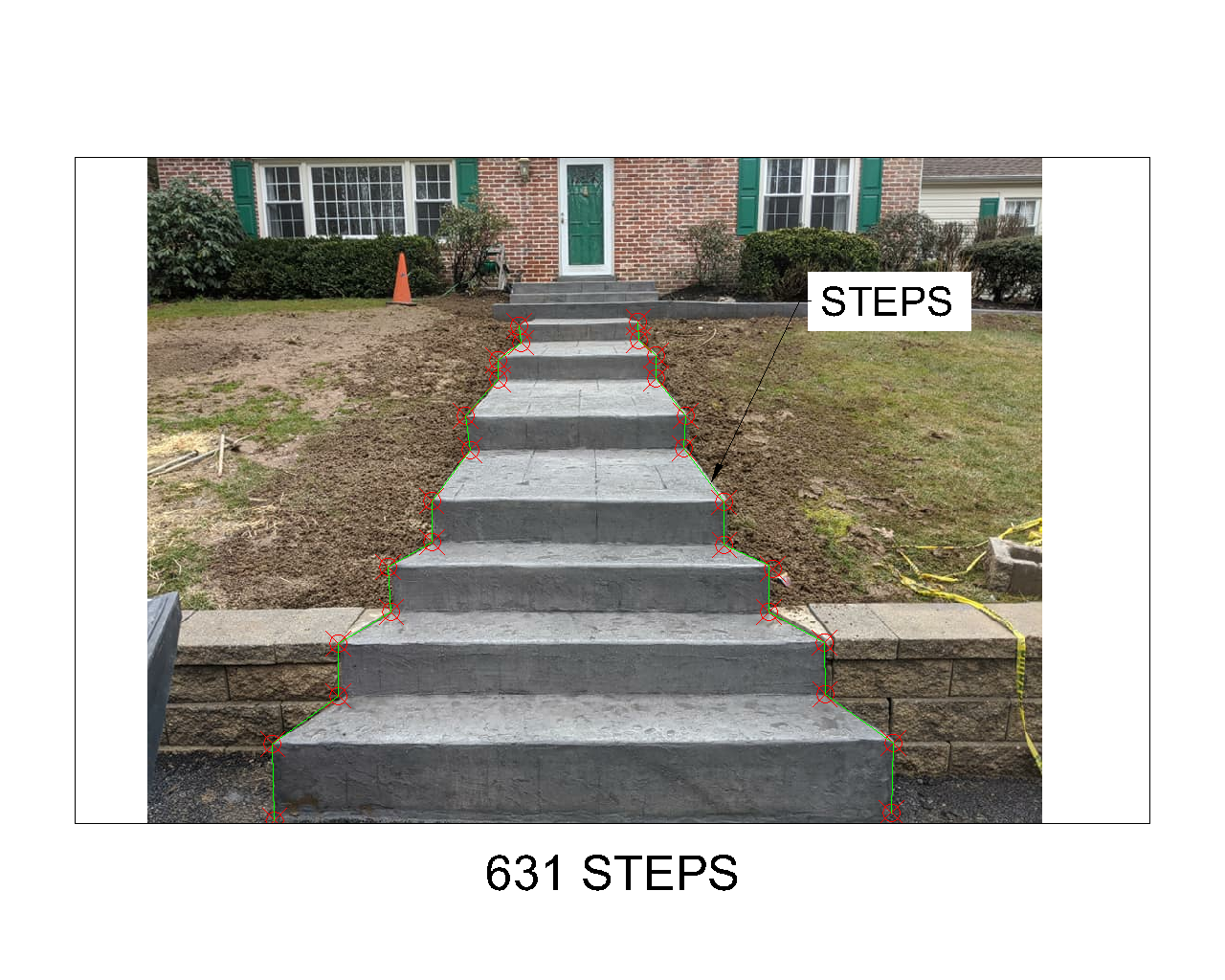

# 631 Steps
CAD Layer - BUILDING_STEPS
3D String along the edges of a set of steps.
This feature is included as part of the TIN.

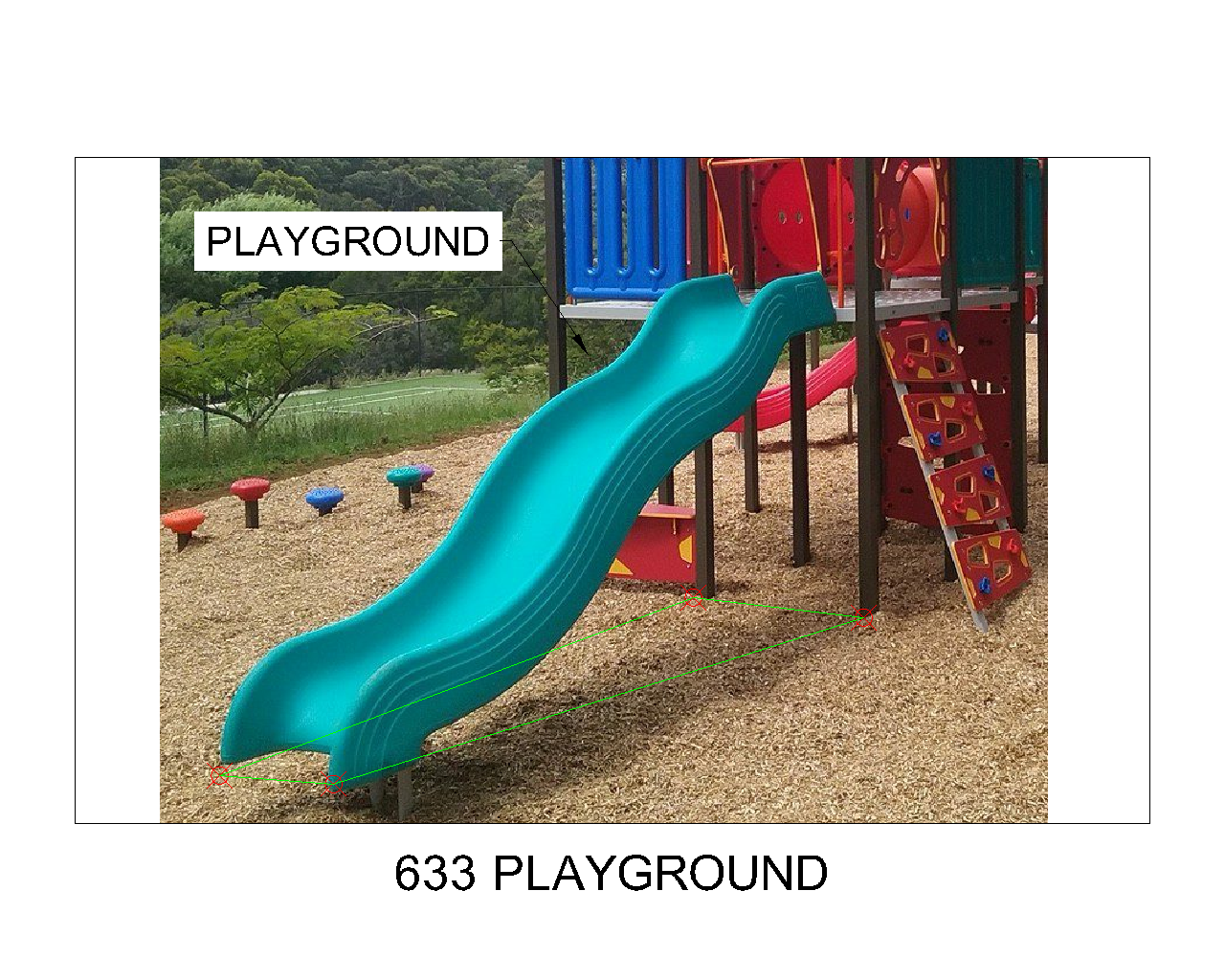

# 633 Playground
CAD Layer - STRUCTURES_PLAYGROUND
3D String along the edges or perimeter of playground equipment item.
This feature is included as part of the TIN.

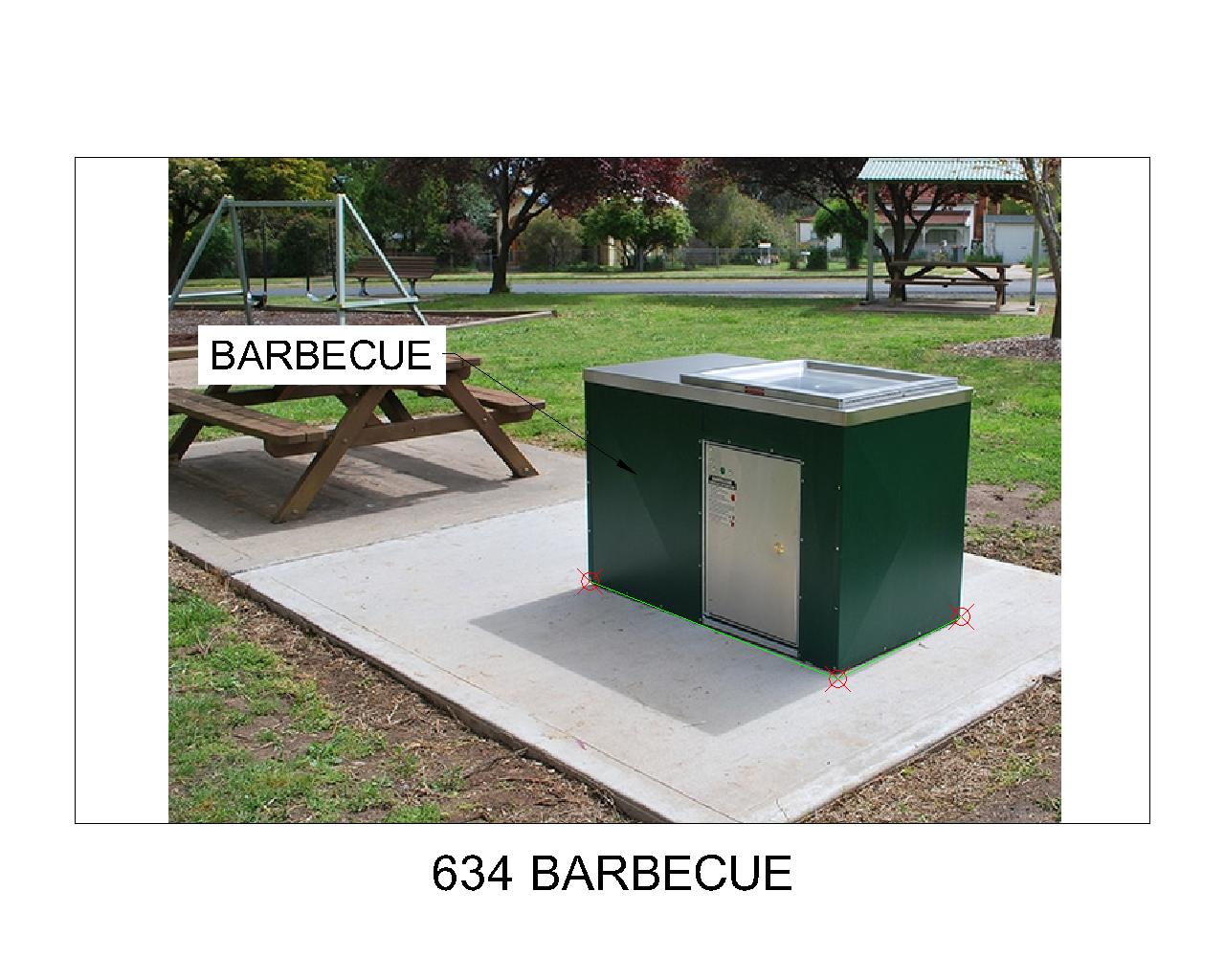

# 634 Barbecue
CAD Layer - STRUCTURES_BARBECUE
3D String along the base of a barbecue.
This feature is included as part of the TIN.
