# Rail
| Name | Code | Category | Feature Layer |
|---|---|---|---|
| Railway Line | 801 | FS_RAIL | RAILWAY_LINE |
| Railway boom gate | 802 | FS_RAIL | RAILWAY_BOOM_GATE |
| Railway stanchion (right) | 805 | FS_RAIL | RAILWAY_STANCHION_RIGHT |
| Railway (unclassified) | 806 | FS_RAIL | RAILWAY_UNCLASSIFIED |
| Railway stanchion (left) | 811 | FS_RAIL | RAILWAY_STANCHION_LEFT |
| Railway - MYKI Reader | 833 | FS_RAIL | RAILWAY_MYKI_READER |
| Railway Ballast Toe | 820 | FS_RAIL | RAILWAY_BALLAST_TOE |
| Railway Ballast Top | 821 | FS_RAIL | RAILWAY_BALLAST_TOP |

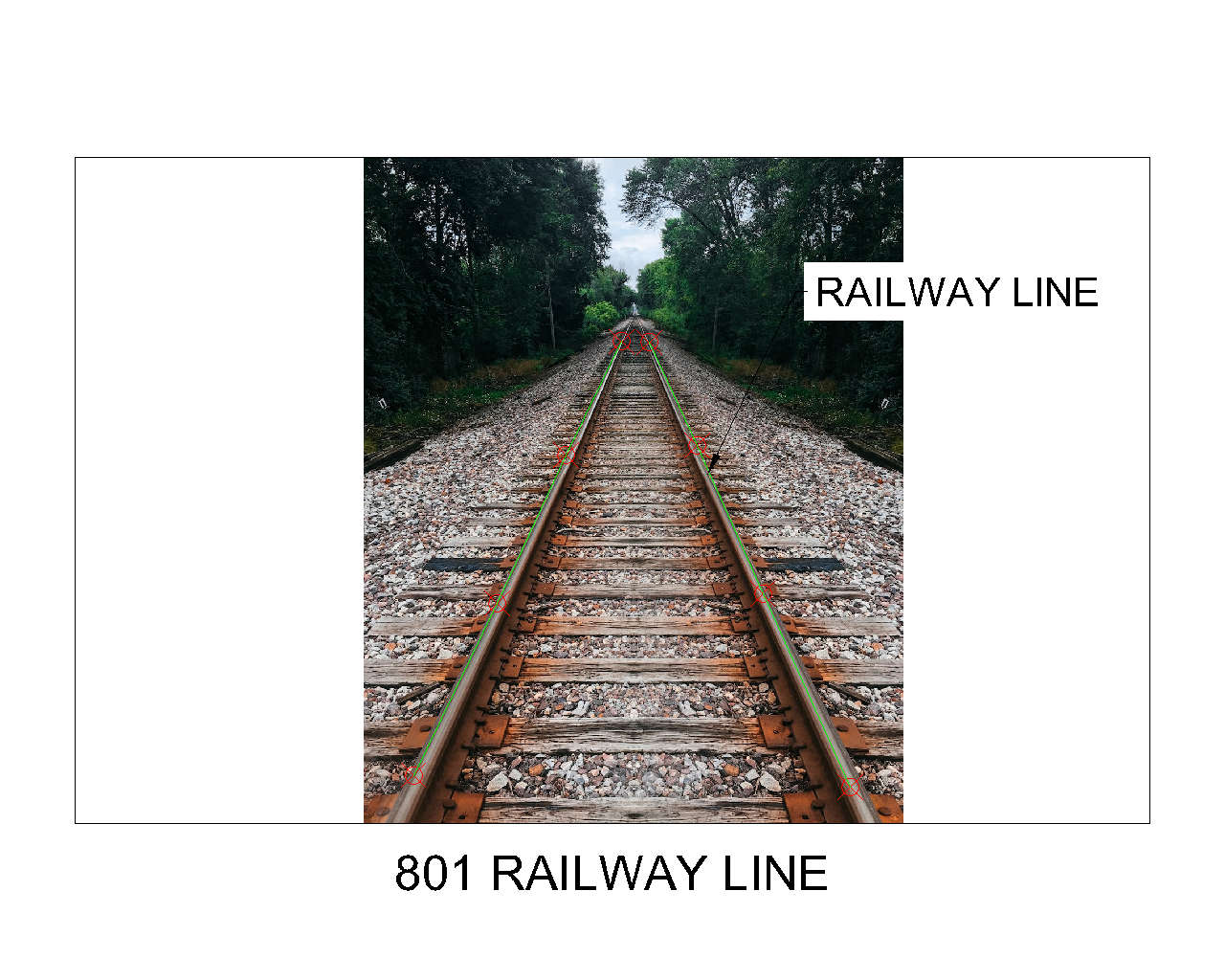

# 801 Railway Line
CAD Layer - RAILWAY_LINE
3D String along a railway line or track.
This feature is included as part of the TIN.

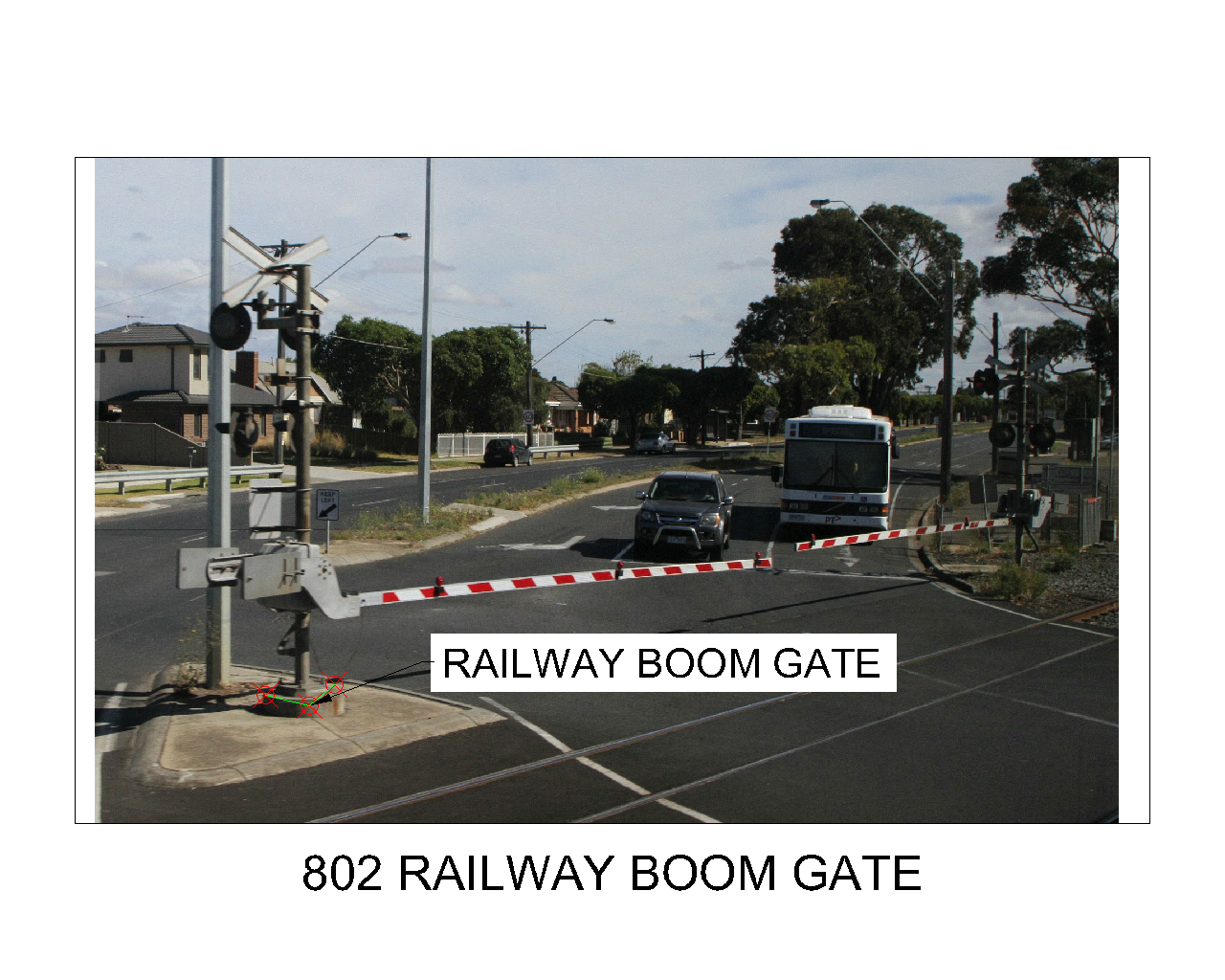

# 802 Railway Boom Gate
CAD Layer - RAILWAY_BOOM_GATE
3D String at the base of a boom gate pole.
This feature is included as part of the TIN.

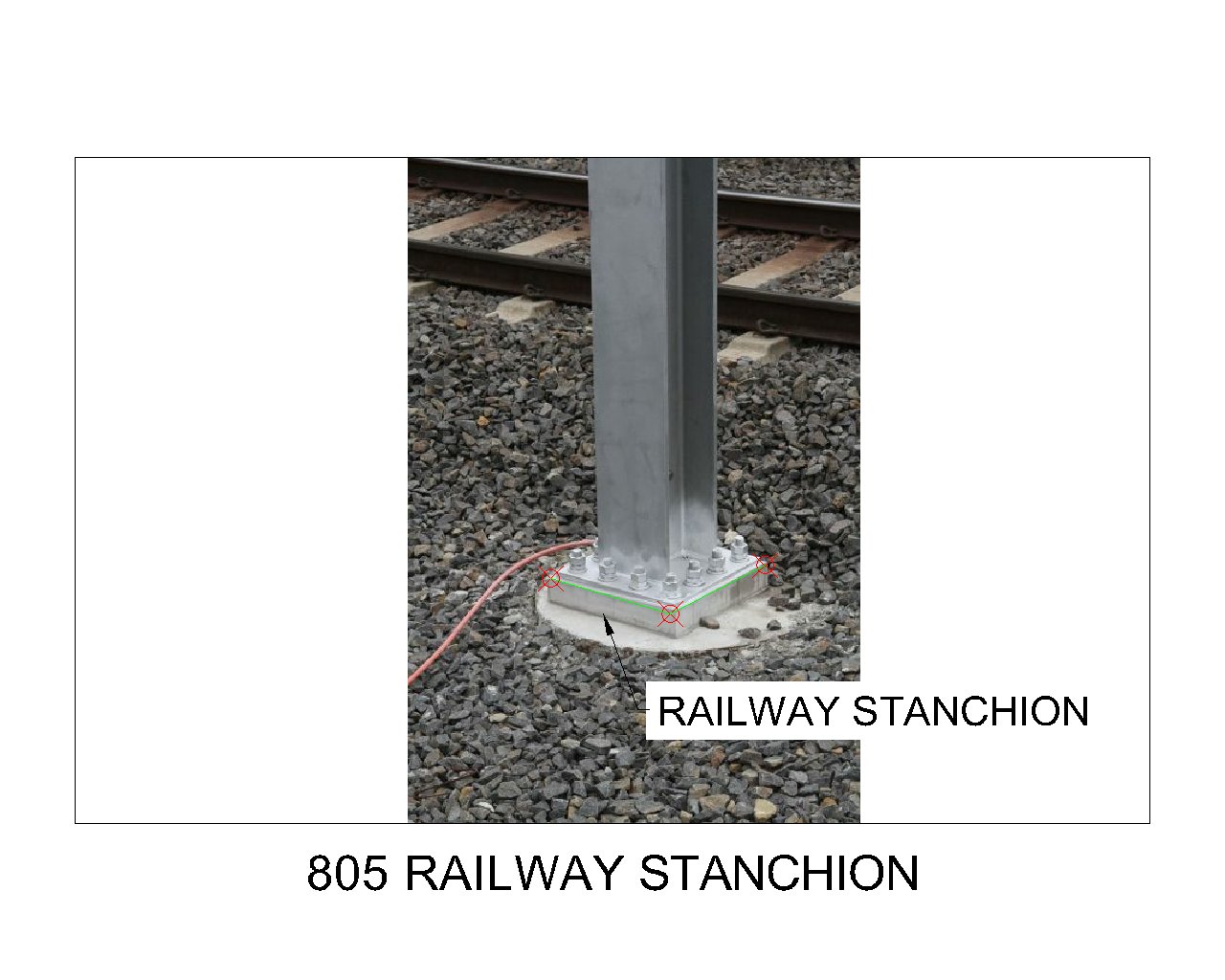

# 805 Railway Stanchion (Right)
CAD Layer - RAILWAY_STANCHION_RIGHT
3D String at the base of a stanchion pole.
This feature is included as part of the TIN.

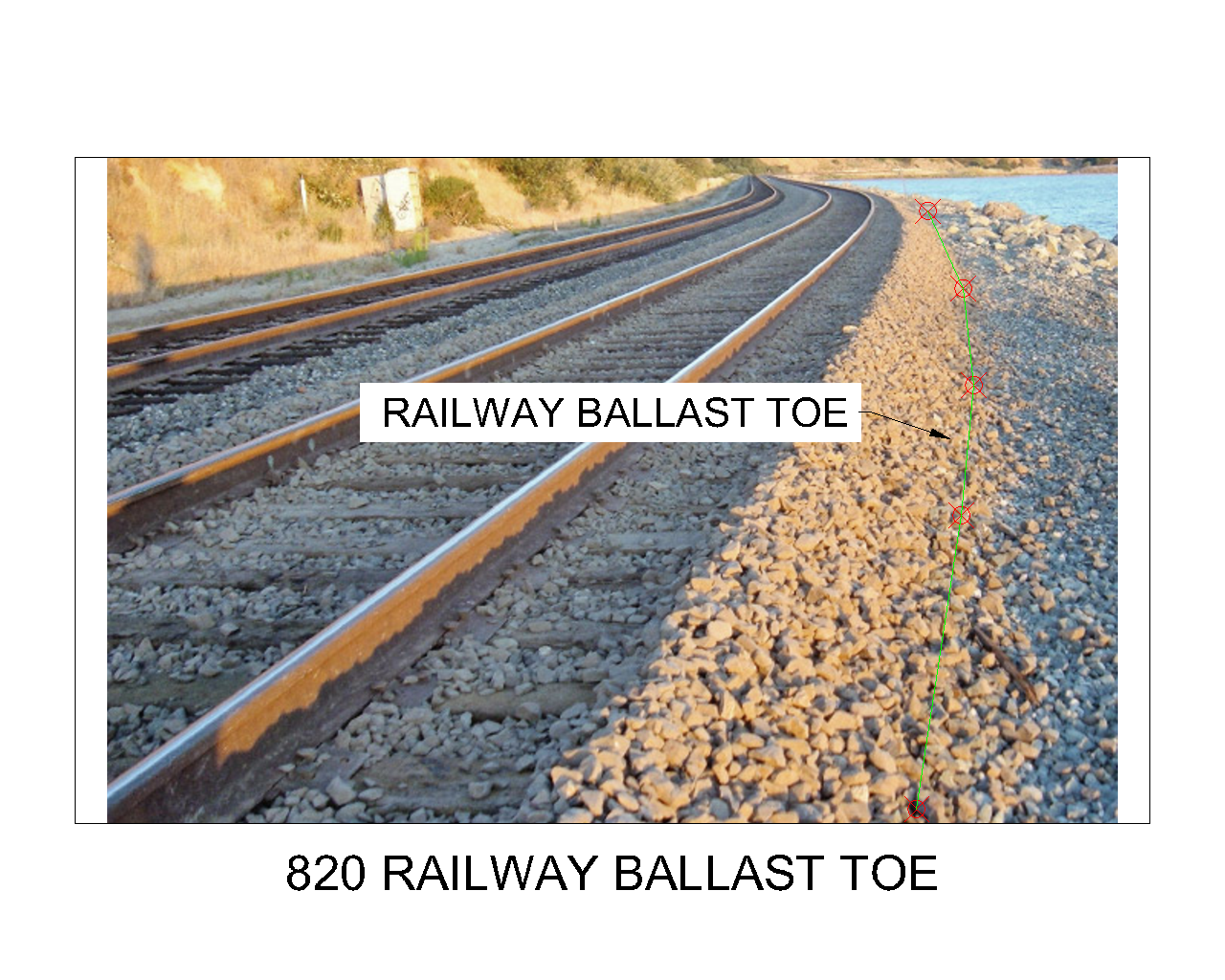

# 820 Railway Ballast Toe
CAD Layer - RAILWAY_BALLAST_TOE
3D String along the toe of the ballast.
This feature is included as part of the TIN.

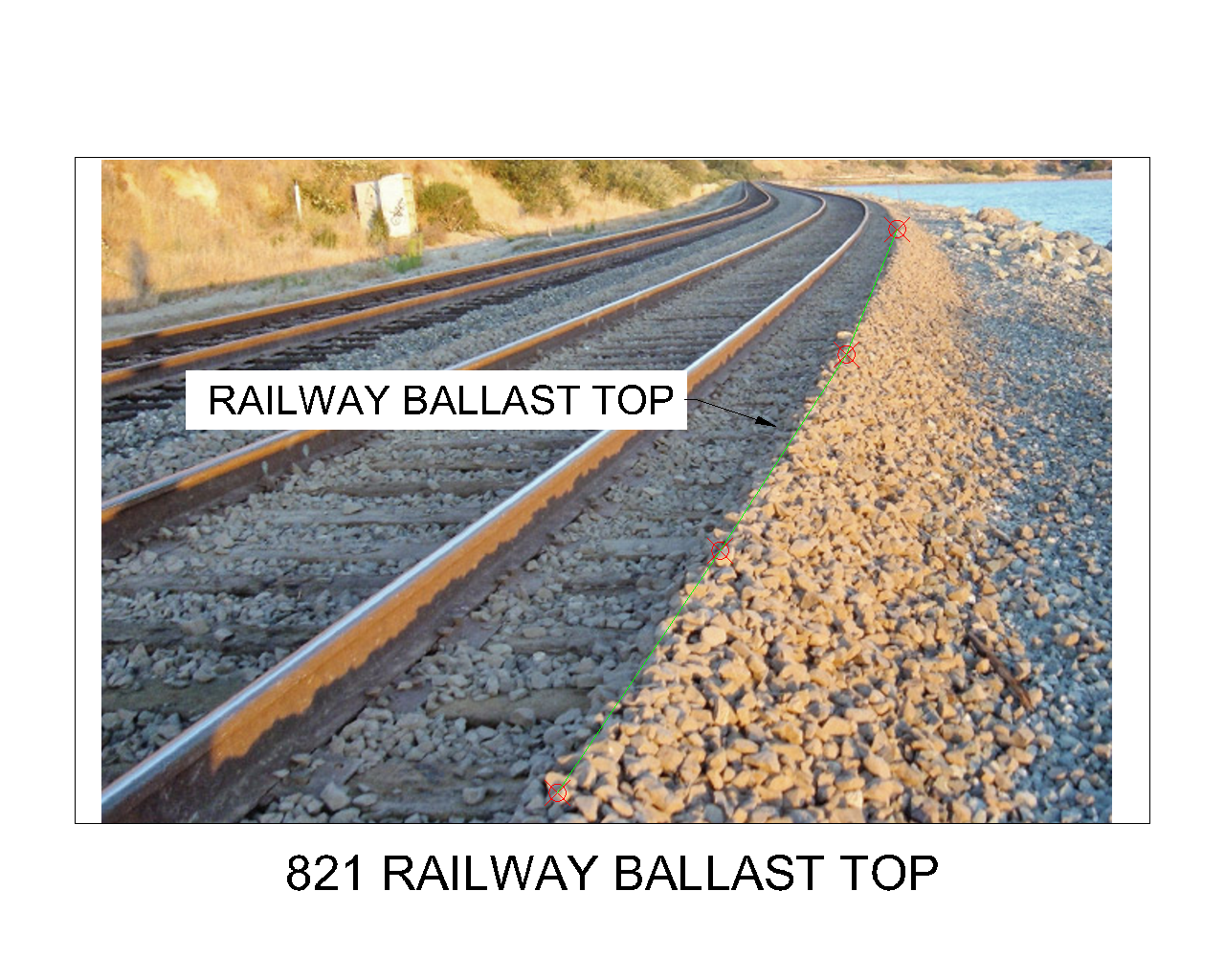

# 821 Railway Ballast Top
CAD Layer - RAILWAY_BALLAST_TOP
3D String along the top of the ballast.
This feature is included as part of the TIN.

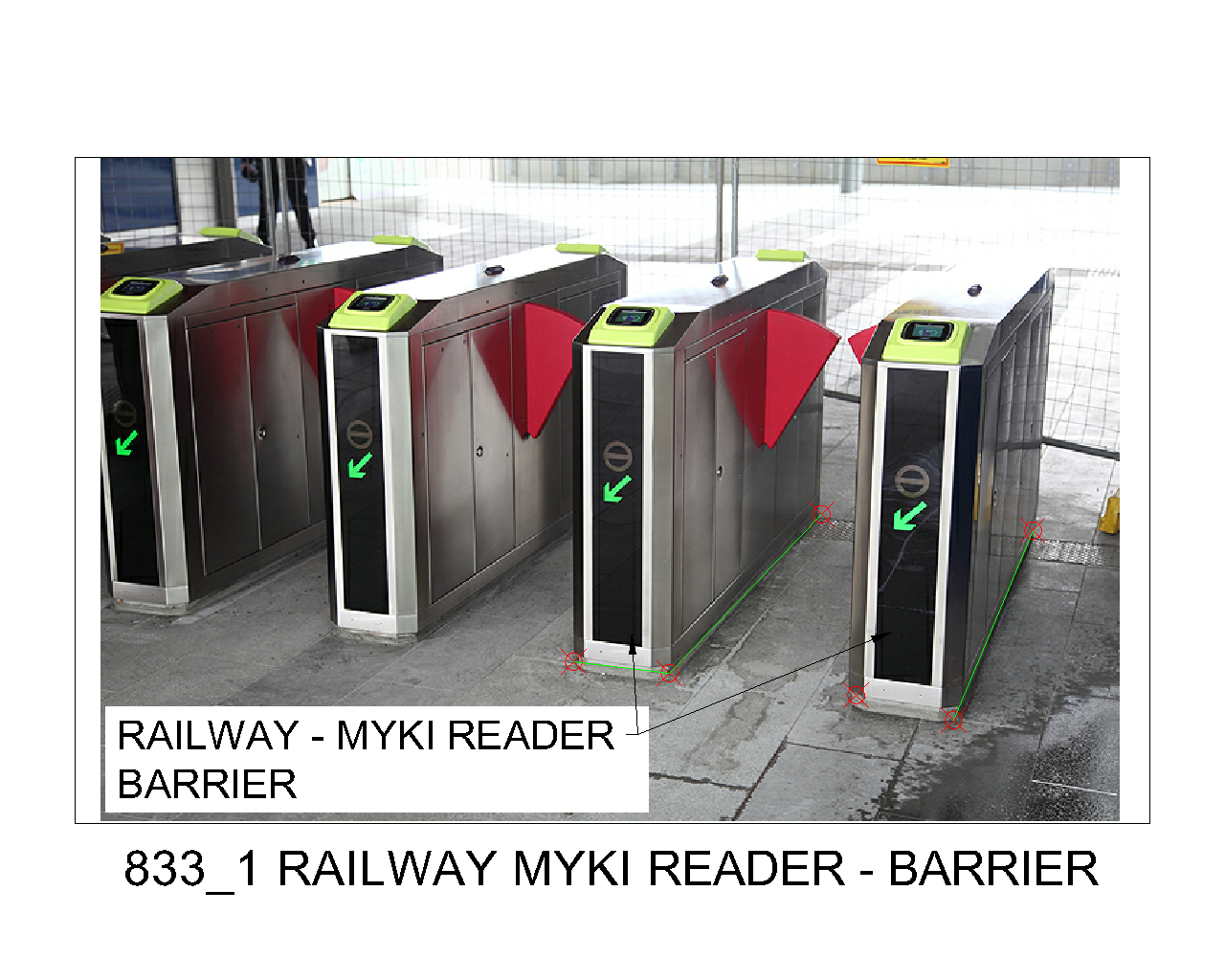

# 833_1 Railway - MYKI Reader Barrier
CAD Layer - RAILWAY_MYKI_READER_BARRIER
3D String around the base of the MYKI barrier.
This feature is included as part of the TIN.

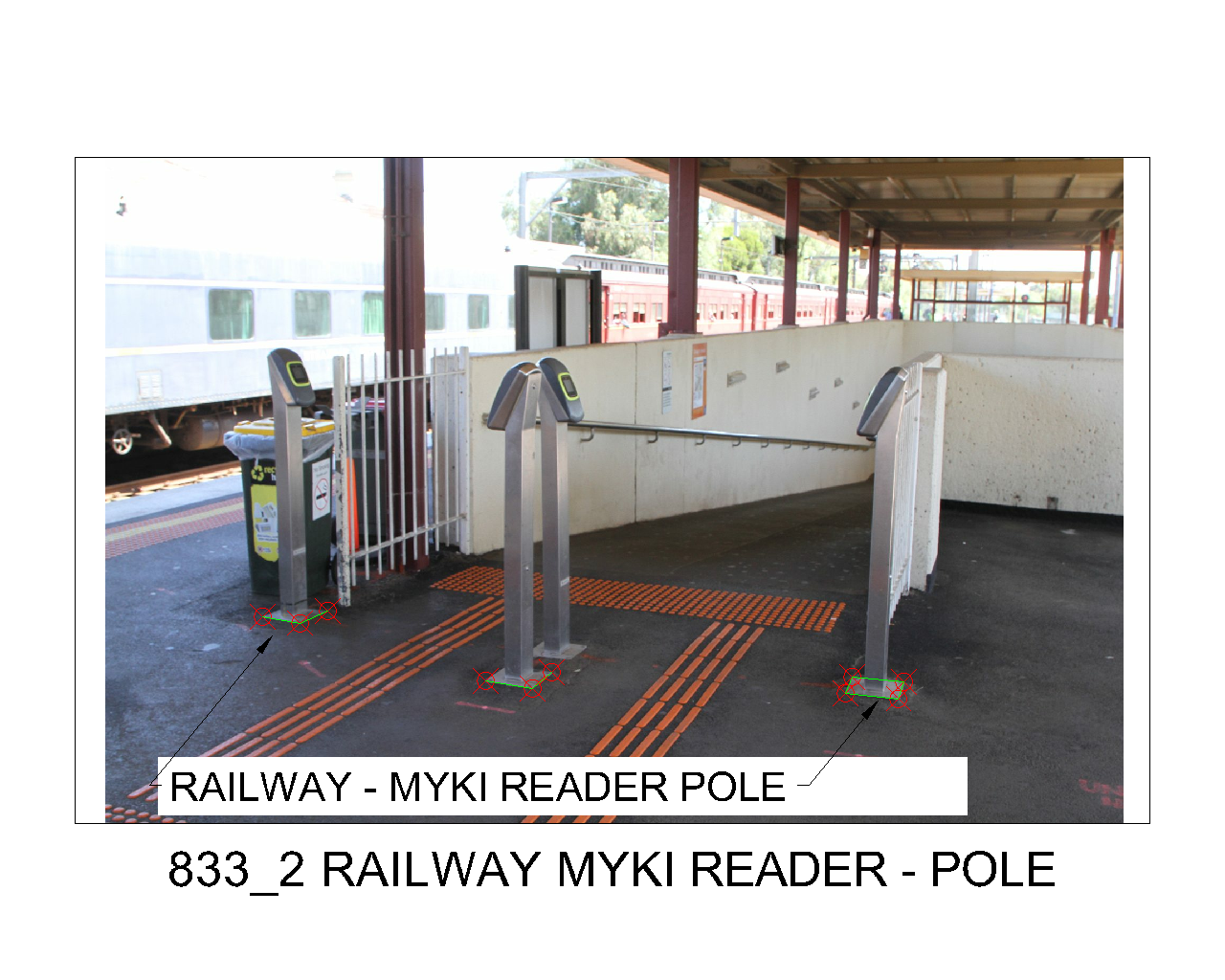

# 833_2 Railway - MYKI Reader Pole
CAD Layer - RAILWAY_MYKI_READER_POLE
3D String around the base of the MYKI pole.
This feature is included as part of the TIN.
