# Watercourse
| Name | Code | Category | Feature Layer |
|---|---|---|---|
| Drain-Concrete/Earth | 301 | FS_WATERCOURSE | DRAINAGE_DRAIN_CONCRETE_EARTH |
| Watercourse | 302 | FS_WATERCOURSE | DRAINAGE_WATERCOURSE |
| Pondage | 303 | FS_WATERCOURSE | DRAINAGE_PONDAGE |
| Unclassified drainage etc | 312 | FS_WATERCOURSE | DRAINAGE_UNCLASSIFIED_DRAINAGE_ETC |
| Mainly dry watercourse | 313 | FS_WATERCOURSE | DRAINAGE_MAINLY_DRY_WATERCOURSE |
| Perennial watercourse | 314 | FS_WATERCOURSE | DRAINAGE_PERENNIAL_WATERCOURSE |
| Swamp - unclassified | 315 | FS_WATERCOURSE | DRAINAGE_SWAMP_UNCLASSIFIED |
| Rock beaching | 320 | FS_WATERCOURSE | DRAINAGE_ROCK_BEACHING |
| Open Drainage | 323 | FS_WATERCOURSE | DRAINAGE_OPEN_DRAINAGE |
| Gauge Board | 350 | FS_WATERCOURSE | GAUGE BOARD |

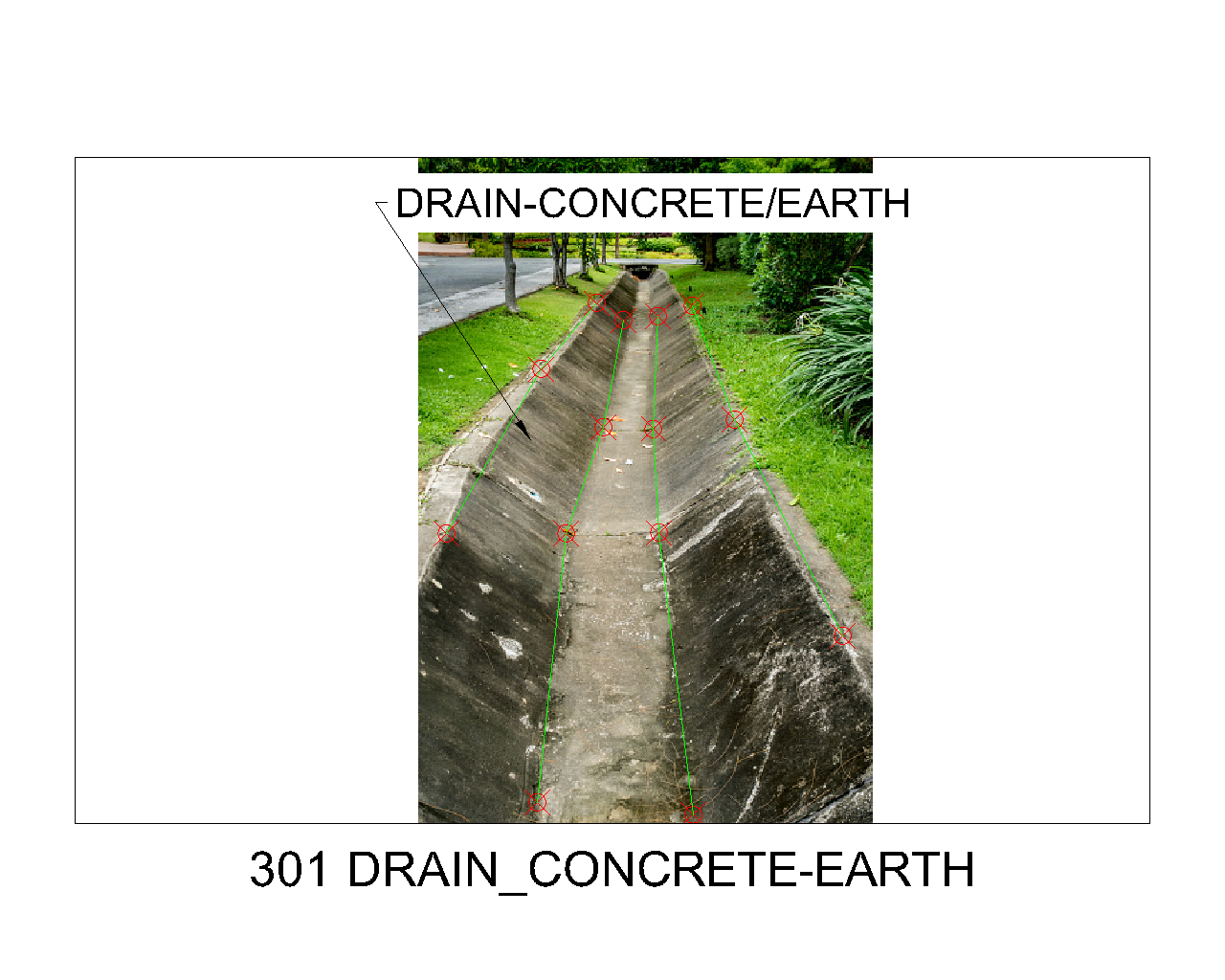

# 301 Drain-Concrete/Earth
CAD Layer - DRAINAGE_DRAIN_CONCRETE_EARTH
3D String along the length of the concrete earth drain.
This feature is included as part of the TIN.

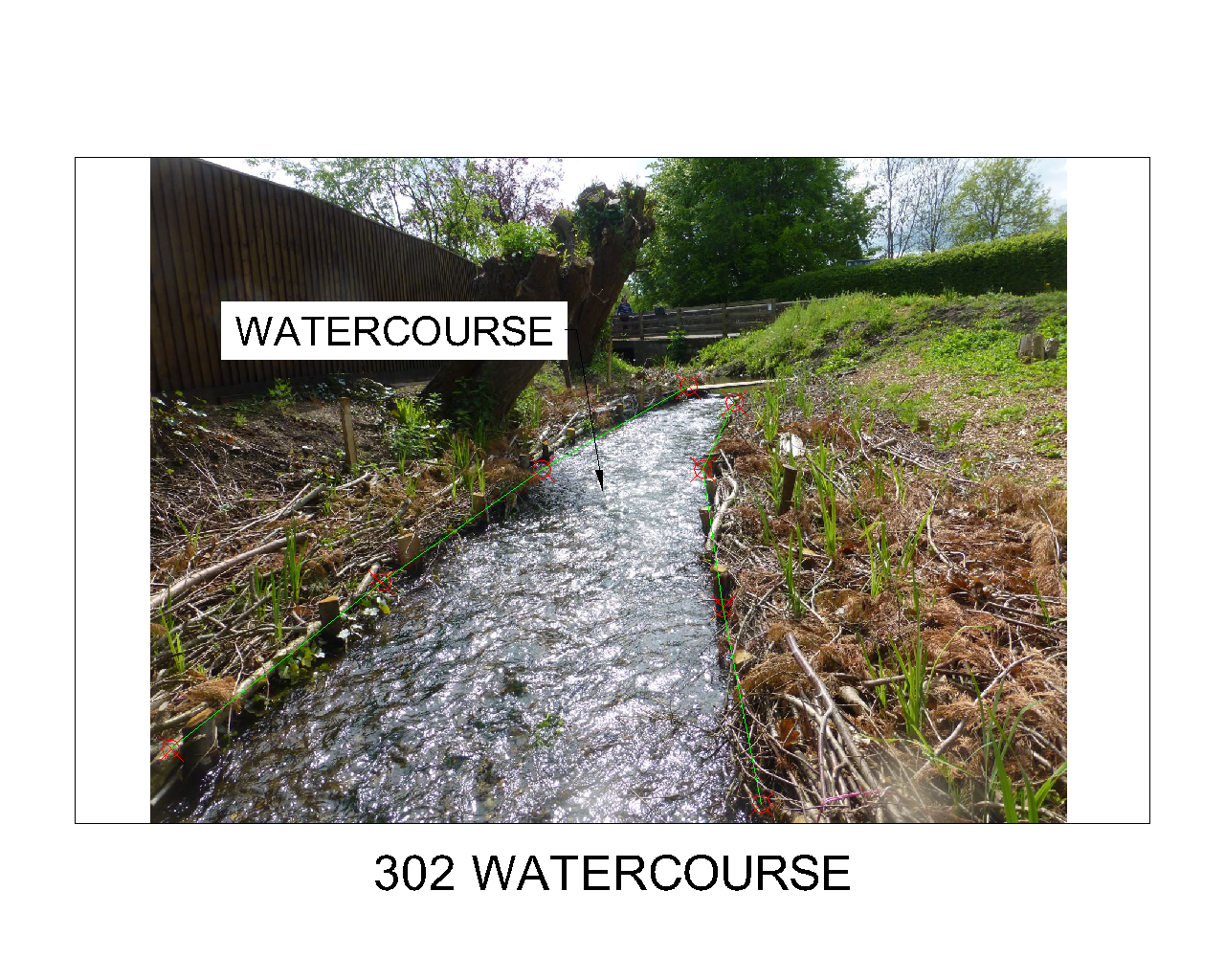

# 302 Watercourse
CAD Layer - DRAINAGE_WATERCOURSE
3D String around the edge of the water feature.
This feature is included as part of the TIN.

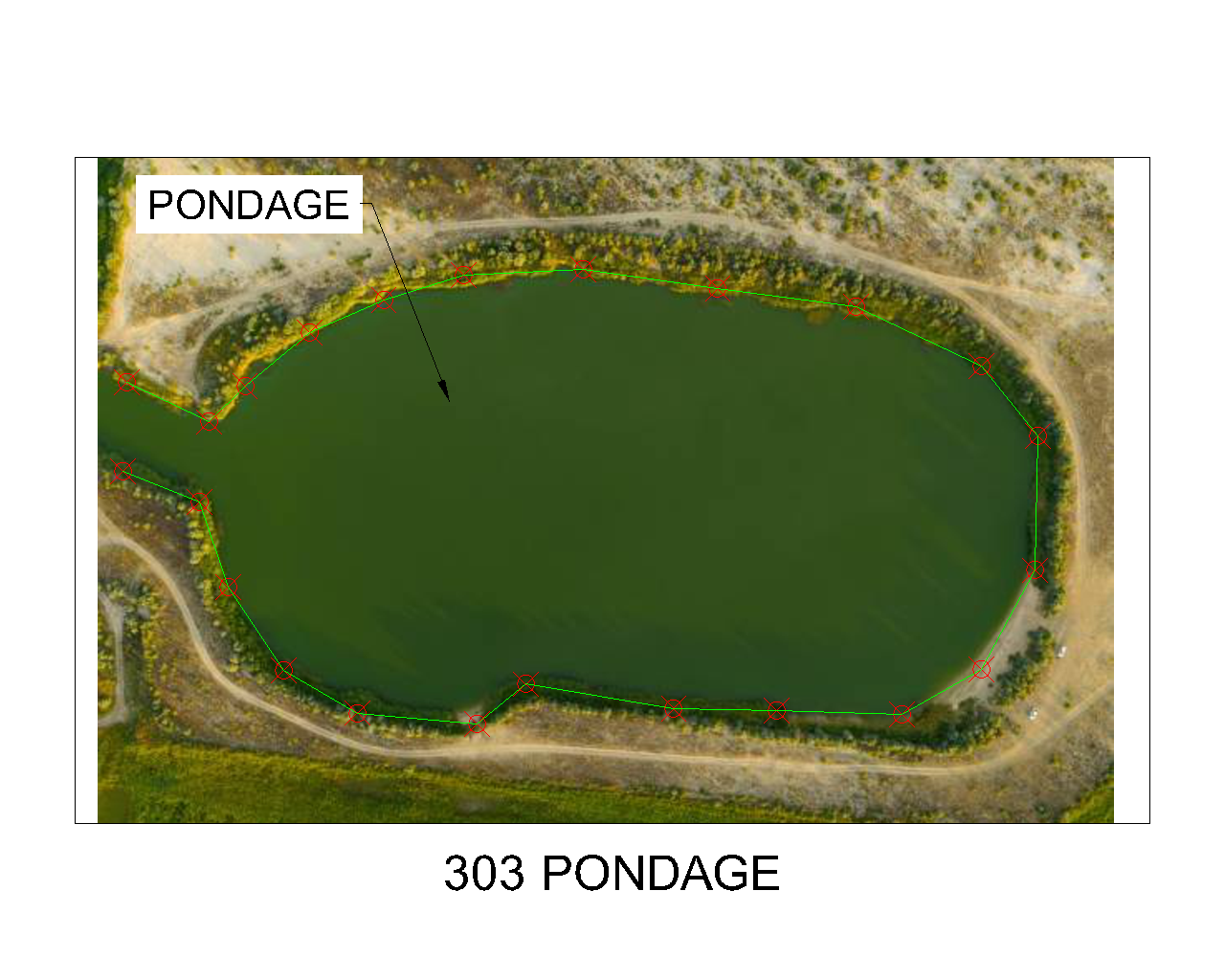

# 303 Pondage
CAD Layer - DRAINAGE_PONDAGE
3D String around the edge of the pond.
This feature is included as part of the TIN.
# 312 Unclassified drainage etc
CAD Layer - DRAINAGE_UNCLASSIFIED_DRAINAGE_ETC
3D String or point of unclassified drainage object.
This feature is included as part of the TIN.

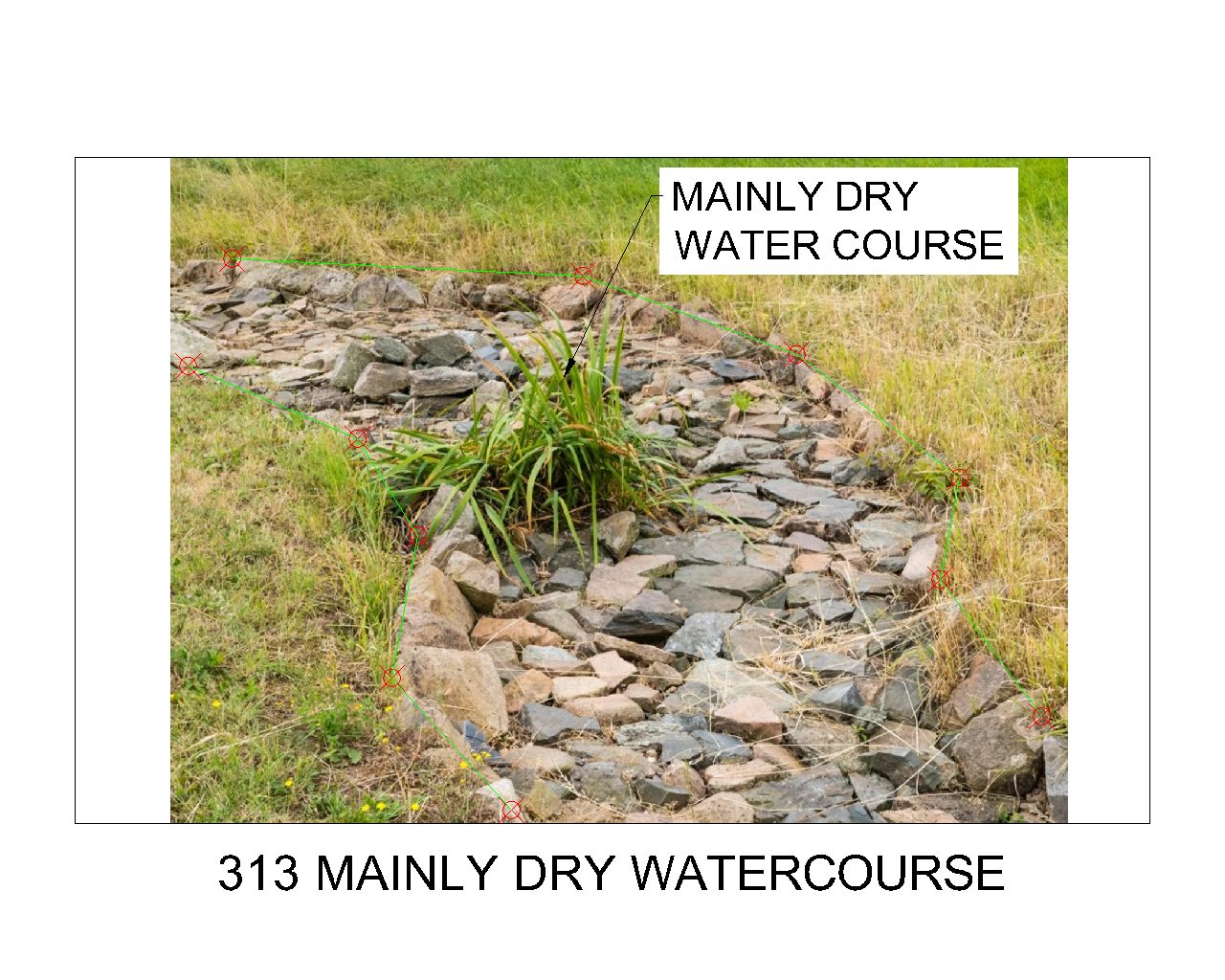

# 313 Mainly dry watercourse
CAD Layer - DRAINAGE_MAINLY_DRY_WATERCOURSE
3D String around the edge of the dry watercourse. Points maybe taken through the middle.
This feature is included as part of the TIN.

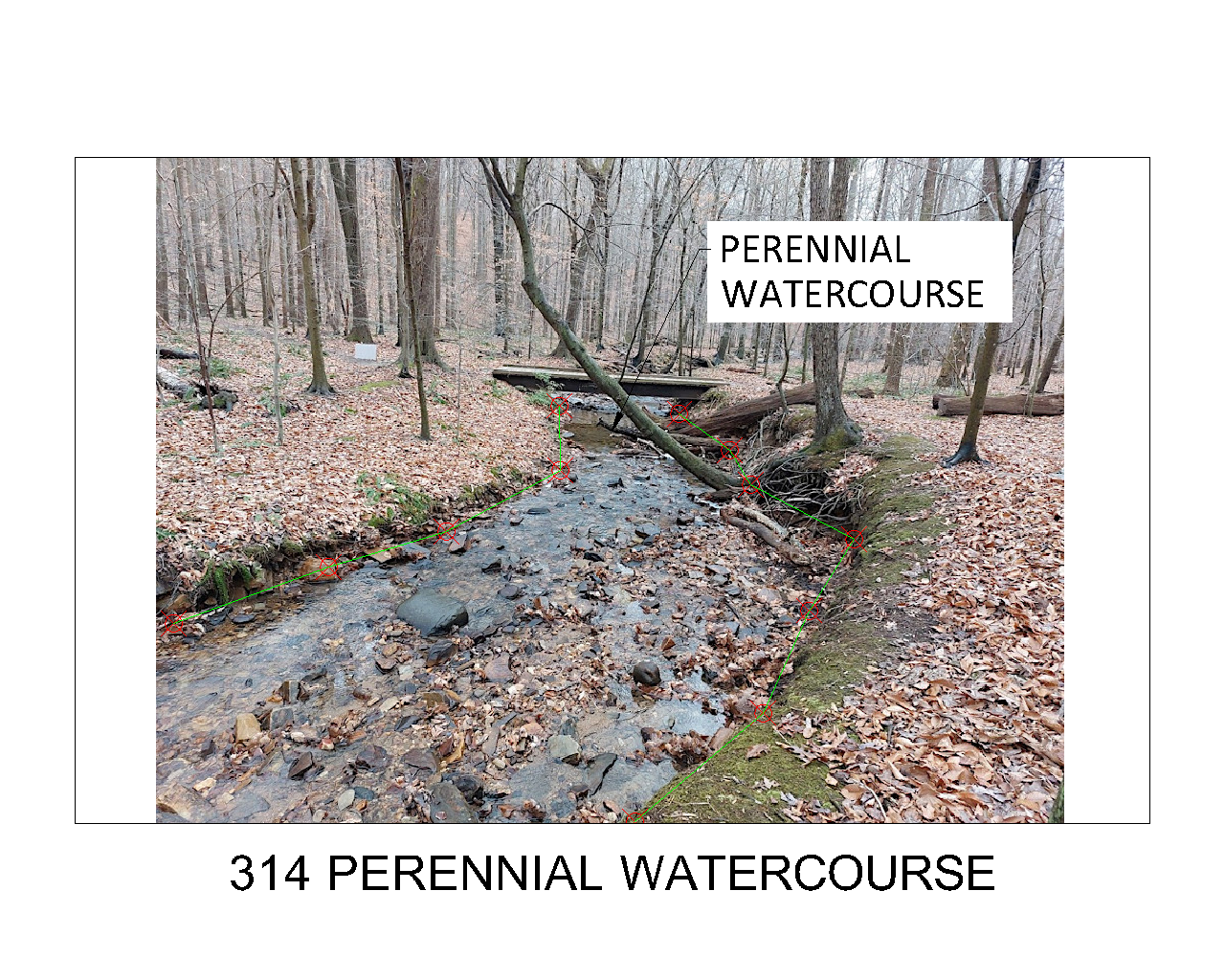

# 314 Perennial watercourse
CAD Layer - DRAINAGE_PERENNIAL_WATERCOURSE
3D String around the edge of the creek/stream that flows all year round.
This feature is included as part of the TIN.

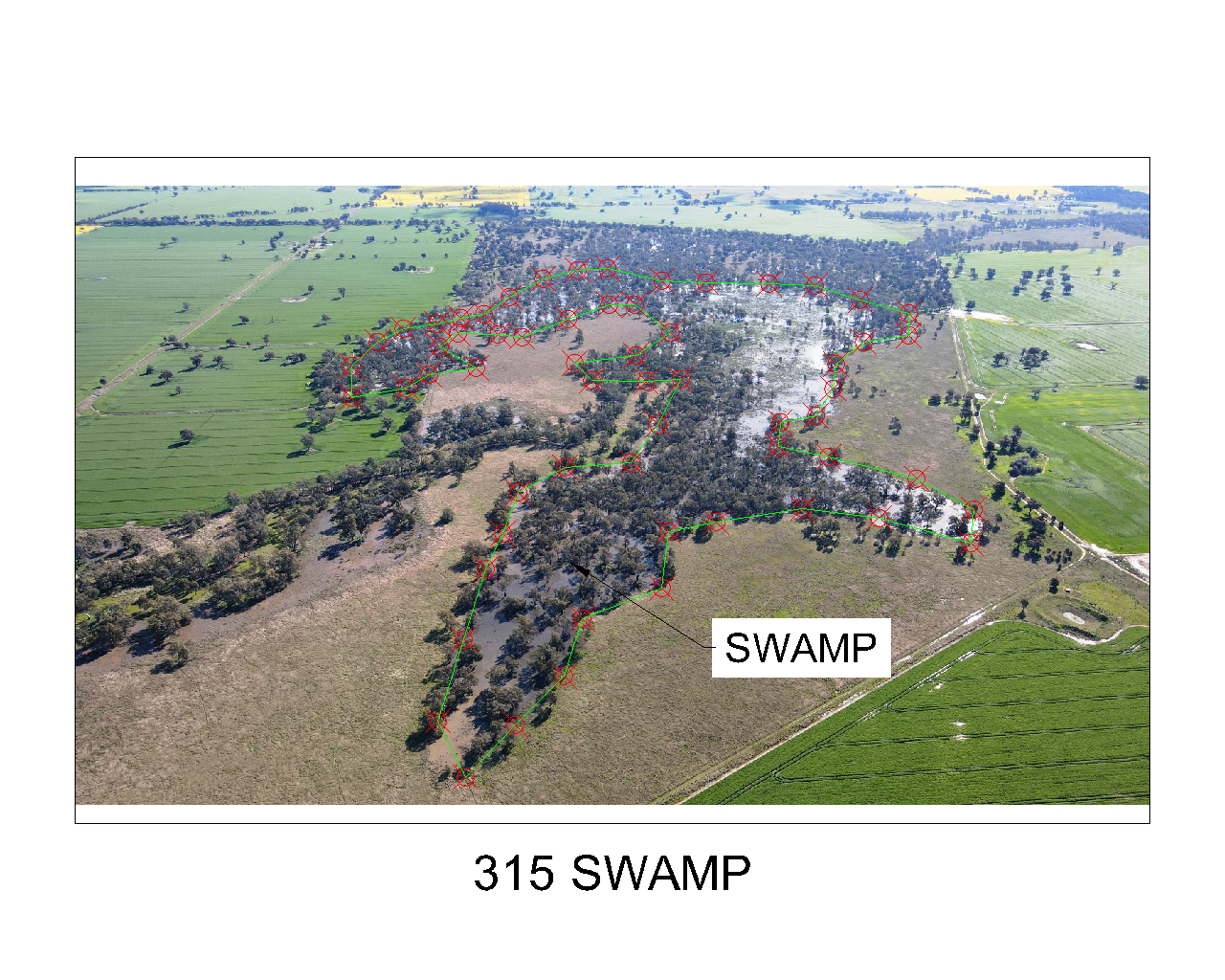

# 315 Swamp - unclassified
CAD Layer - DRAINAGE_SWAMP_UNCLASSIFIED
3D String around the edge of the Swamp.
This feature is included as part of the TIN.

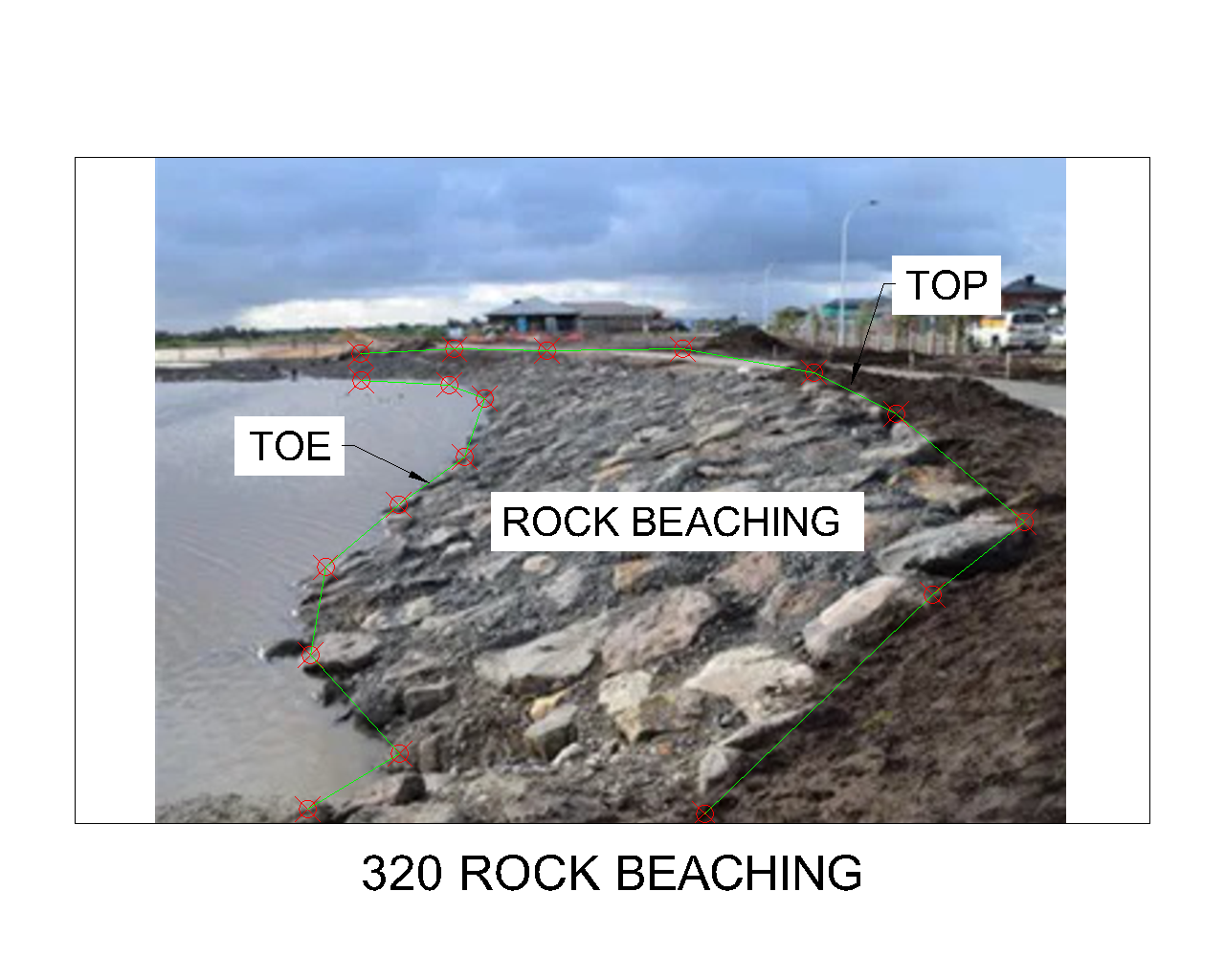

# 320 Rock beaching
CAD Layer - DRAINAGE_ROCK_BEACHING
3D String around the edge of the rock beaching. Usually found at the outlet of drainage pipes or culverts.
This feature is included as part of the TIN.

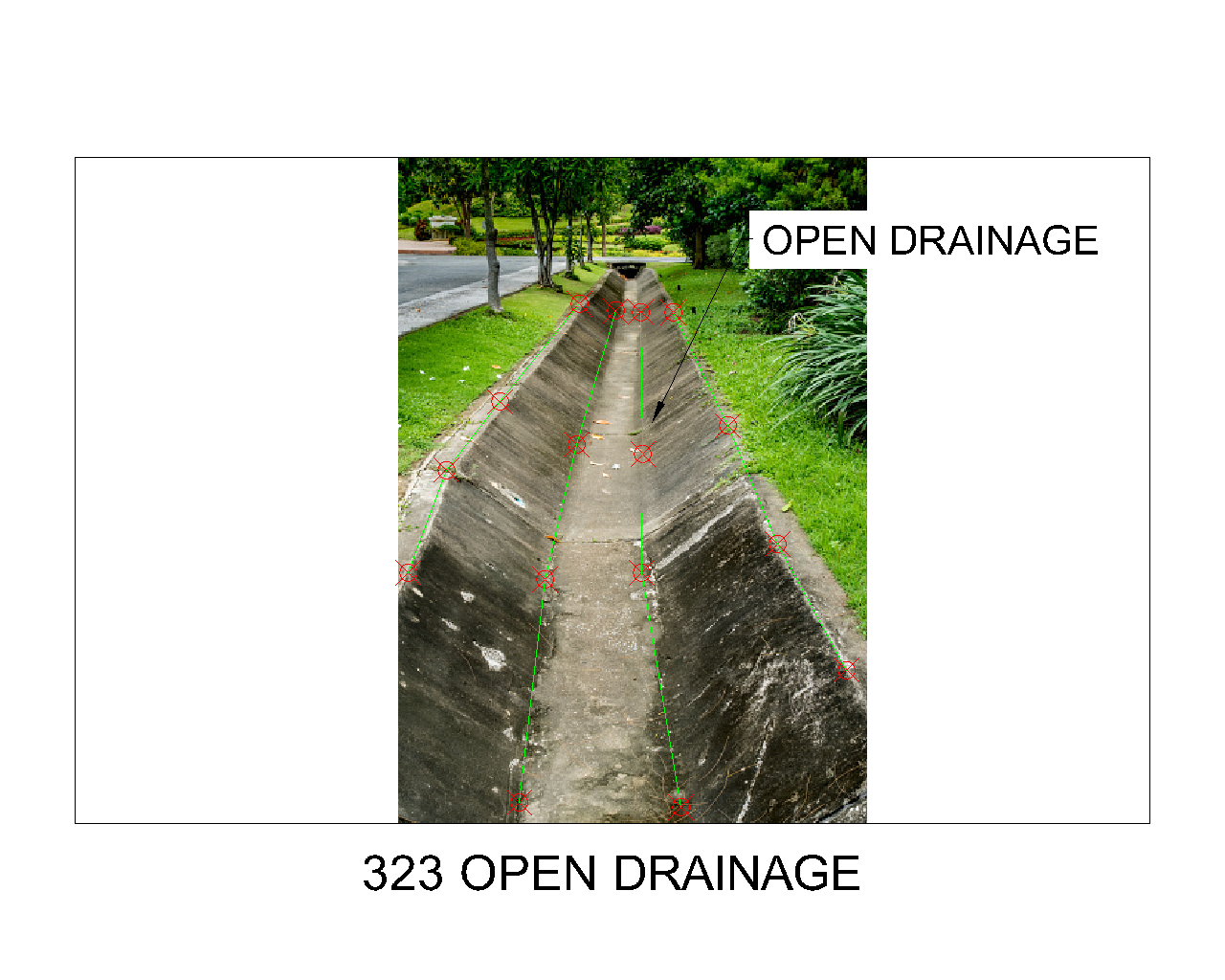

# 323 Open Drainage
CAD Layer - DRAINAGE_OPEN_DRAINAGE
3D String along the length of the open drainage channel.
This feature is included as part of the TIN.

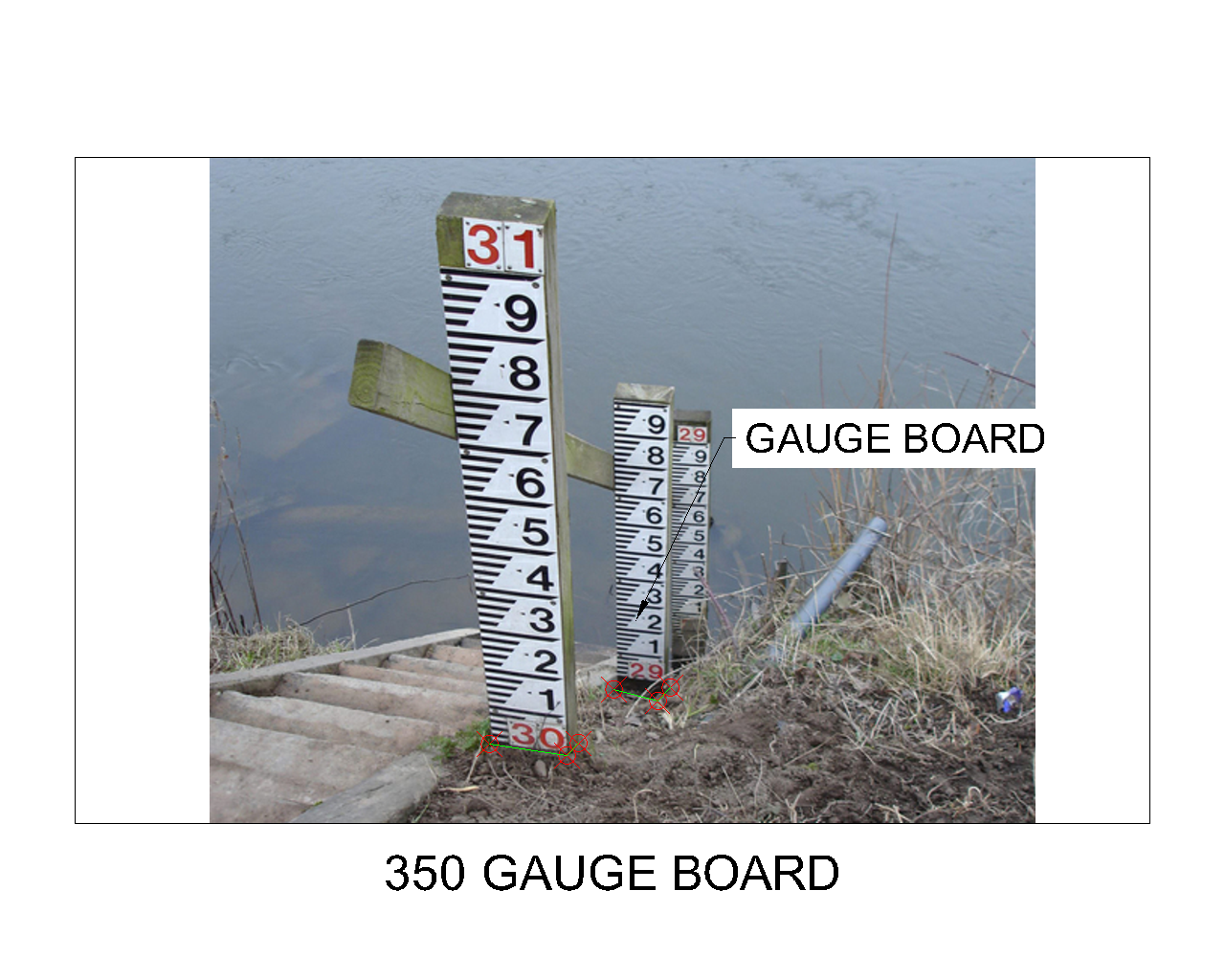

# 350 Gauge Board
CAD Layer - GAUGE BOARD
Point at the base of the gauge baoard.
This feature is not included as part of the TIN.
