# Road Furniture
| Name | Code | Category | Feature Layer |
|---|---|---|---|
| Traffic Sign-S | 464 | FS_ROAD_FURNITURE | TRAFFIC_TRAFFIC_SIGN_S |
| Parking Sign-S | 465 | FS_ROAD_FURNITURE | TRAFFIC_PARKING_SIGN_S |
| Ticket Machine-S | 466 | FS_ROAD_FURNITURE | TRAFFIC_TICKET_MACHINE_S |
| Guard Rail | 501 | FS_ROAD_FURNITURE | ROAD_FURNITURE_GUARD_RAIL |
| KM Post | 502 | FS_ROAD_FURNITURE | ROAD_FURNITURE_KM_POST |
| Signs | 503 | FS_ROAD_FURNITURE | ROAD_FURNITURE_SIGNS |
| Letter Box | 504 | FS_ROAD_FURNITURE | ROAD_FURNITURE_LETTER_BOX |
| Emergency Phone | 508 | FS_ROAD_FURNITURE | ROAD_FURNITURE_EMERGENCY_PHONE |
| Road Furn-Unclassified | 509 | FS_ROAD_FURNITURE | ROAD_FURNITURE_ROAD_FURN_UNCLASSIFIED |
| Monument | 510 | FS_ROAD_FURNITURE | ROAD_FURNITURE_MONUMENT |
| Joint use pole | 511 | FS_ROAD_FURNITURE | TRAFFIC_JOINT_USE_POLE |
| Cable pit | 512 | FS_ROAD_FURNITURE | TRAFFIC_CABLE_PIT |
| Detector pit | 513 | FS_ROAD_FURNITURE | TRAFFIC_DETECTOR_PIT |
| Red Light camera Flash | 514 | FS_ROAD_FURNITURE | TRAFFIC_RED_LIGHT_CAMERA_FLASH |
| Red Light Camera | 515 | FS_ROAD_FURNITURE | TRAFFIC_RED_LIGHT_CAMERA |
| Side mounted sign | 516 | FS_ROAD_FURNITURE | TRAFFIC_SIDE_MOUNTED_SIGN |
| Centre mounted sign | 517 | FS_ROAD_FURNITURE | TRAFFIC_CENTRE_MOUNTED_SIGN |
| Multiple mounted sign | 518 | FS_ROAD_FURNITURE | TRAFFIC_MULTIPLE_MOUNTED_SIGN |
| Curved sign | 519 | FS_ROAD_FURNITURE | ROAD_FURNITURE_CURVED_SIGN |
| Bollard | 521 | FS_ROAD_FURNITURE | ROAD_FURNITURE_BOLLARD |
| Conc Barrier Inter | 522 | FS_ROAD_FURNITURE | ROAD_FURNITURE_CONC_BARRIER_INTER |
| Conc Barrier Hinge | 523 | FS_ROAD_FURNITURE | ROAD_FURNITURE_CONC_BARRIER_HINGE |
| Conc Barrier Top | 524 | FS_ROAD_FURNITURE | ROAD_FURNITURE_CONC_BARRIER_TOP |
| Stock Grid | 525 | FS_ROAD_FURNITURE | ROAD_FURNITURE_STOCK_GRID |
| Wire Rope Barrier | 526 | FS_ROAD_FURNITURE | ROAD_FURNITURE_WIRE_ROPE_BARRIER |
| Noise Wall Inter | 527 | FS_ROAD_FURNITURE | ROAD_FURNITURE_NOISE_WALL_INTER |
| Noise Wall Top | 528 | FS_ROAD_FURNITURE | ROAD_FURNITURE_NOISE_WALL_TOP |
| Speed Bump | 529 | FS_ROAD_FURNITURE | ROAD_FURNITURE_SPEED_BUMP |
| Bin | 530 | FS_ROAD_FURNITURE | ROAD _ FURNITURE_BIN |
| Bicycle Rack | 531 | FS_ROAD_FURNITURE | ROAD _ FURNITURE_BICYCLE_RACK |
| Tactile | 532 | FS_ROAD_FURNITURE | ROAD_FURNITURE_TACTILE |
| Tram Stop | 551 | FS_ROAD_FURNITURE | ROAD_FURNITURE_TRAM_STOP |
| Bus Stop | 552 | FS_ROAD_FURNITURE | ROAD_FURNITURE_BUS_STOP |
| Parking Meter | 553 | FS_ROAD_FURNITURE | ROAD_FURNITURE_PARKING_METER |

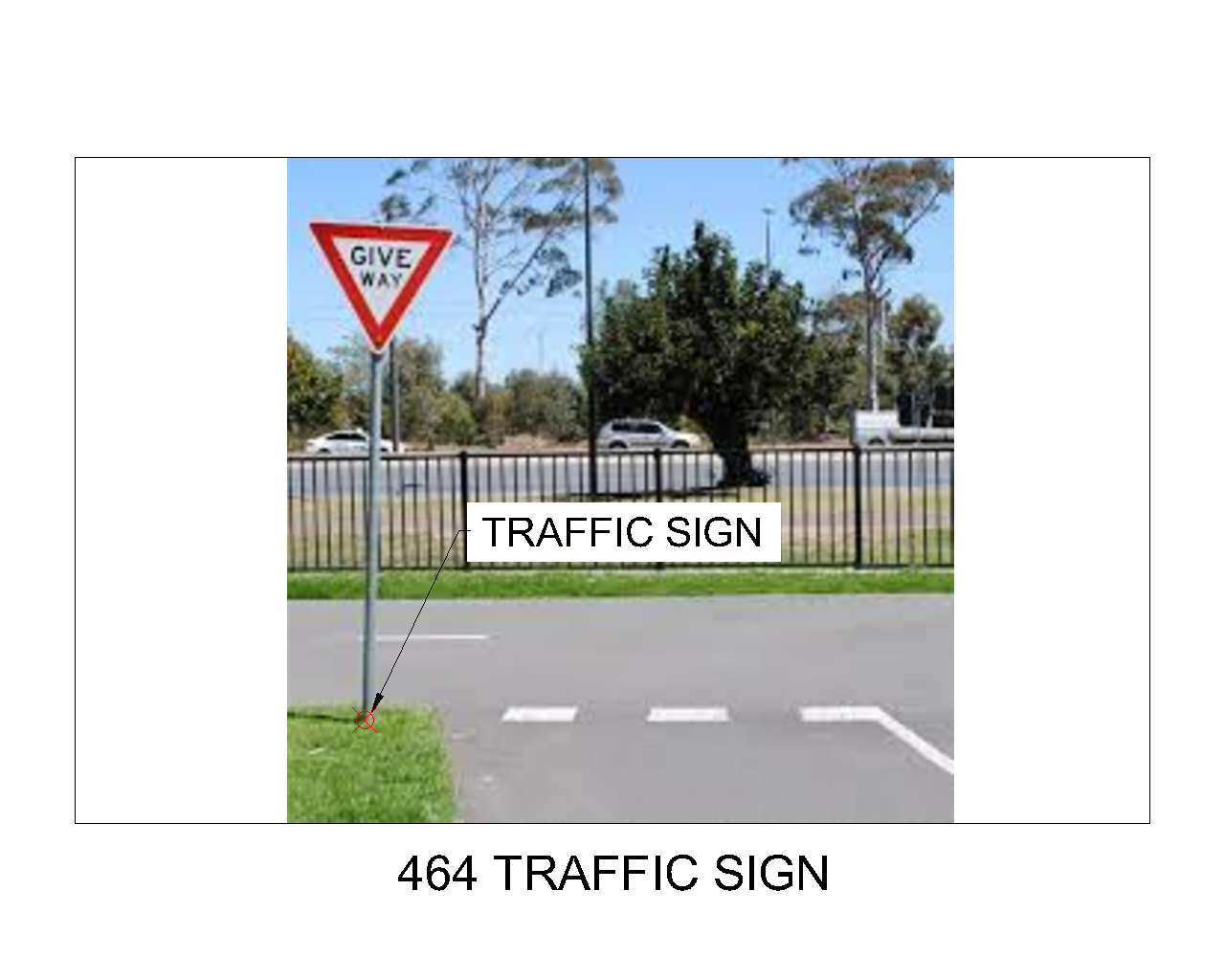

# 464 Traffic Sign
CAD Layer - TRAFFIC_TRAFFIC_SIGN_S
3D Point at the base of the traffic sign.
This feature is included as part of the TIN.

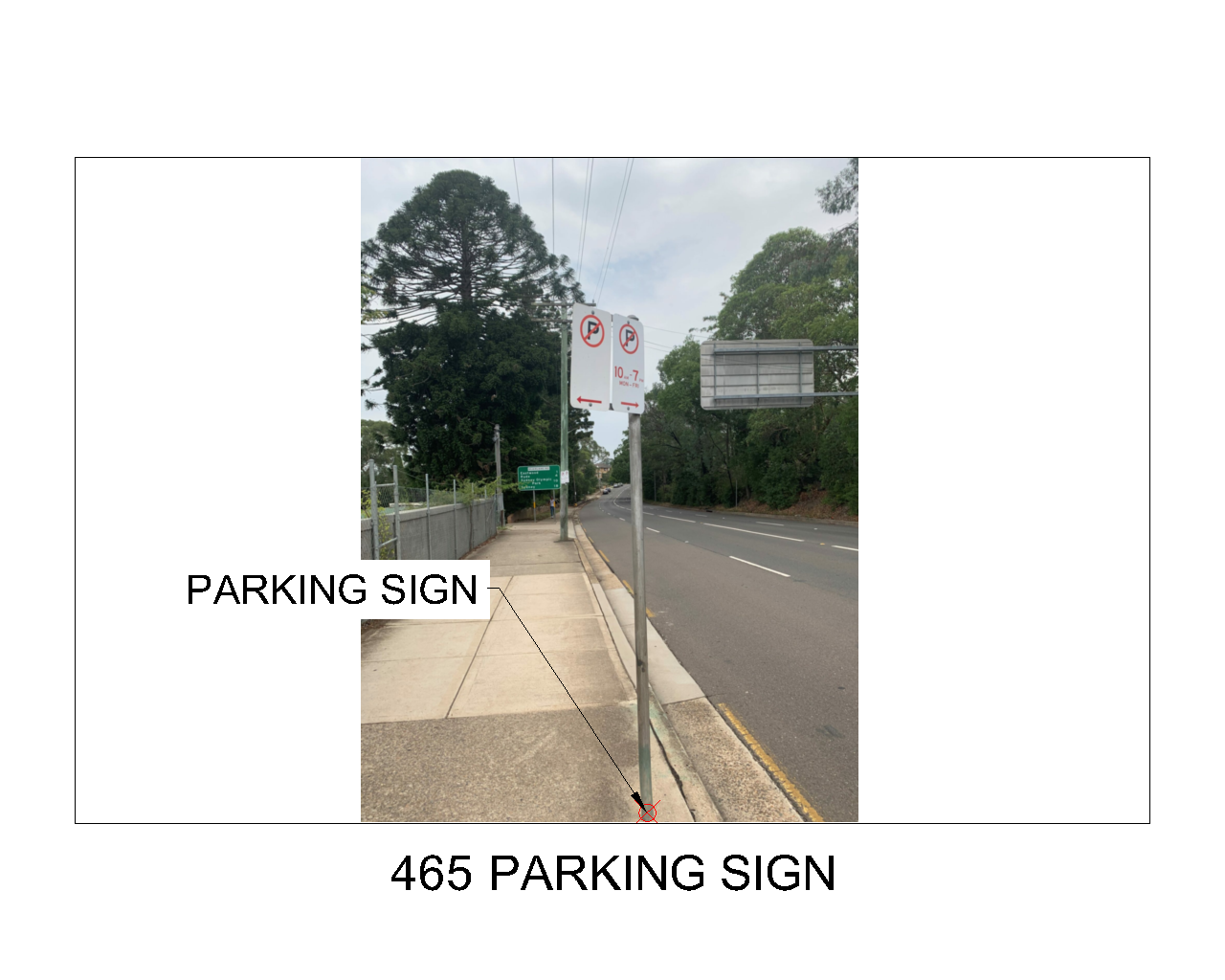

# 465 Parking Sign
CAD Layer - TRAFFIC_PARKING_SIGN_S
3D Point at the base of the parking sign.
This feature is included as part of the TIN.

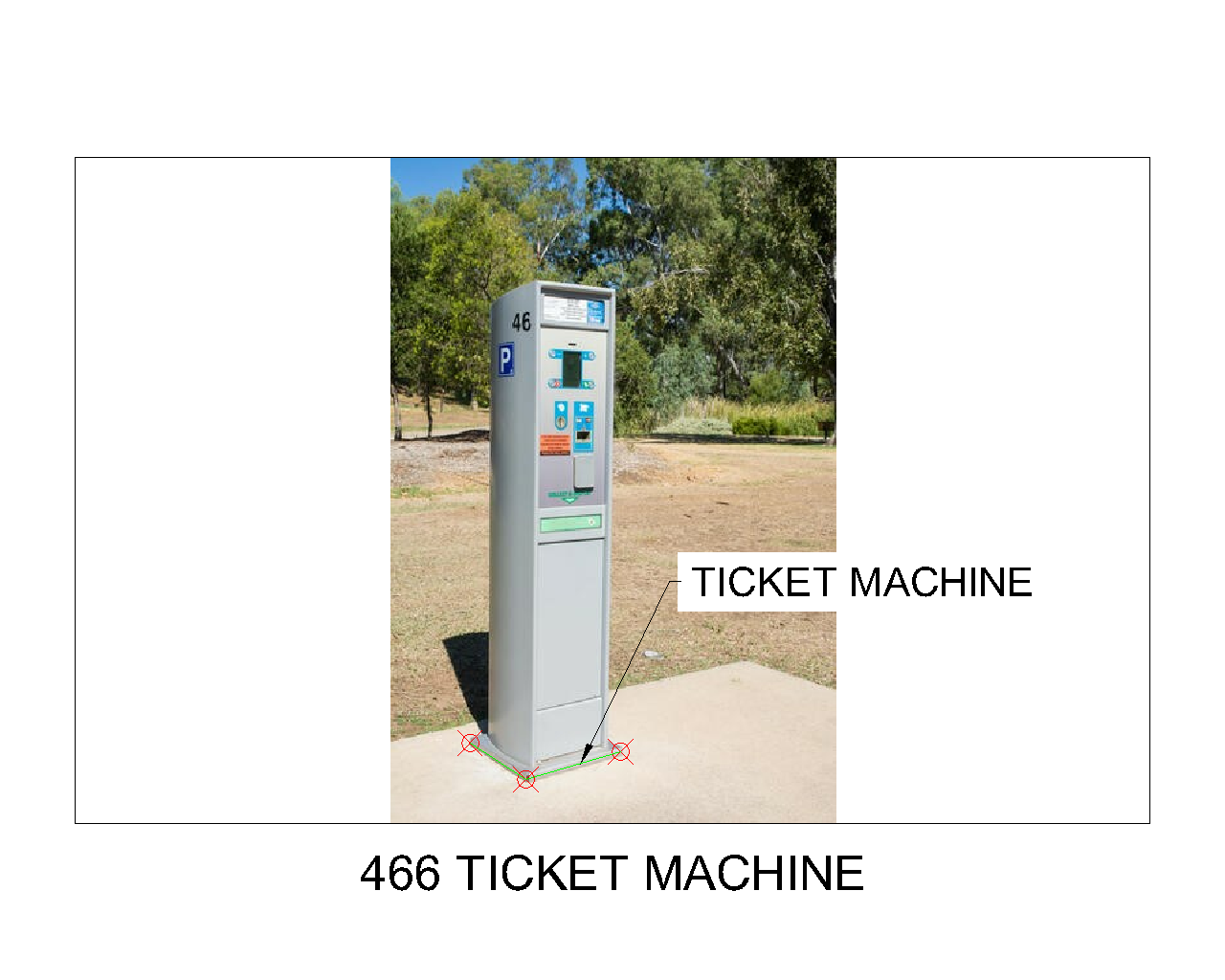

# 466 Ticket Machine
CAD Layer - TRAFFIC_TICKET_MACHINE_S
3D String around the base of the ticket machine.
This feature is included as part of the TIN.

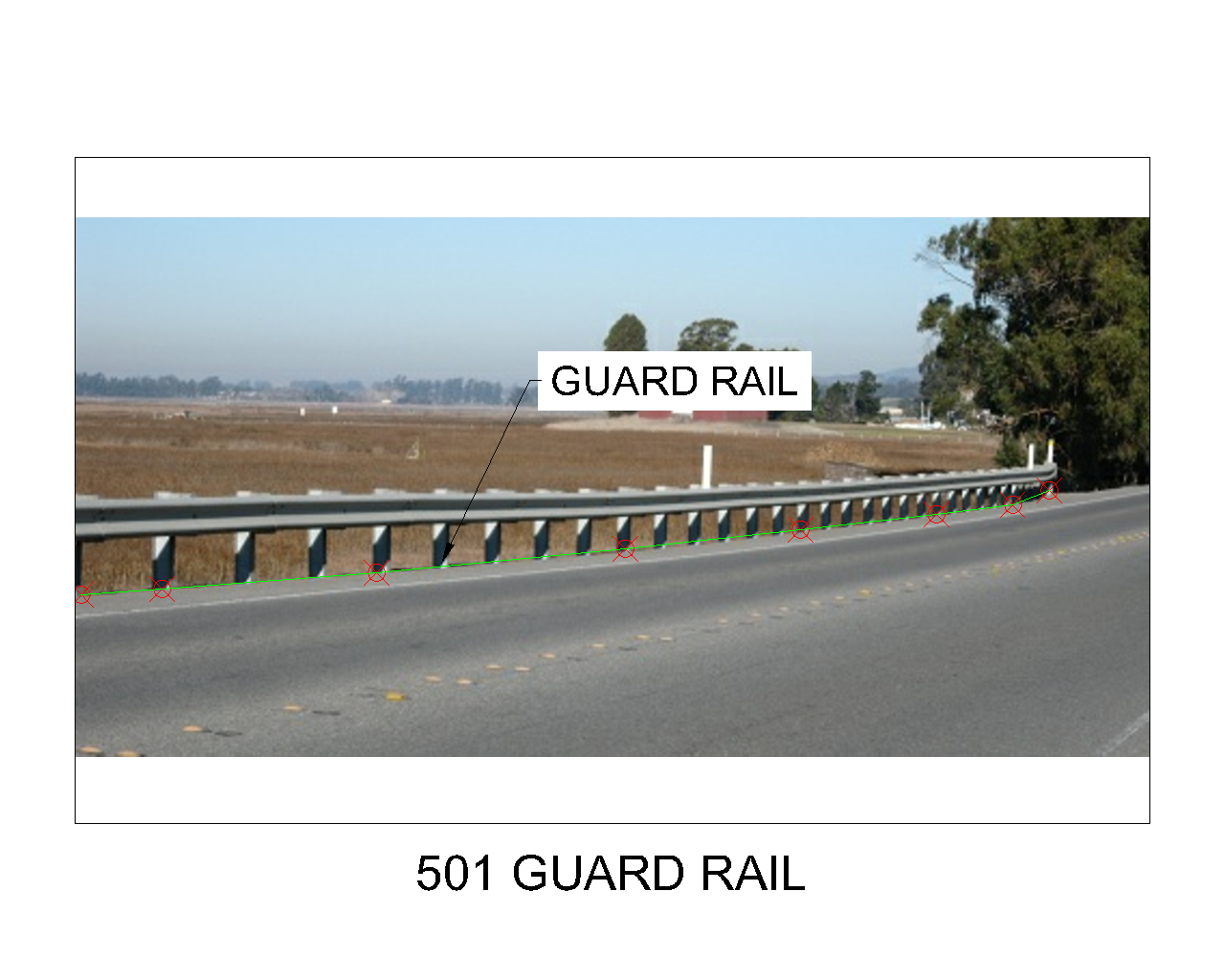

# 501 Guard Rail
CAD Layer - ROAD_FURNITURE_GUARD_RAIL
3D String along the base of the guard rail.
This feature is included as part of the TIN.

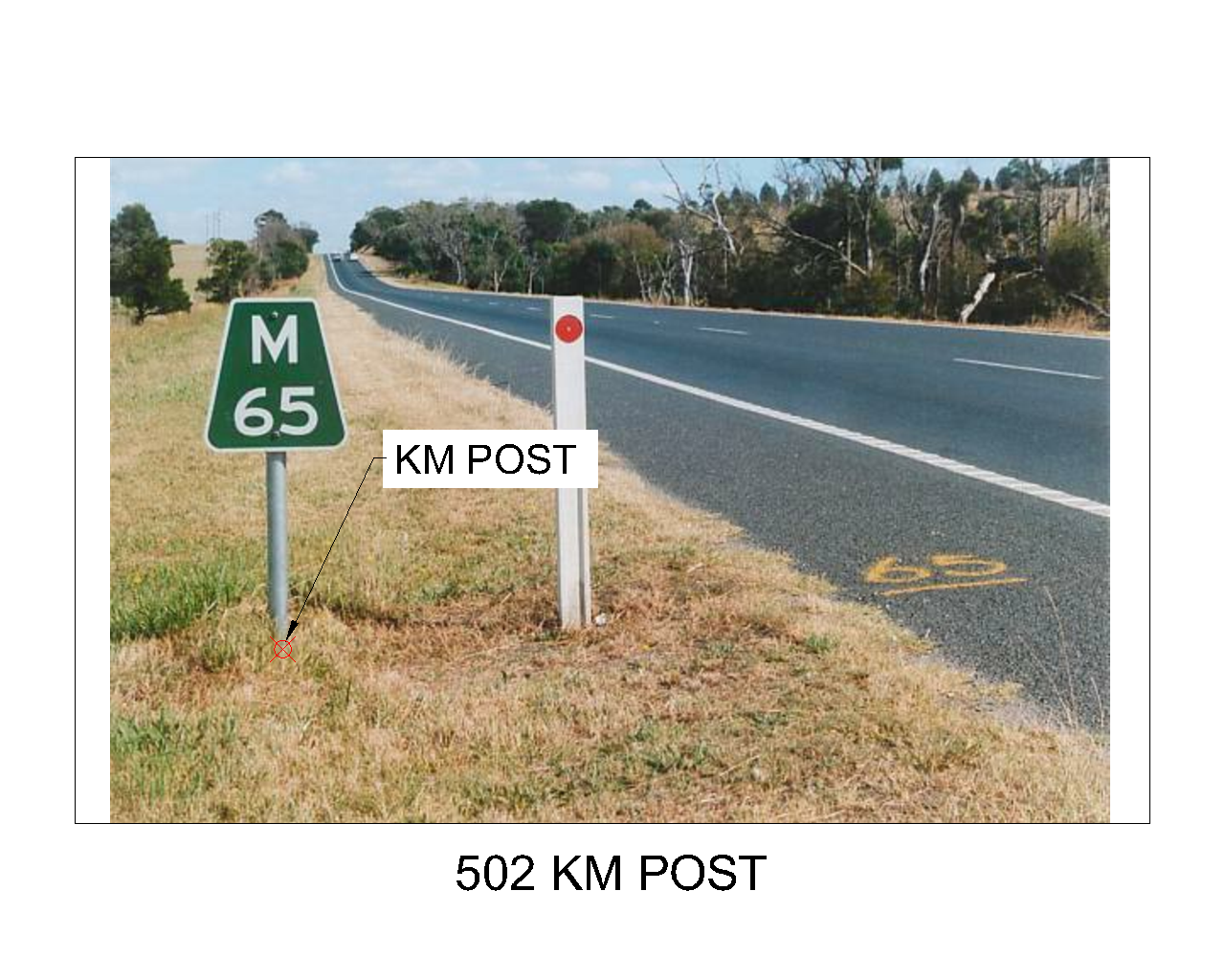

# 502 KM Post
CAD Layer - ROAD_FURNITURE_KM_POST
3D Point at the base of the KM post.
This feature is included as part of the TIN.

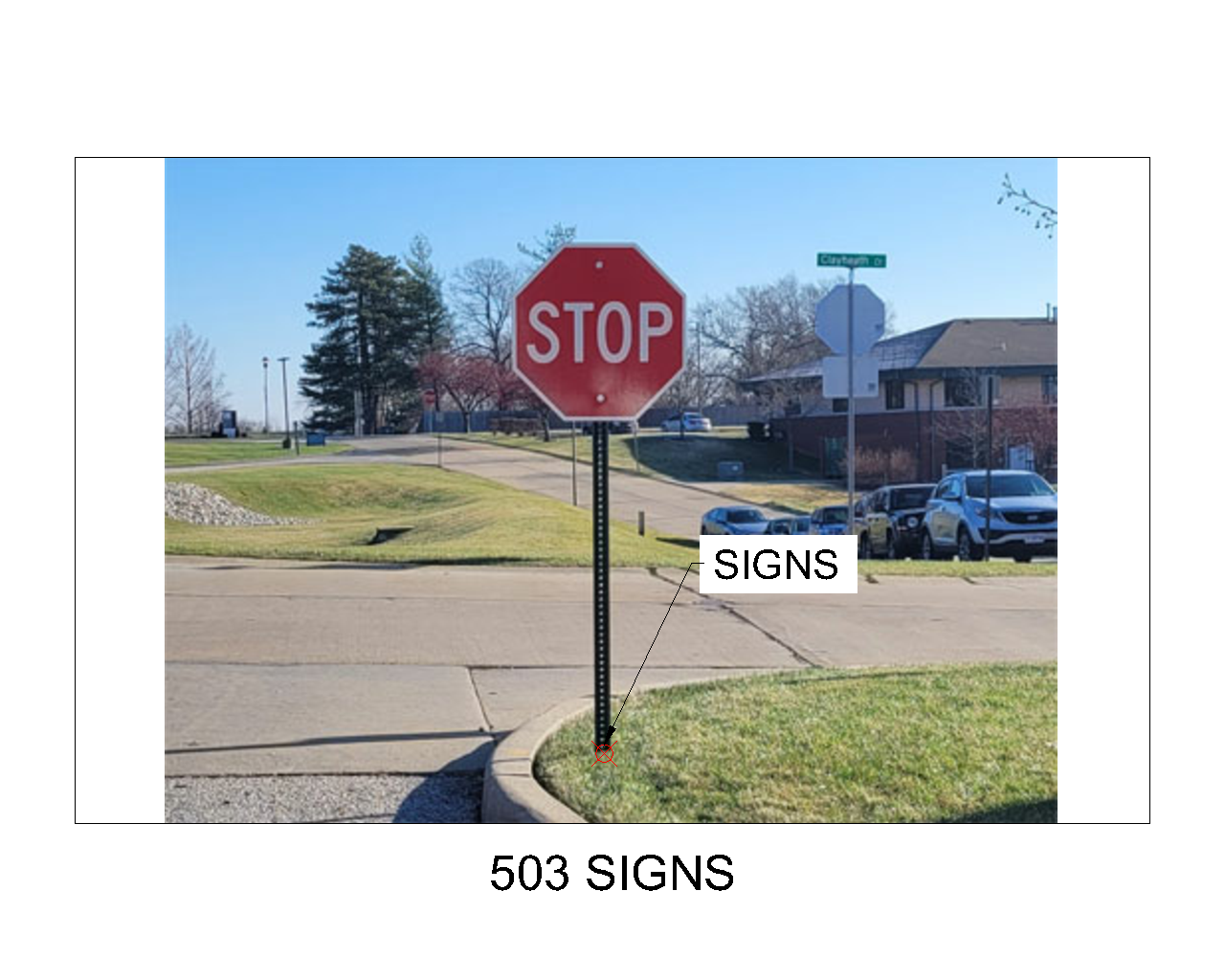

# 503 Signs
CAD Layer - ROAD_FURNITURE_SIGNS
3D Point at the base of the sign.
This feature is included as part of the TIN.
# 504 Letter Box
CAD Layer - ROAD_FURNITURE_LETTER_BOX
3D String around the base of the letter box.
This feature is included as part of the TIN.

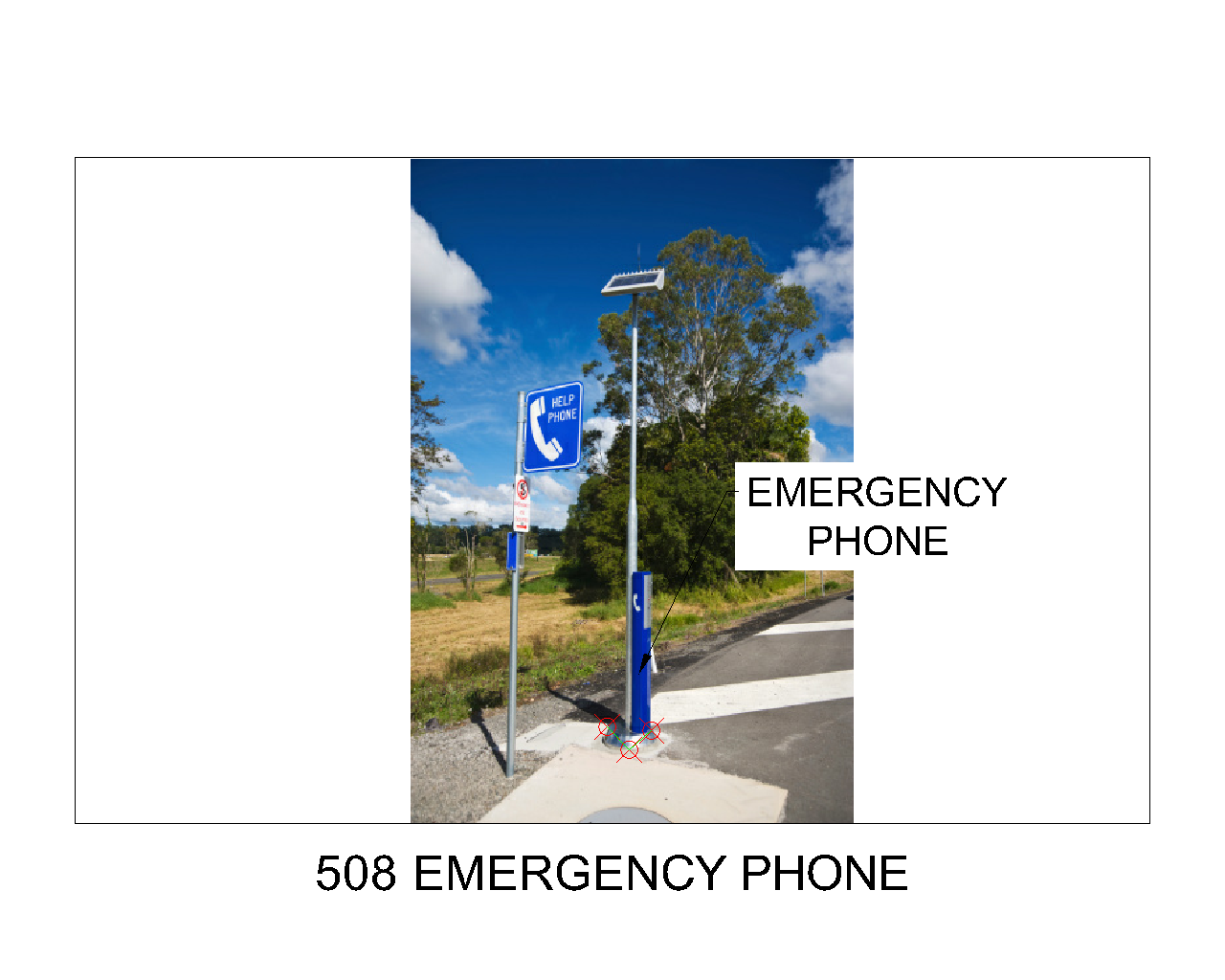

# 508 Emergency Phone
CAD Layer - ROAD_FURNITURE_EMERGENCY_PHONE
3D String around the base of the emergency phone.
This feature is included as part of the TIN.

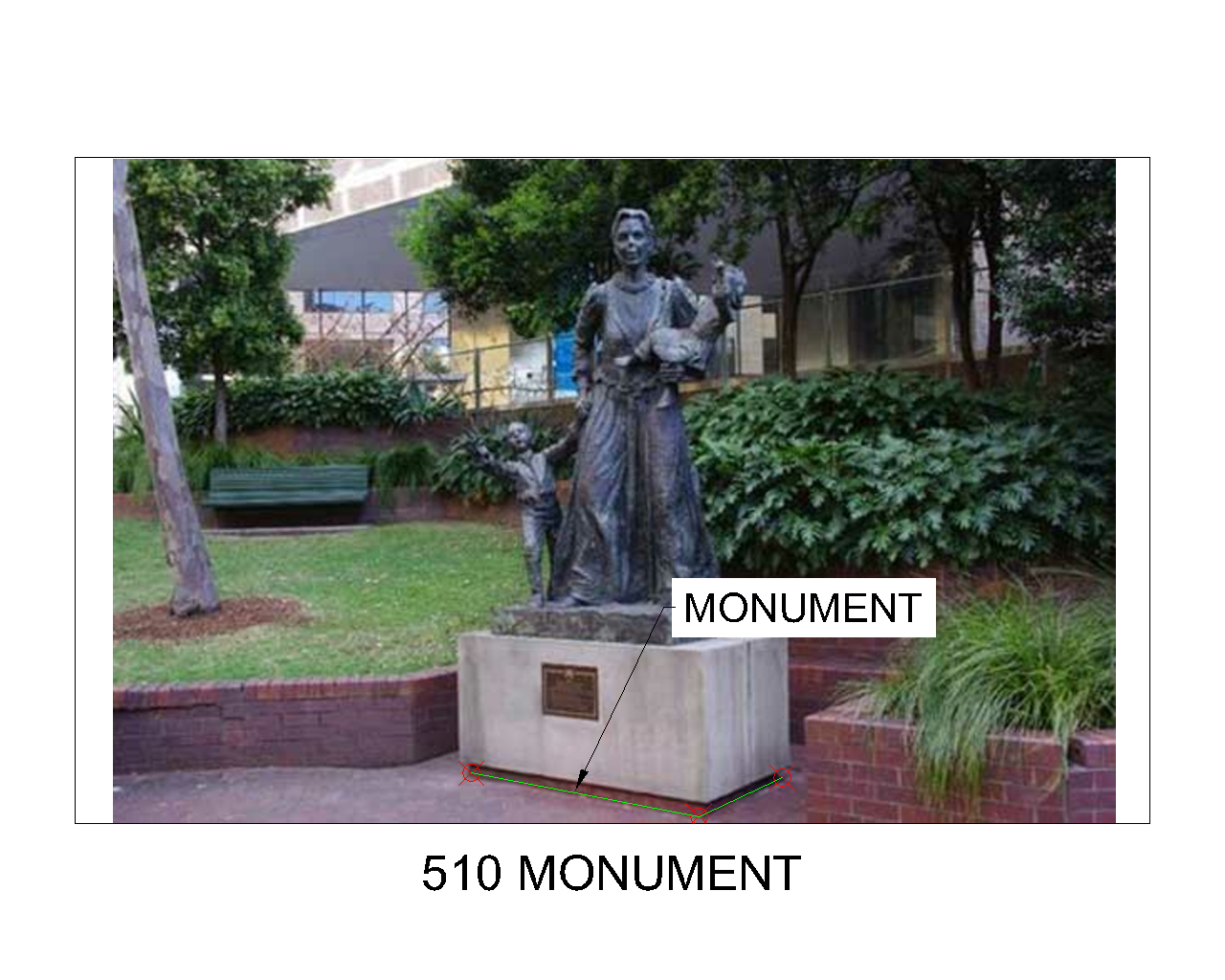

# 510 Monument
CAD Layer - ROAD_FURNITURE_MONUMENT
3D String around the base of the monumnet.
This feature is included as part of the TIN.

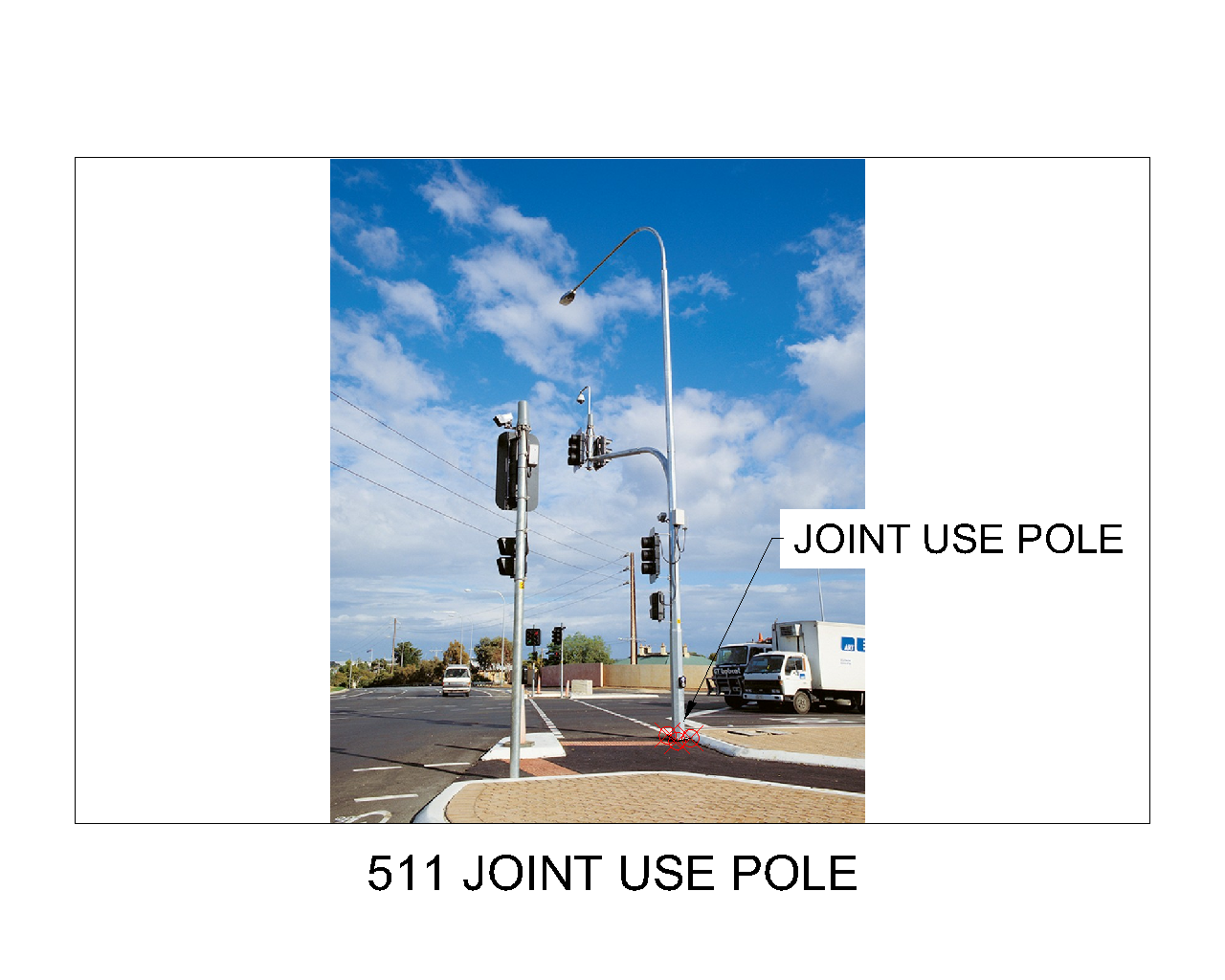

# 511 Joint Use Pole
CAD Layer - TRAFFIC_JOINT_USE_POLE
3D String around the base of the joint use pole.
This feature is included as part of the TIN.

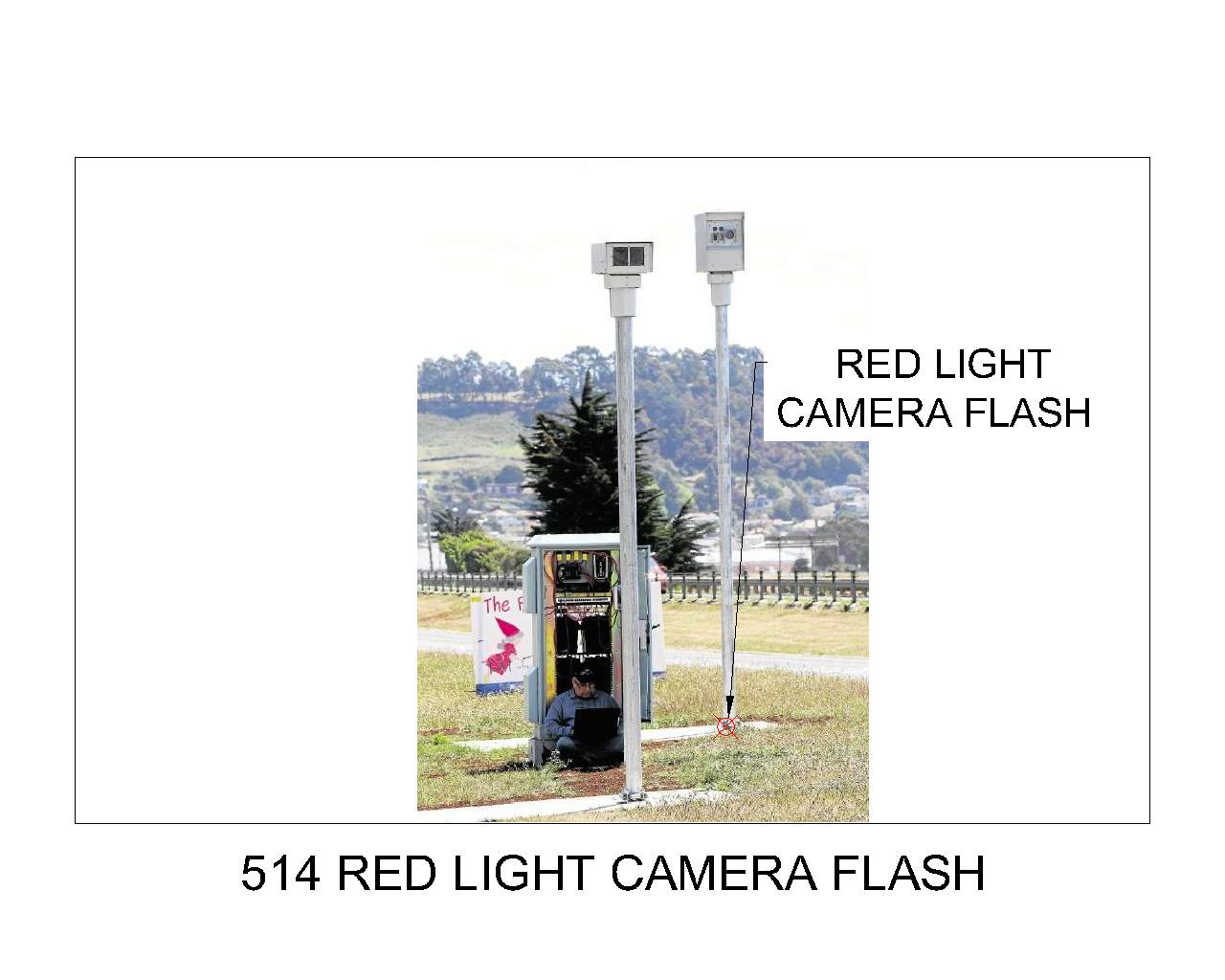

# 514 Red Light Camera Flash
CAD Layer - TRAFFIC_RED_LIGHT_CAMERA_FLASH
3D Point at the base of the red light camera flash.
This feature is included as part of the TIN.

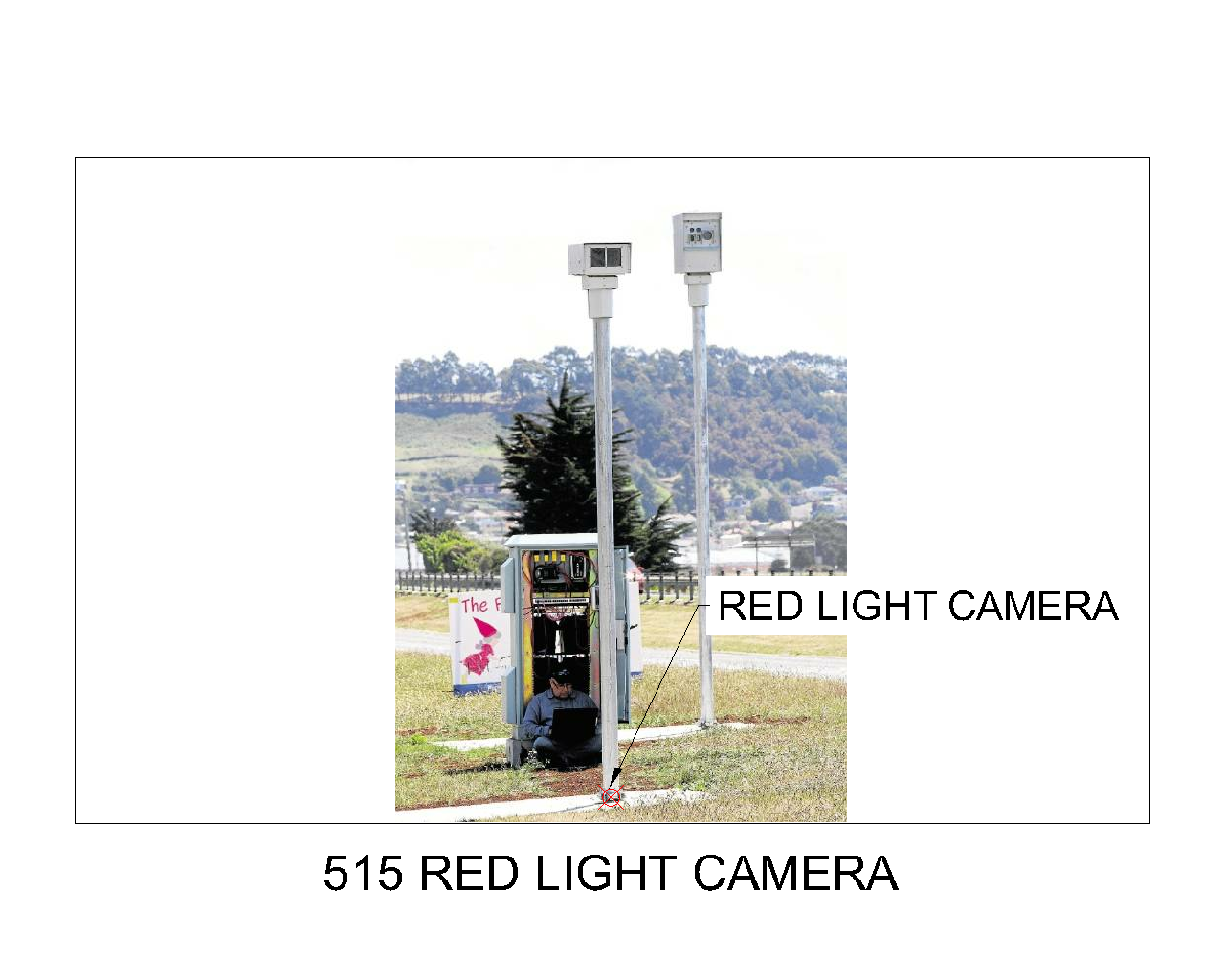

# 515 Red Light Camera
CAD Layer - TRAFFIC_RED_LIGHT_CAMERA
3D Point at the base of the red light camera.
This feature is included as part of the TIN.

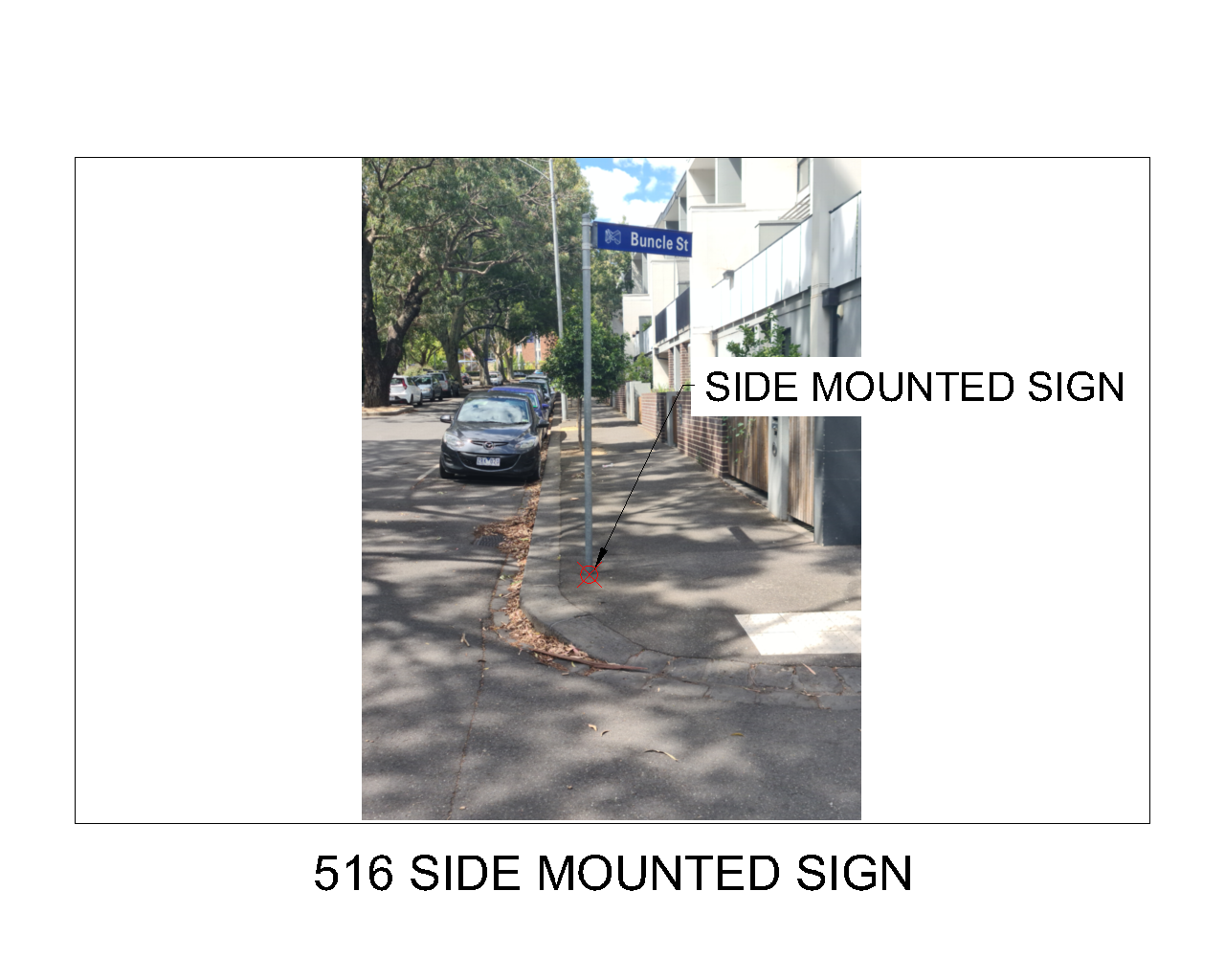

# 516 Side Mounted Sign
CAD Layer - TRAFFIC_SIDE_MOUNTED_SIGN
3D Point at the base of the side mounted sign.
This feature is included as part of the TIN.

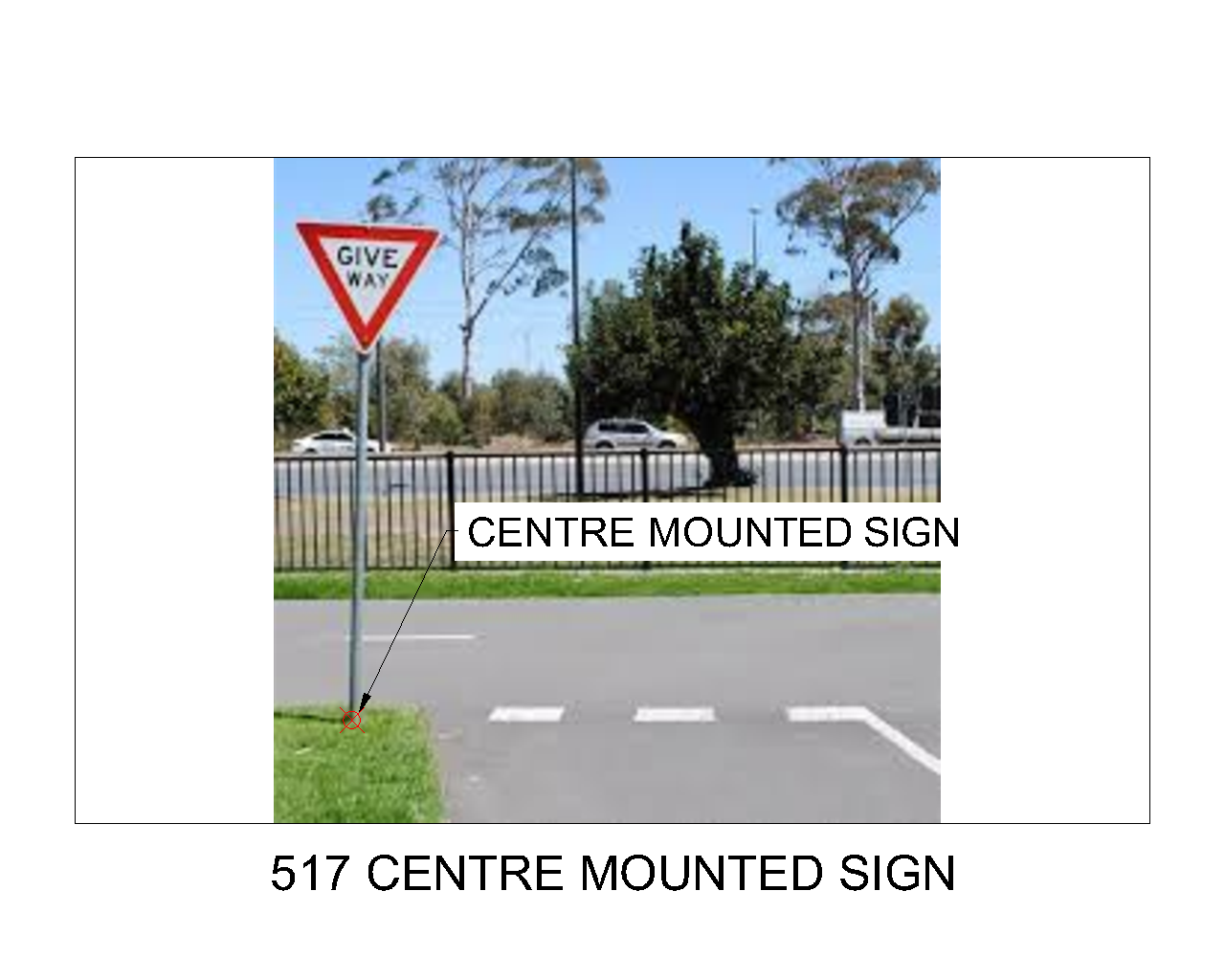

# 517 Centre Mounted Sign
CAD Layer - TRAFFIC_CENTRE_MOUNTED_SIGN
3D Point at the base of the centre mounted sign.
This feature is included as part of the TIN.

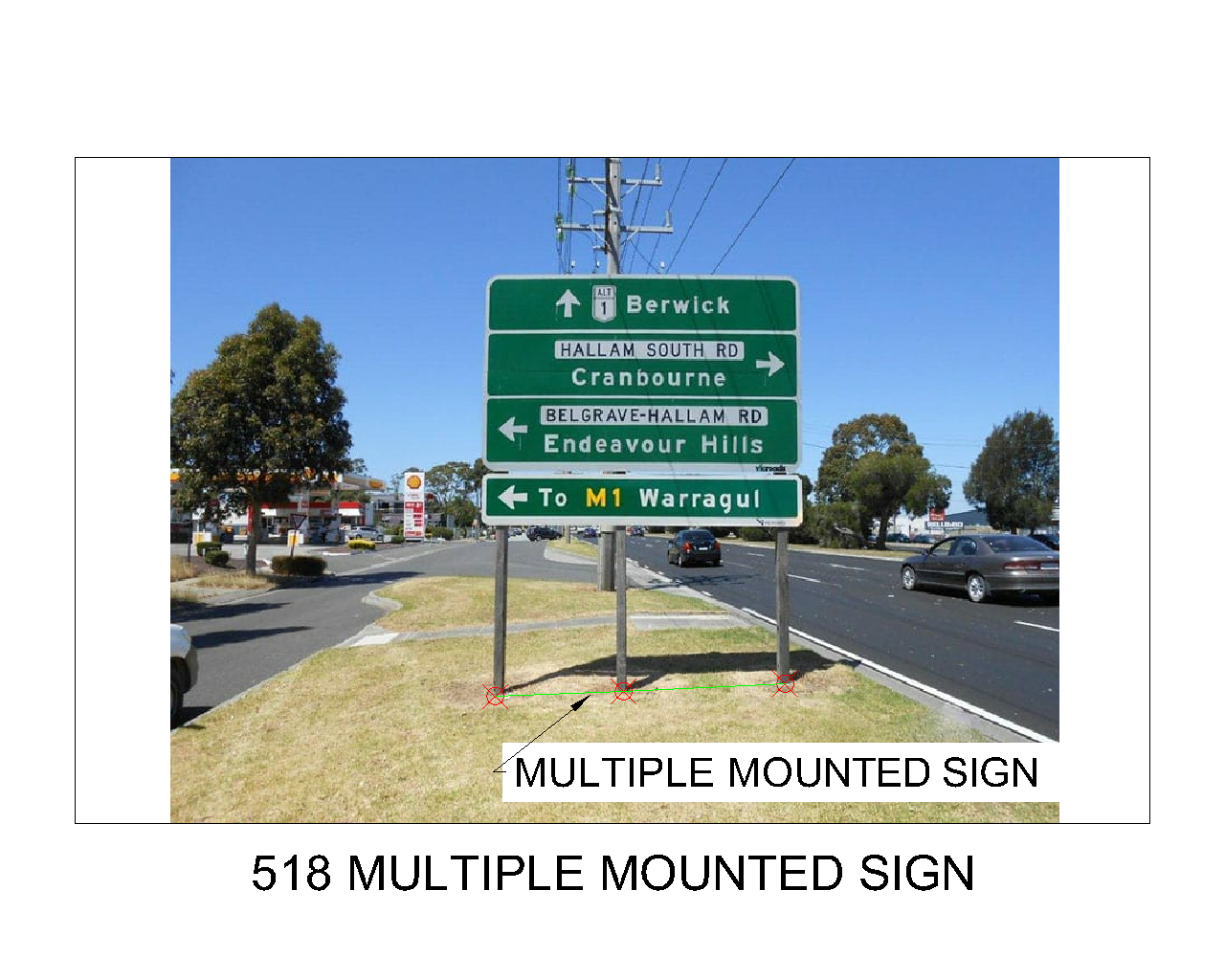

# 518 Multiple Mounted Sign
CAD Layer - TRAFFIC_MULTIPLE_MOUNTED_SIGN
3D String along the base of the multiple mounted sign.
This feature is included as part of the TIN.
# 518 Multiple Mounted Sign
CAD Layer - TRAFFIC_MULTIPLE_MOUNTED_SIGN
3D String along the base of the multiple mounted sign.
This feature is included as part of the TIN.

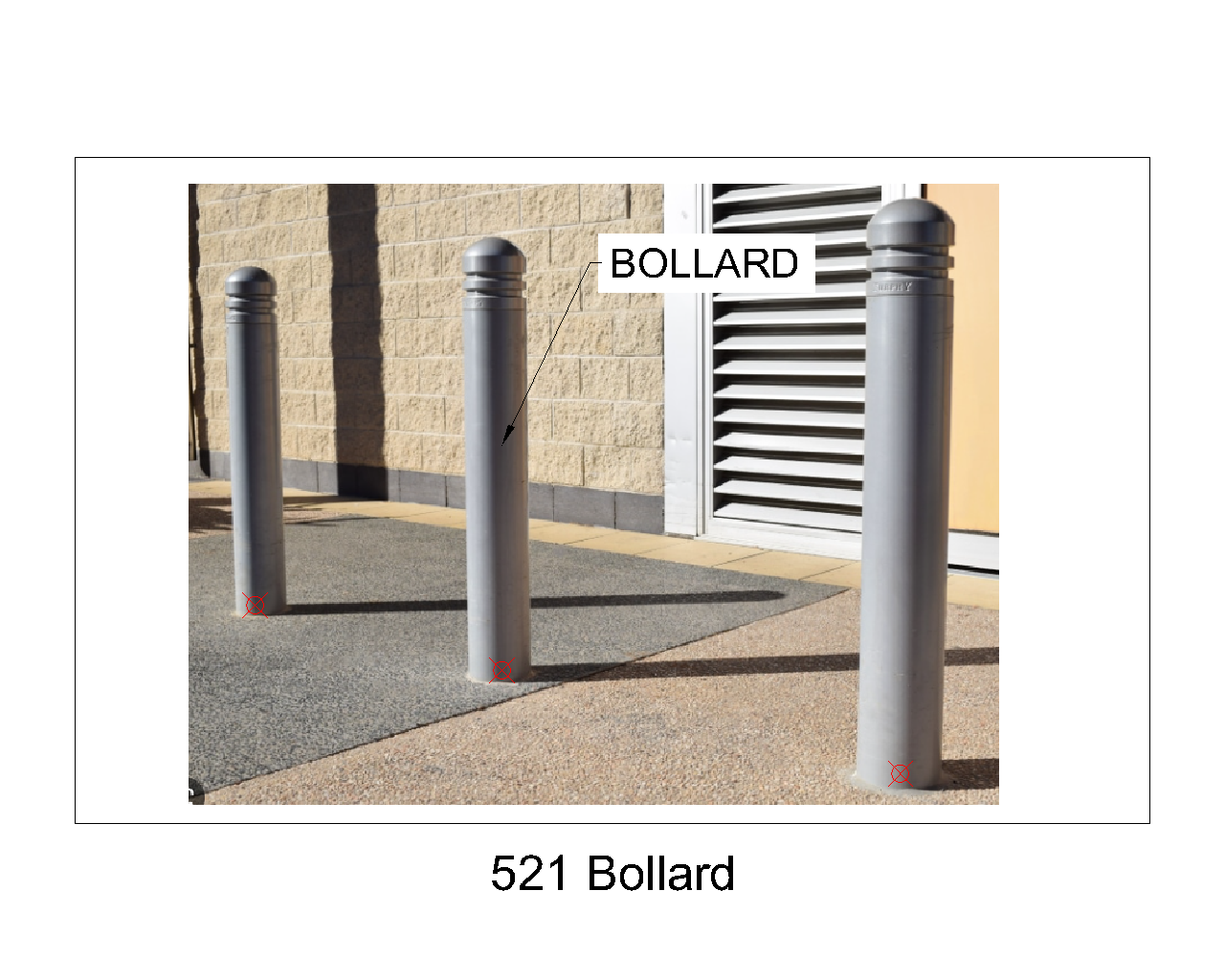

# 521 Bollard
CAD Layer - ROAD_FURNITURE_BOLLARD
3D point at the centre of the bollard.
This feature is included as part of the TIN.

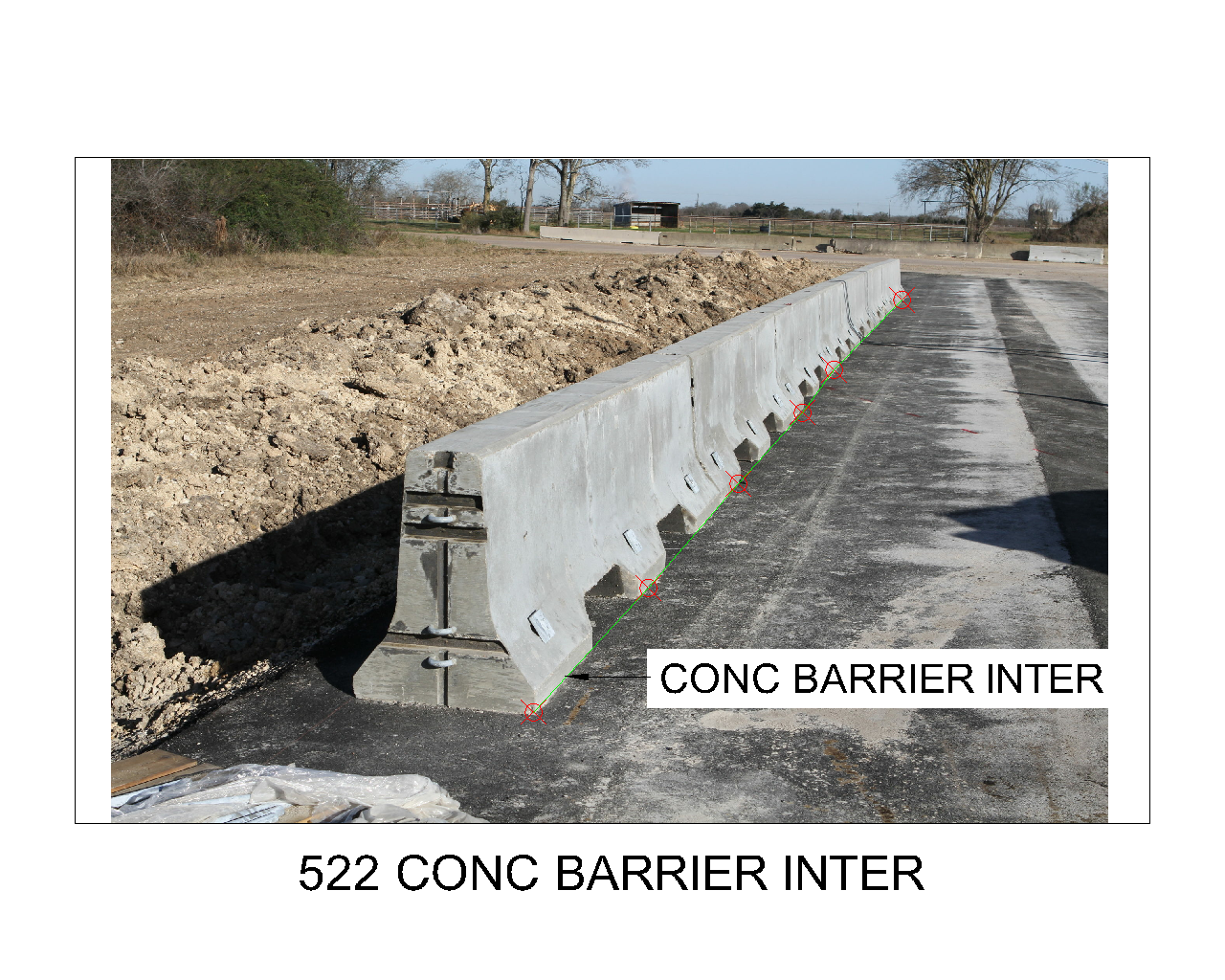

# 522 Conc Barrier Inter
CAD Layer - ROAD_FURNITURE_CONC_BARRIER_INTER
3D String at the interior of the concrete barrier.
This feature is included as part of the TIN.

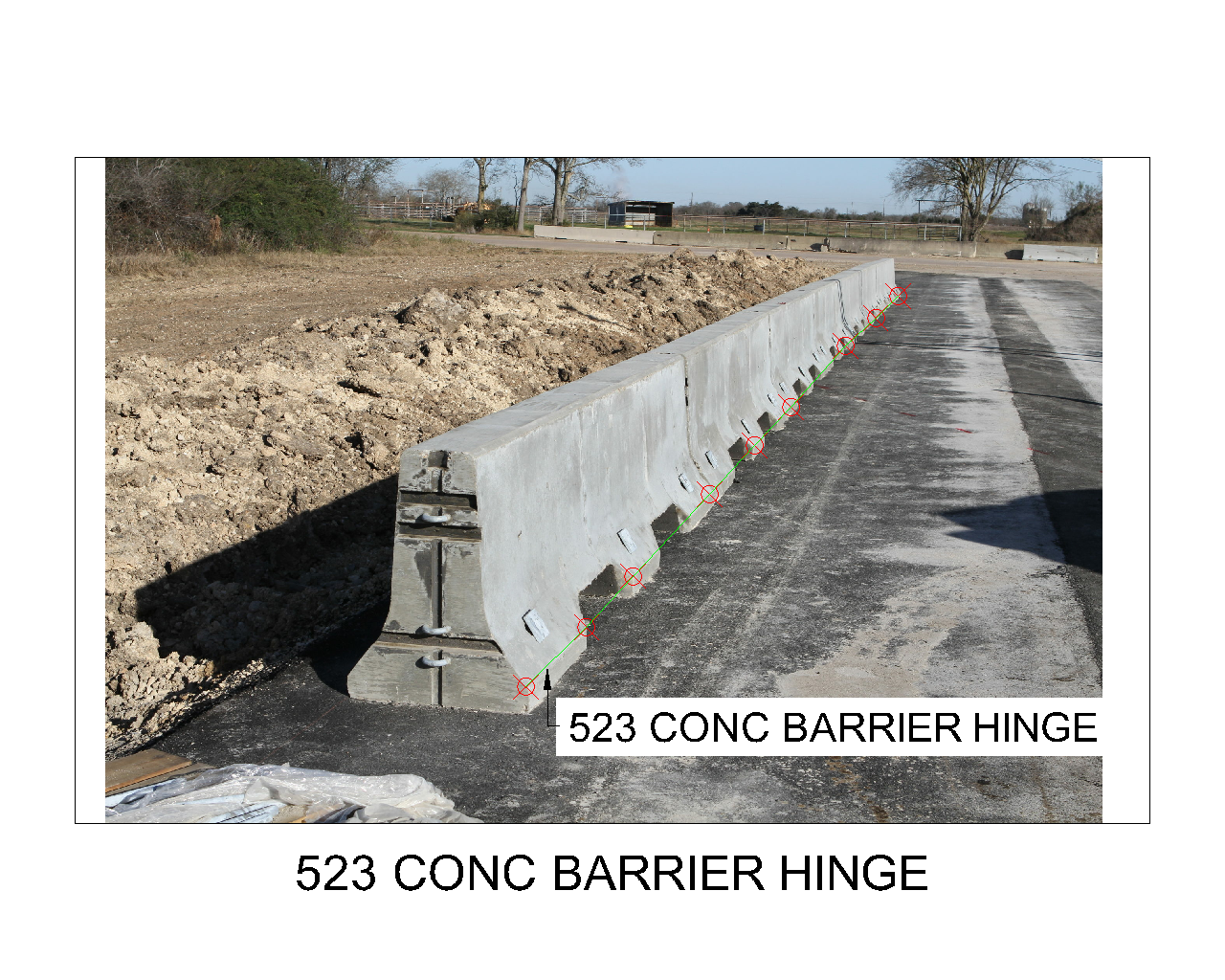

# 523 Conc Barrier Hinge
CAD Layer - ROAD_FURNITURE_CONC_BARRIER_HINGE
3D String at the hinge of the concrete barrier.
This feature is included as part of the TIN.

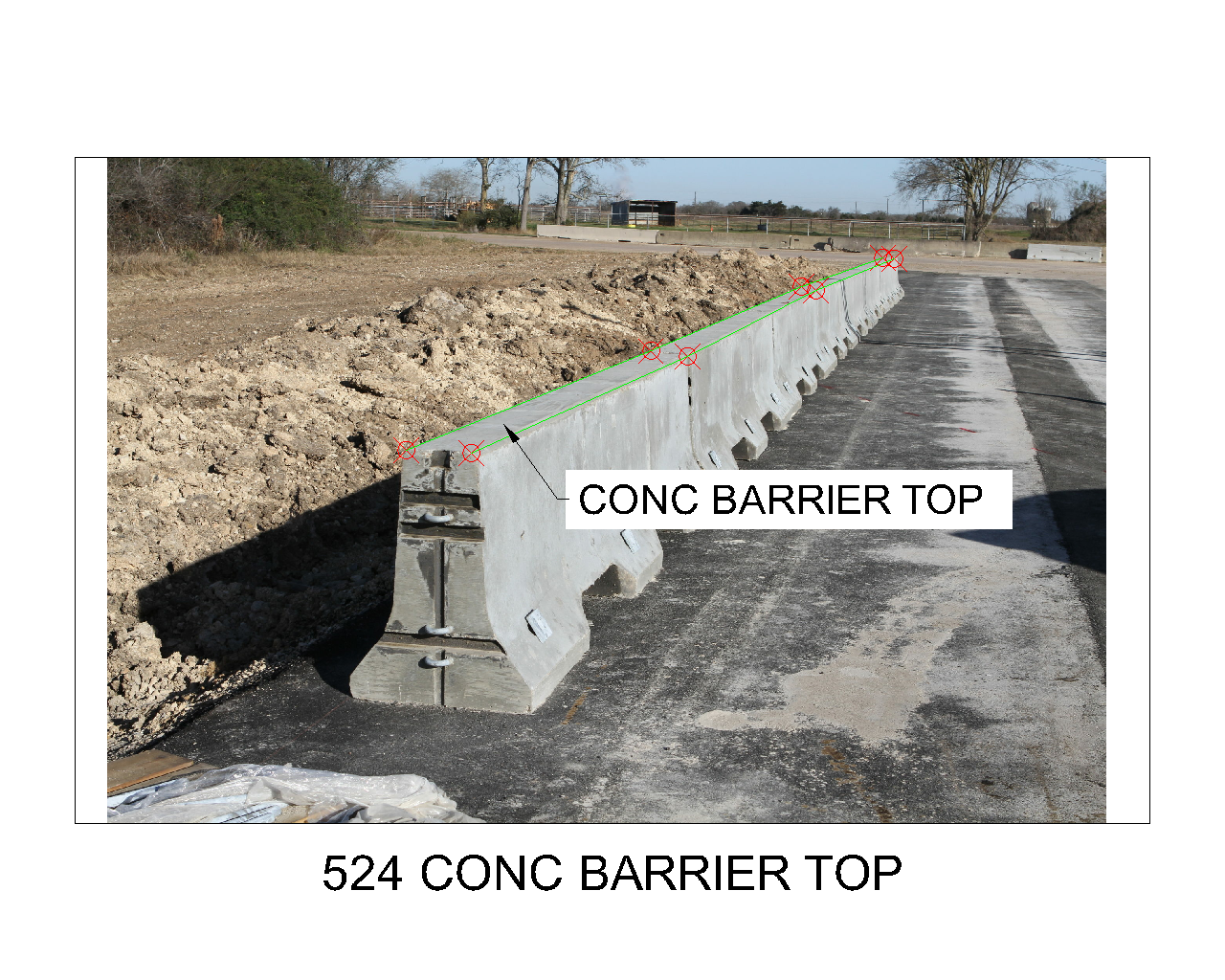

# 524 Conc Barrier Top
CAD Layer - ROAD_FURNITURE_CONC_BARRIER_TOP
3D String at the top of the concrete barrier.
This feature is included as part of the TIN.

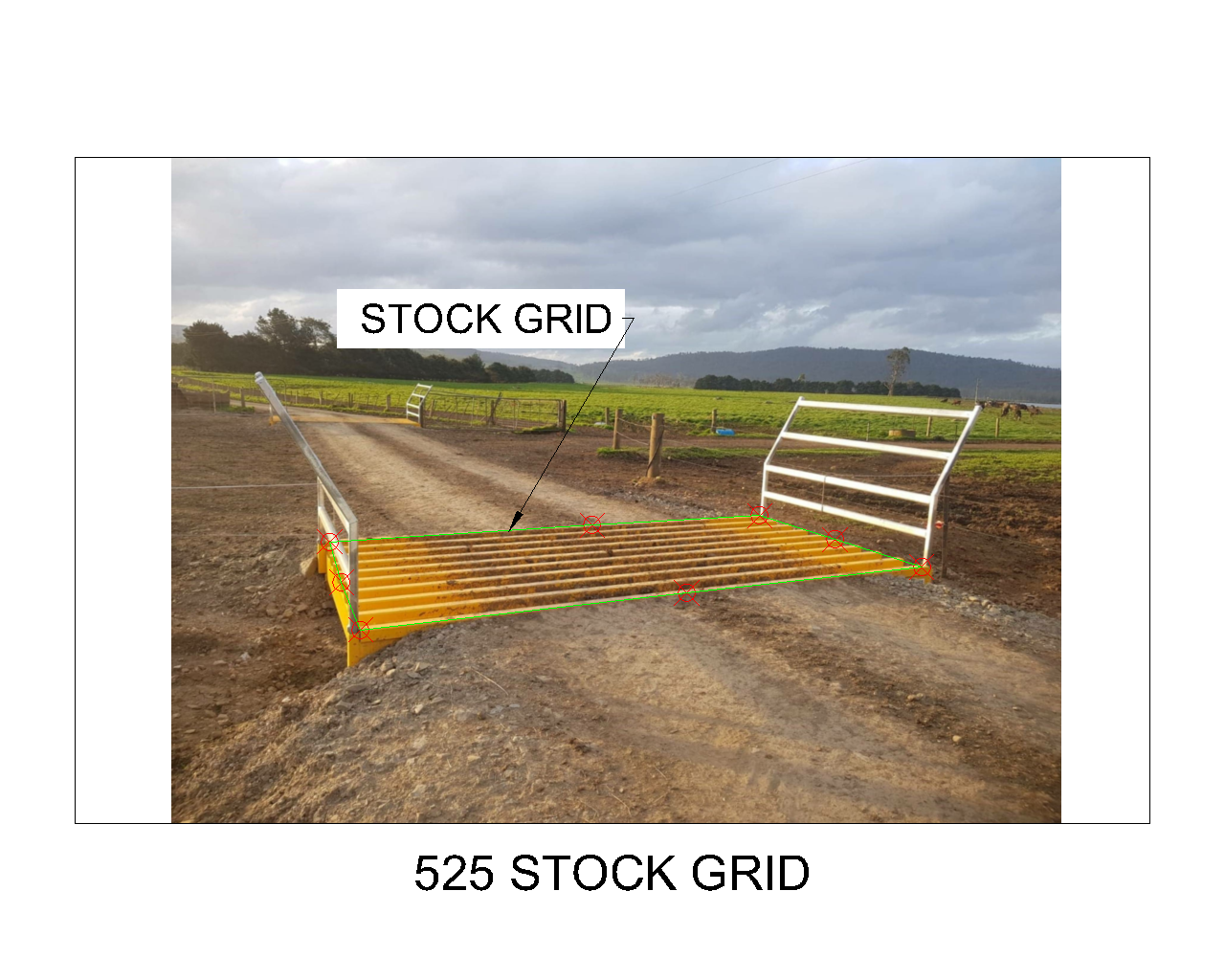

# 525 Stock Grid
CAD Layer - ROAD_FURNITURE_STOCK_GRID
3D String around the edge of the stock grid.
This feature is included as part of the TIN.

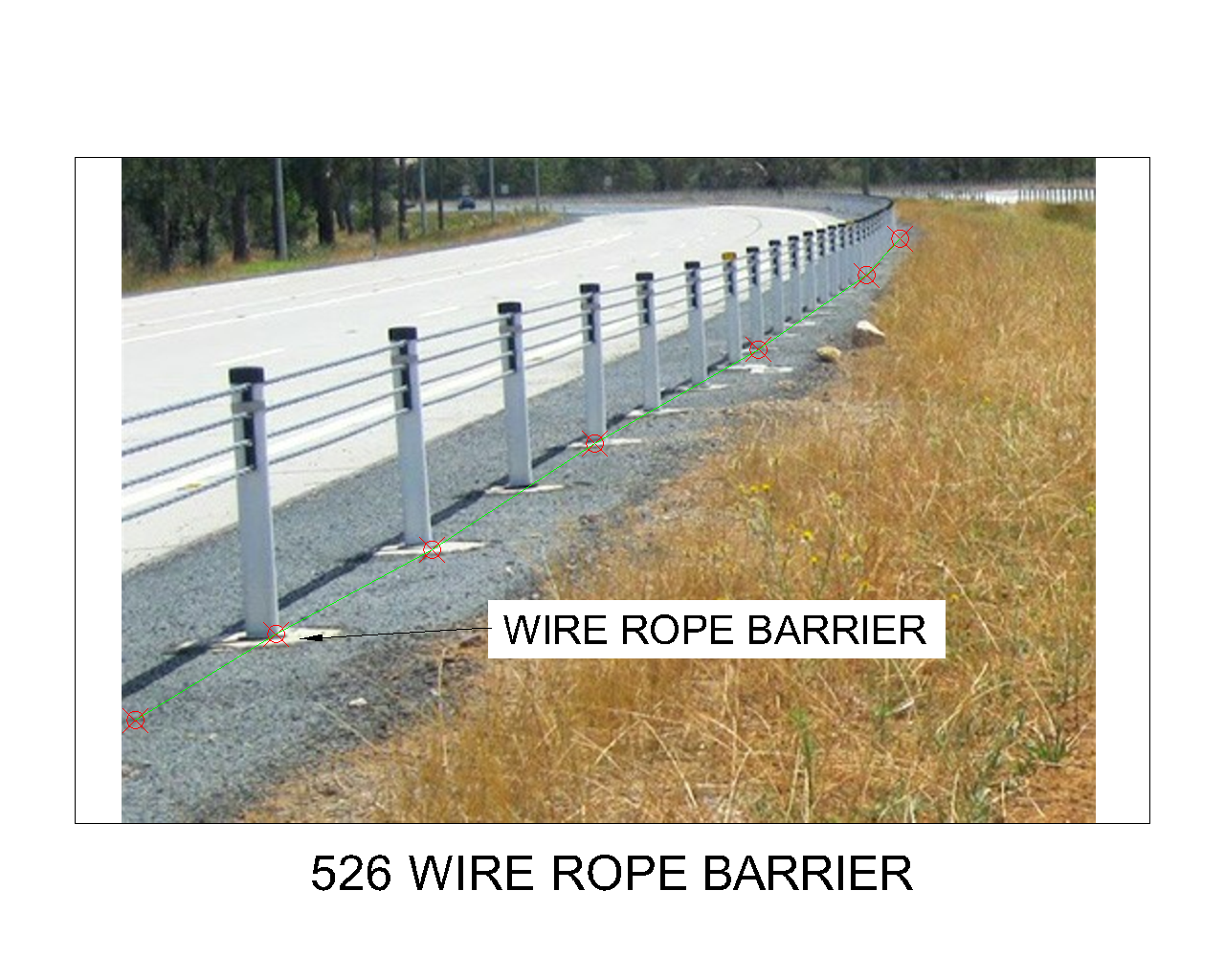

# 526 Wire Rope Barrier
CAD Layer - ROAD_FURNITURE_WIRE_ROPE_BARRIER
3D String along the base of the wire rope barrier.
This feature is included as part of the TIN.

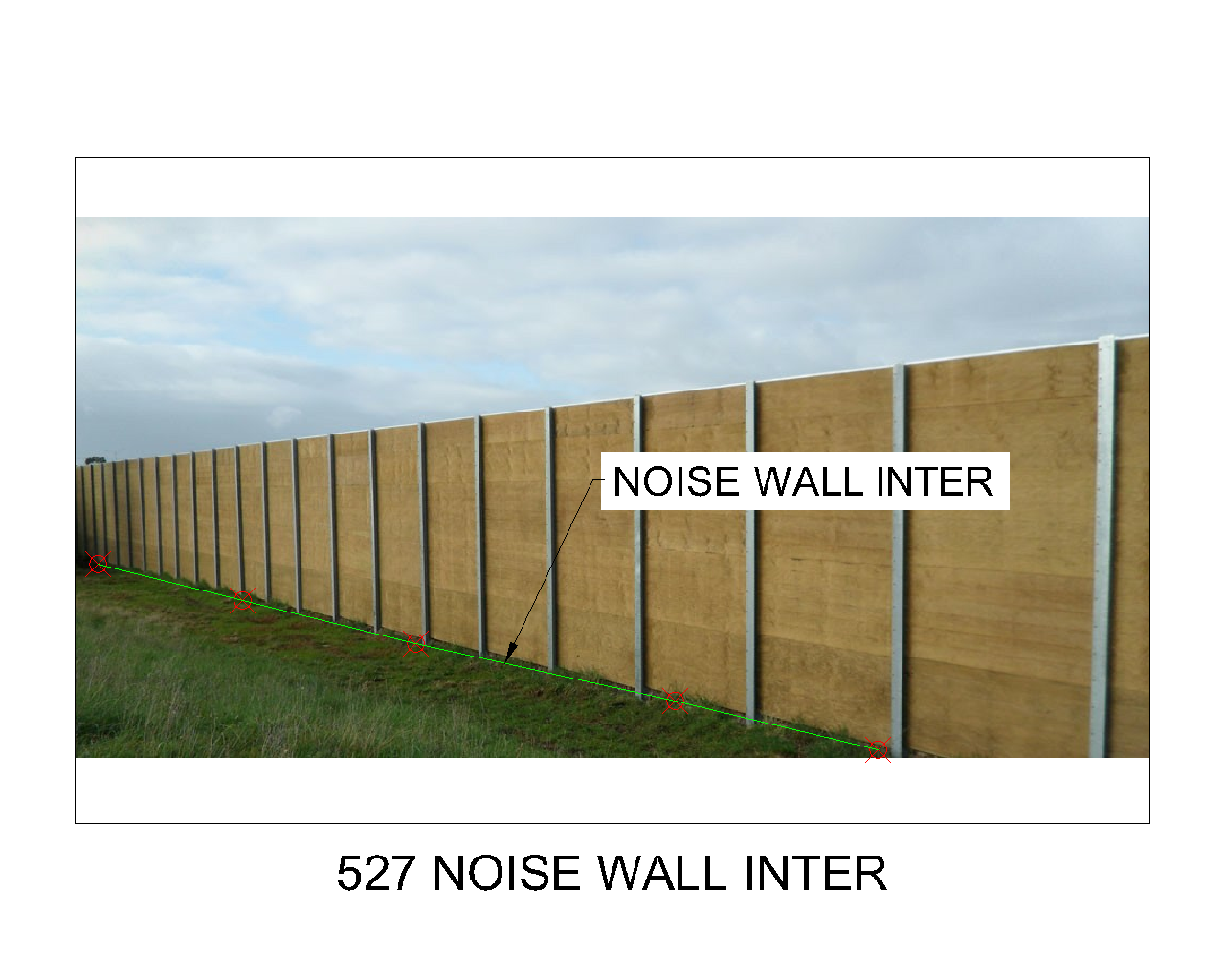

# 527 Noise Wall Inter
CAD Layer - ROAD_FURNITURE_NOISE_WALL_INTER
3D String along the interior of the noise wall interior.
This feature is included as part of the TIN.

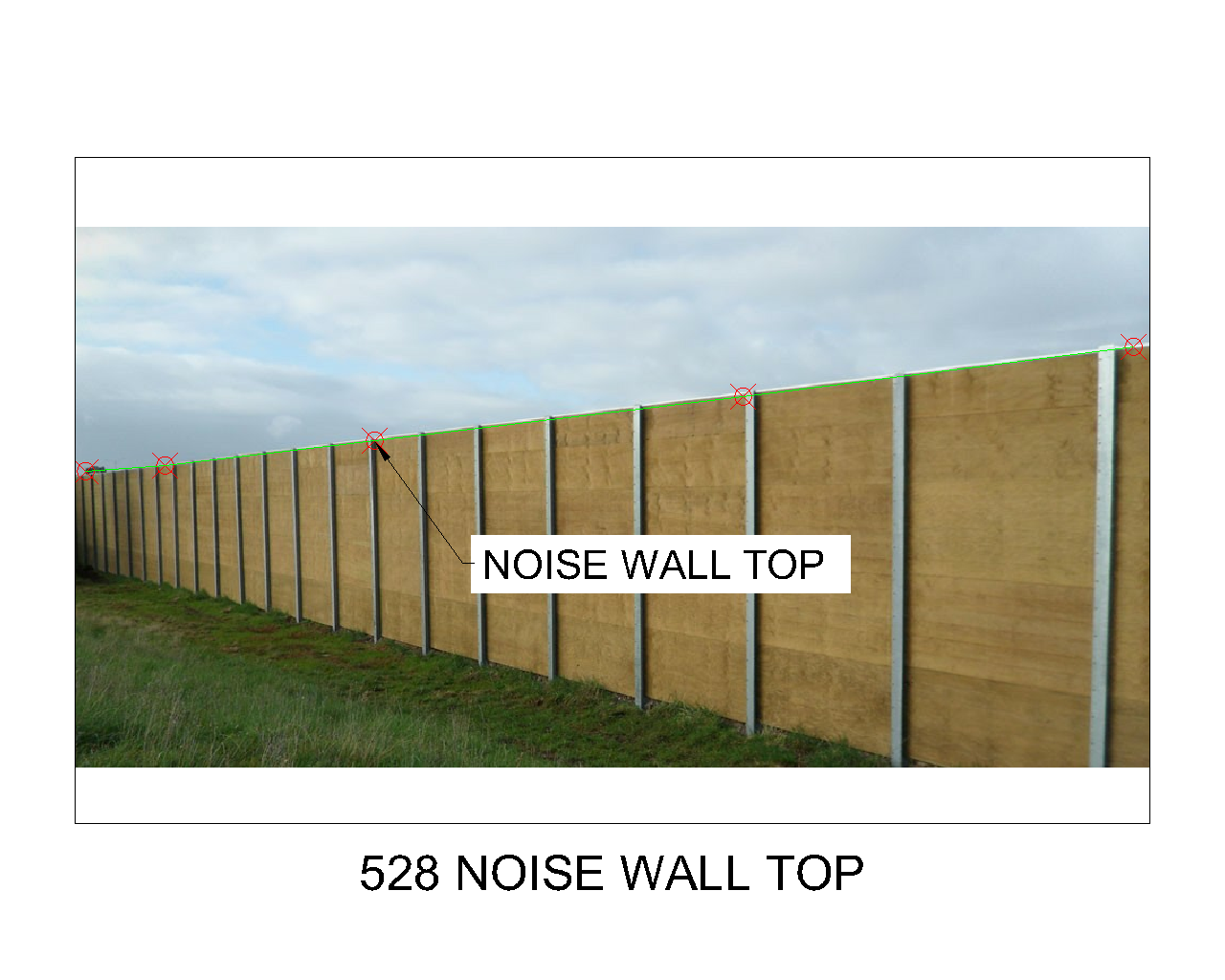

# 528 Noise Wall Top
CAD Layer - ROAD_FURNITURE_NOISE_WALL_TOP
3D String along the top of the noise wall interior.
This feature is included as part of the TIN.

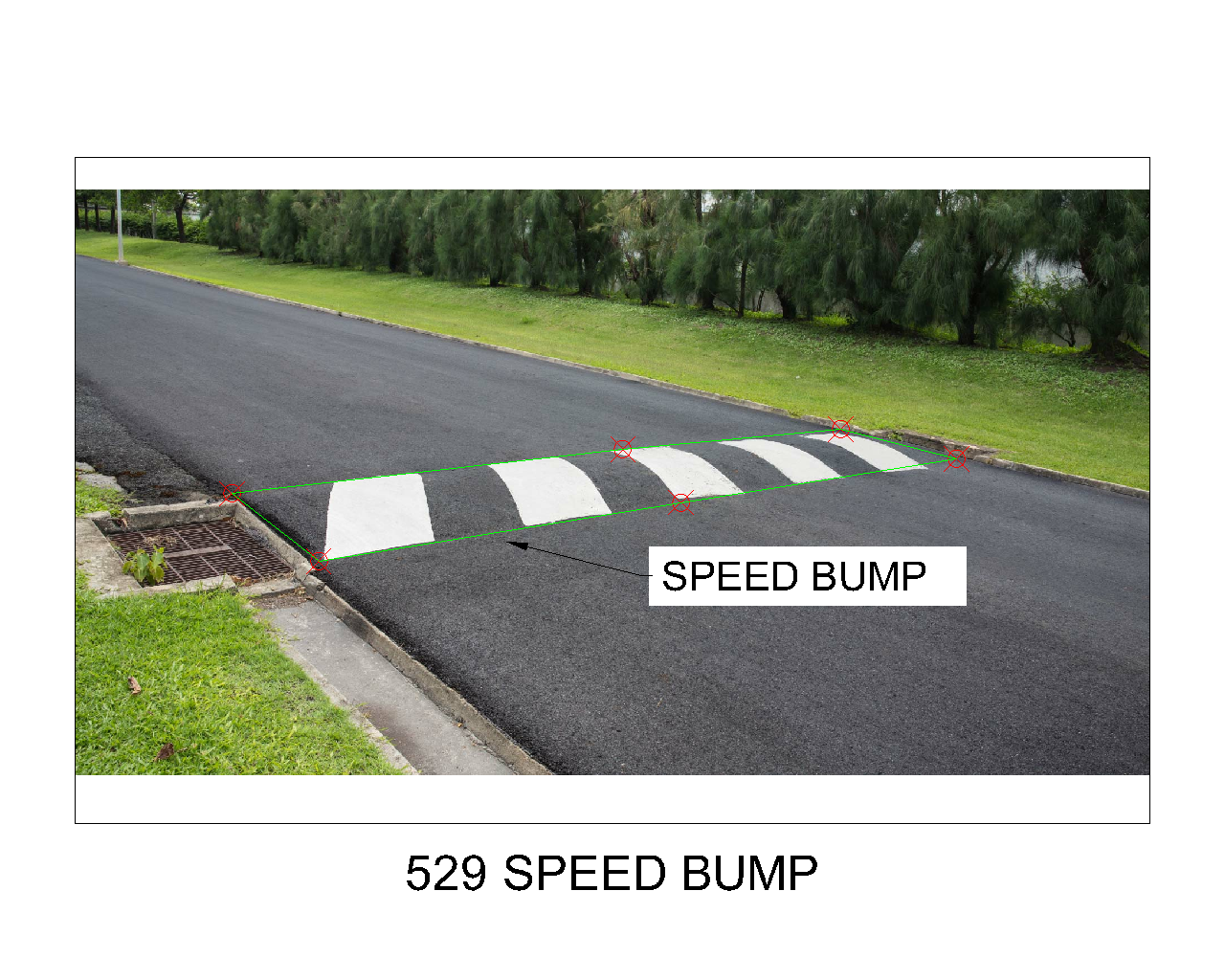

# 529 Speed Bump
CAD Layer - ROAD_FURNITURE_SPEED_BUMP
3D String aaround the edge of the speed bump.
This feature is included as part of the TIN.

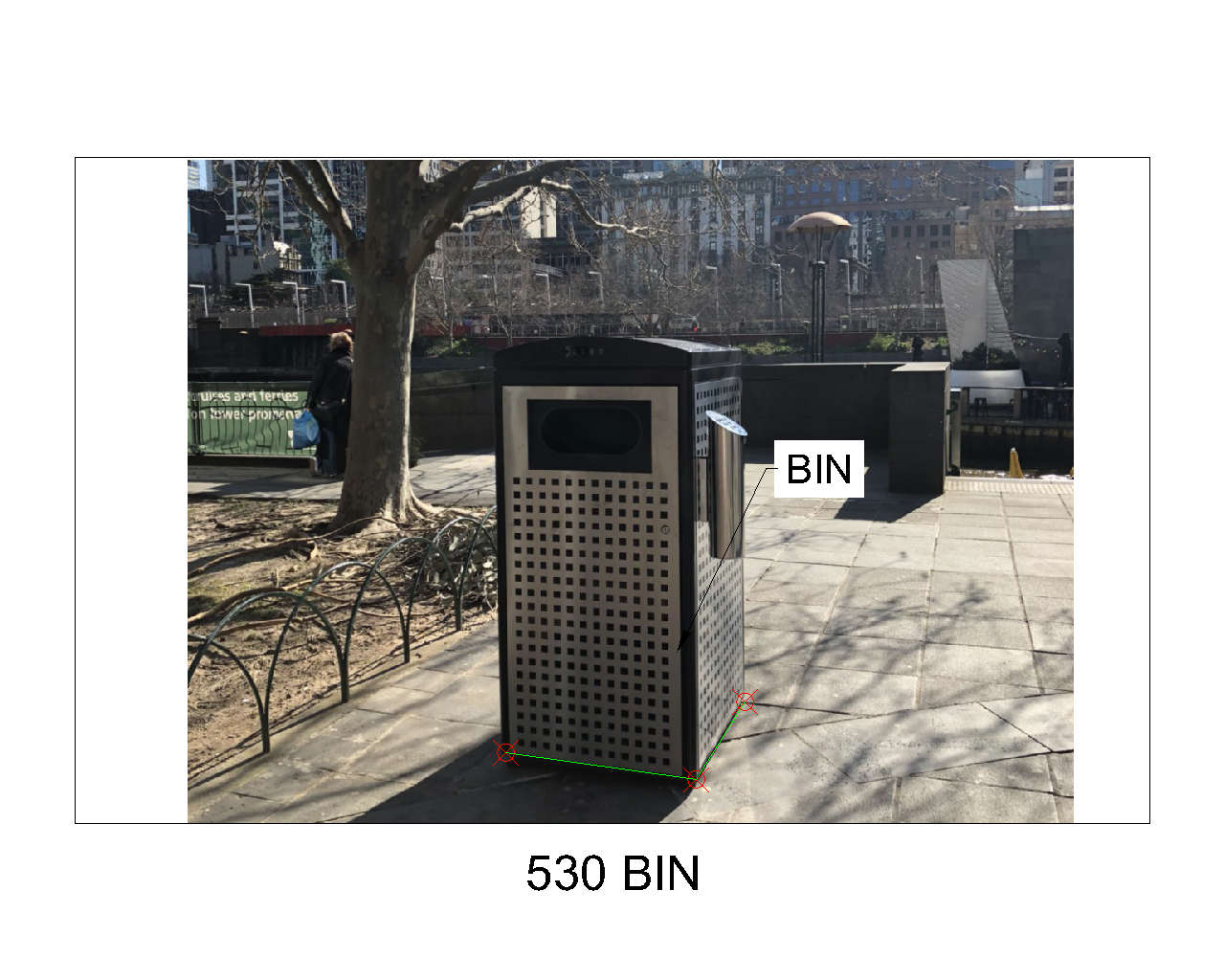

# 530 Bin
CAD Layer - ROAD_FURNITURE_BIN
3D String around the base of the bin.
This feature is included as part of the TIN.

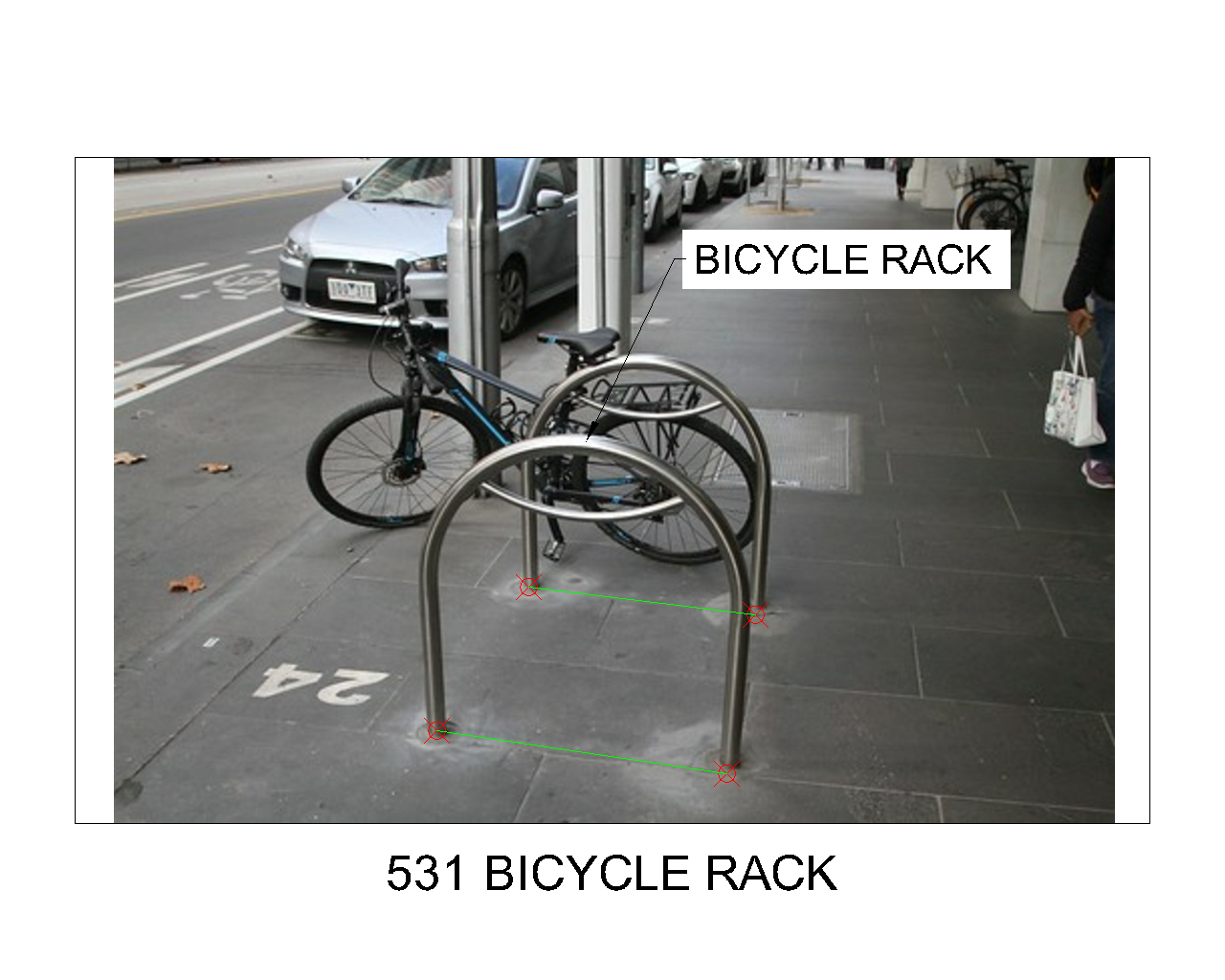

# 531 Bicycle Rack
CAD Layer - ROAD_FURNITURE_BICYCLE_RACK
3D String between the base legs of the bicycle rack.
This feature is included as part of the TIN.

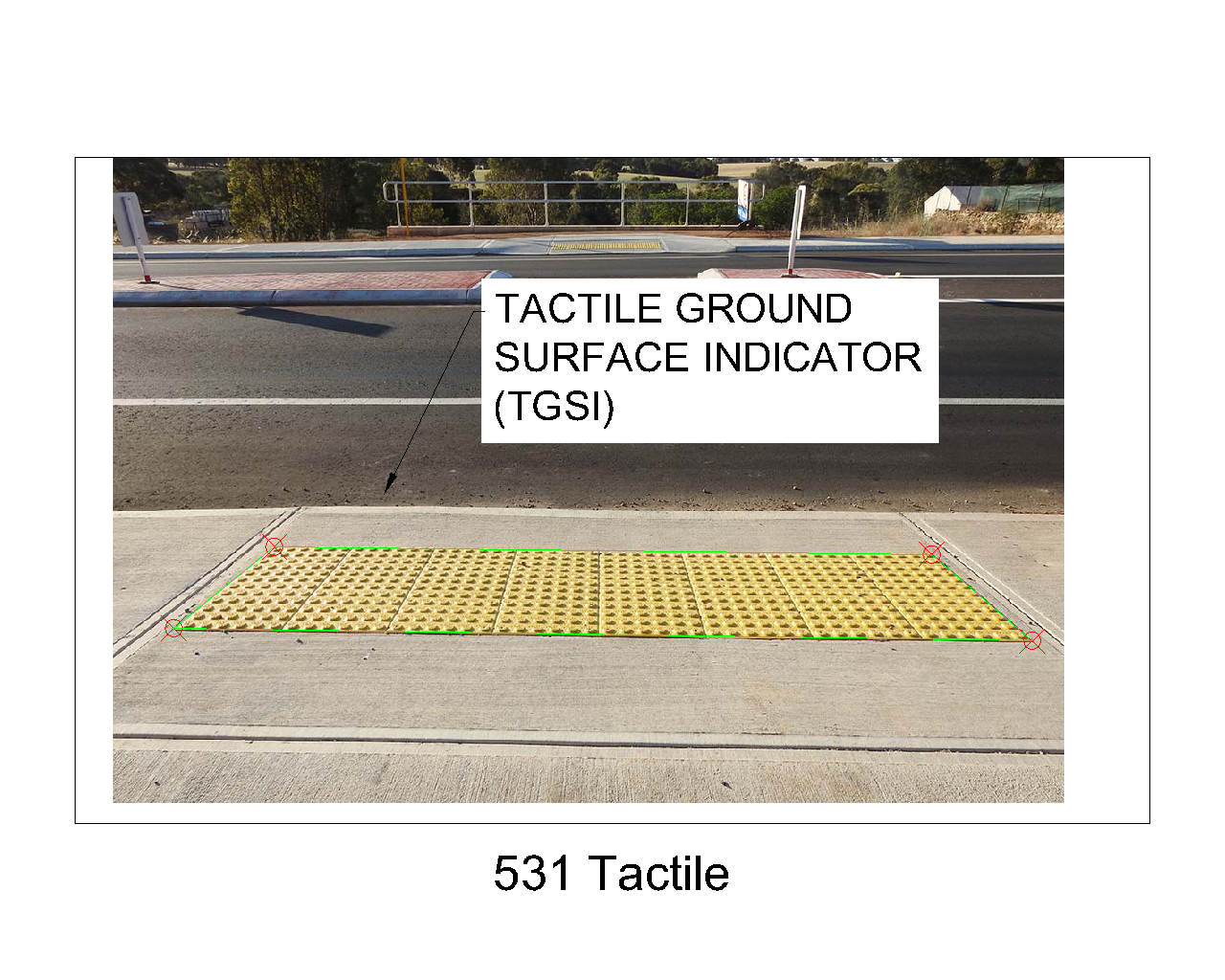

# 532 Tactile
CAD Layer - ROAD_FURNITURE_TACTILE
3D String around the outside of the tactile ground surface indicator.
This feature is included as part of the TIN

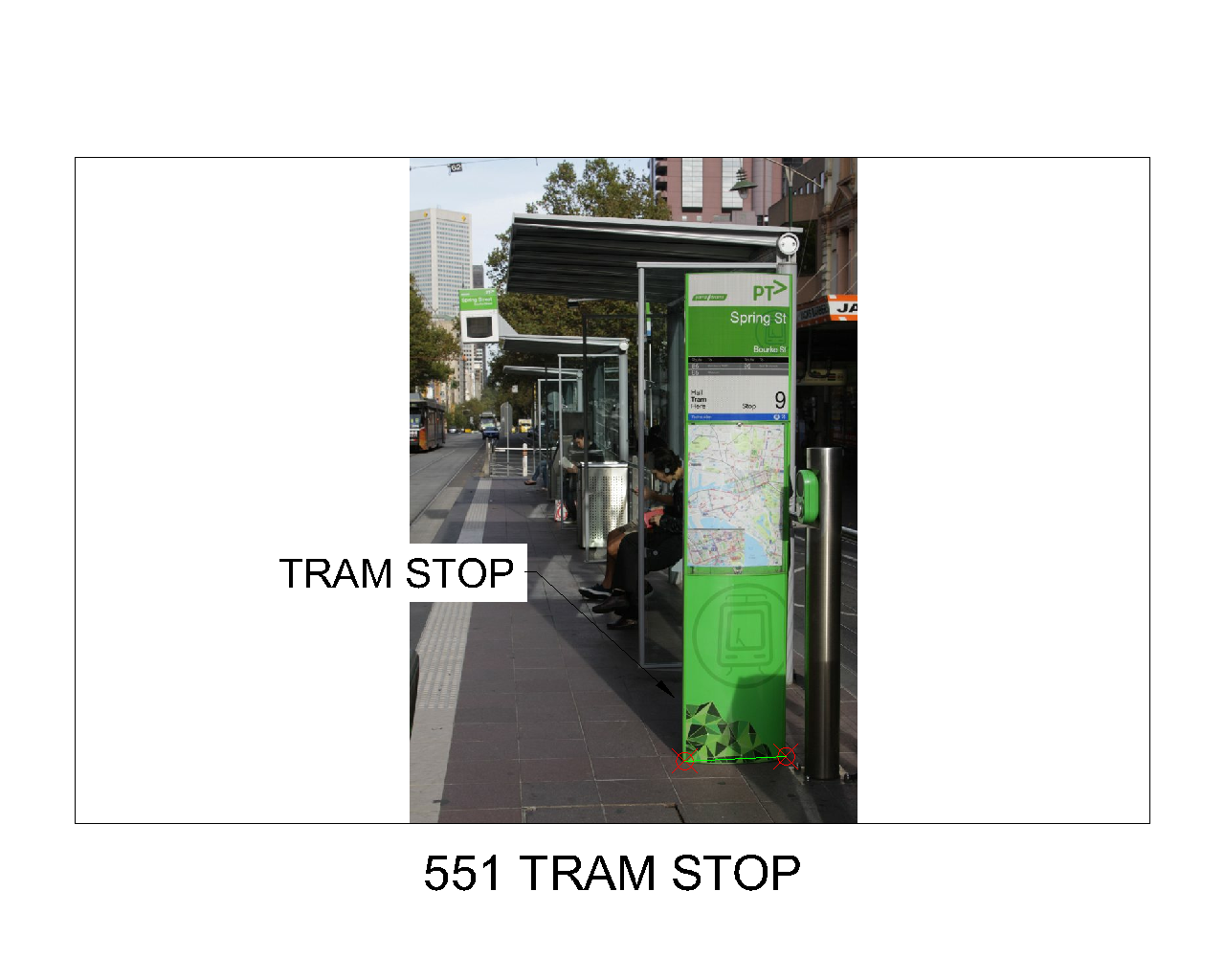

# 551 Tram Stop
CAD Layer - ROAD_FURNITURE_TRAM_STOP
3D String around the outside of the base of the tram stop.
This feature is included as part of the TIN.

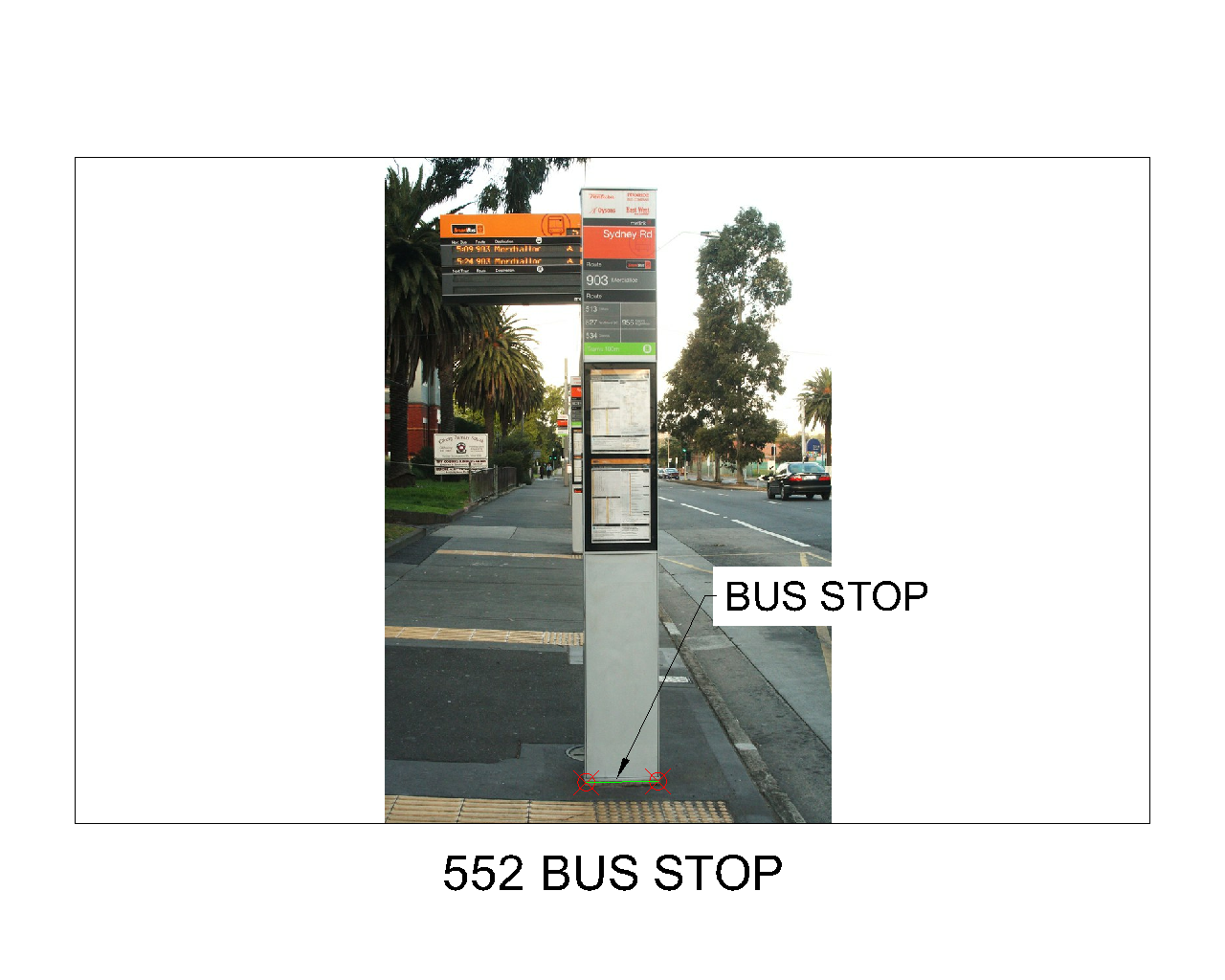

# 552 Bus Stop
CAD Layer - ROAD_FURNITURE_BUS_STOP
3D String around the outside of the base of the bus stop.
This feature is included as part of the TIN.

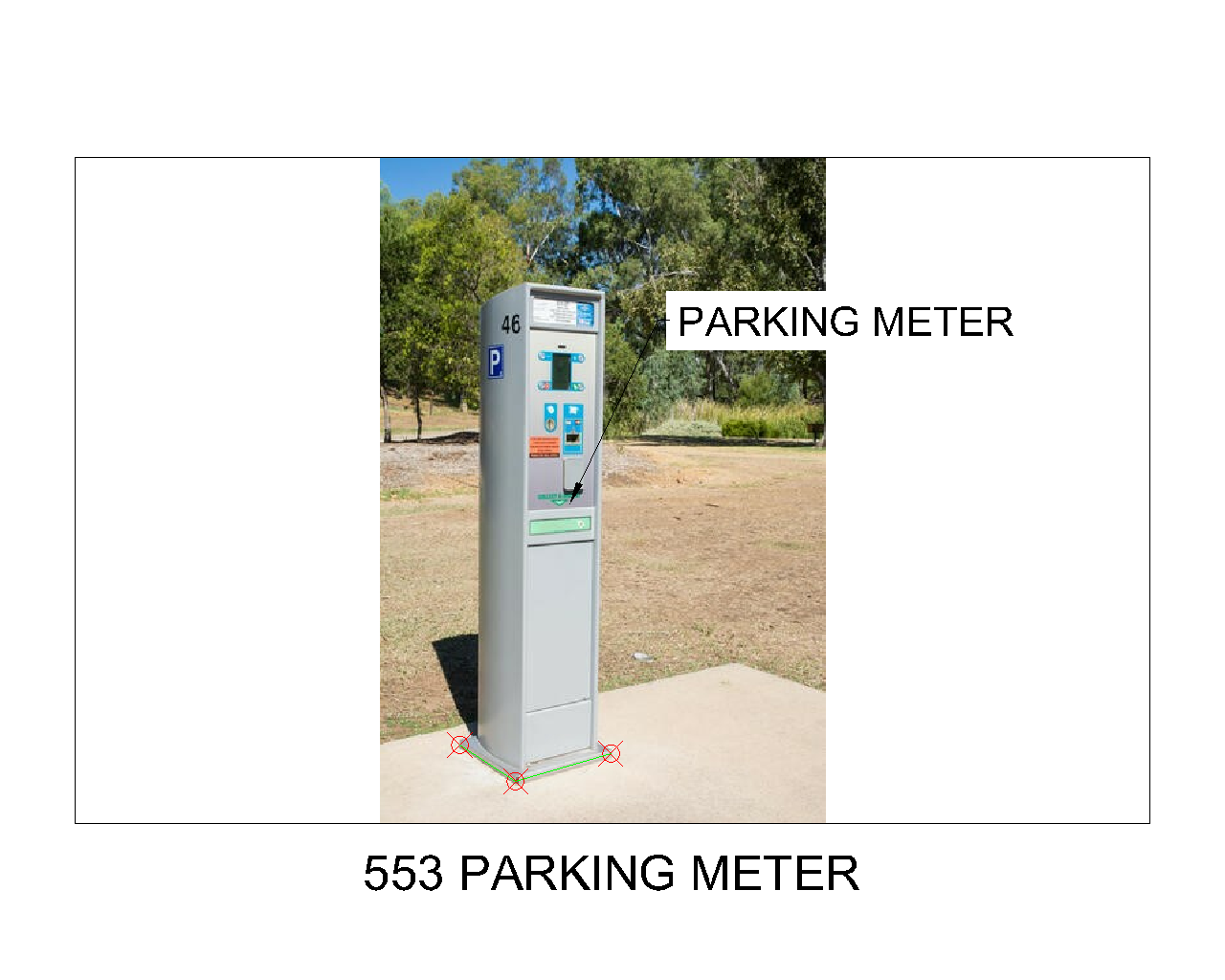

# 553 Parking Meter
CAD Layer - ROAD_FURNITURE_PARKING_METER
3D String around the outside of the base of the parking meter.
This feature is included as part of the TIN.
