# Road
| Name | Code | Category | Feature Layer |
|---|---|---|---|
| Bitumen-CL | 401 | FS_ROAD | ROAD_BITUMEN_CL |
| Bitumen-Spot | 402 | FS_ROAD | ROAD_BITUMEN_SPOT |
| Bitumen-Edge | 403 | FS_ROAD | ROAD_BITUMEN_EDGE |
| Formation-Spot | 404 | FS_ROAD | ROAD_FORMATION_SPOT |
| Formation-Edge | 405 | FS_ROAD | ROAD_FORMATION_EDGE |
| Kerbip | 406 | FS_ROAD | KERB_LIP |
| Kerb-Invert | 407 | FS_ROAD | KERB_INVERT |
| Kerb-Back L | 408 | FS_ROAD | KERB_BACK |
| Kerb-Top | 409 | FS_ROAD | KERB_TOP |
| Footpath | 410 | FS_ROAD | ROAD_FOOTPATH |
| Driveway | 411 | FS_ROAD | ROAD_DRIVEWAY |
| Track | 412 | FS_ROAD | ROAD_TRACK |
| Road Loc. - unclassified | 413 | FS_ROAD | ROAD_ROAD_LOC_UNCLASSIFIED |
| Detector Pad | 414 | FS_ROAD | TRAFFIC_DETECTOR_PAD |
| Lane Dashed | 415 | FS_ROAD | PAVEMENT_LANE_DASHED |
| Delineators | 416 | FS_ROAD | PAVEMENT_DELINEATORS |
| Line Marking | 417 | FS_ROAD | PAVEMENT_LINE_MARKING |
| Lane Solid | 418 | FS_ROAD | PAVEMENT_LANE_SOLID |
| Concrete-Edge | 419 | FS_ROAD | ROAD_CONCRETE_EDGE |
| Traffic Arrow | 420 | FS_ROAD | PAVEMENT_TRAFFIC_ARROW |
| Line Marking Profiled | 421 | FS_ROAD | PAVEMENT_LINE_MARKING_PROFILED |
| Pavement Marking | 422 | FS_ROAD | PAVEMENT_PAVEMENT_MARKING |

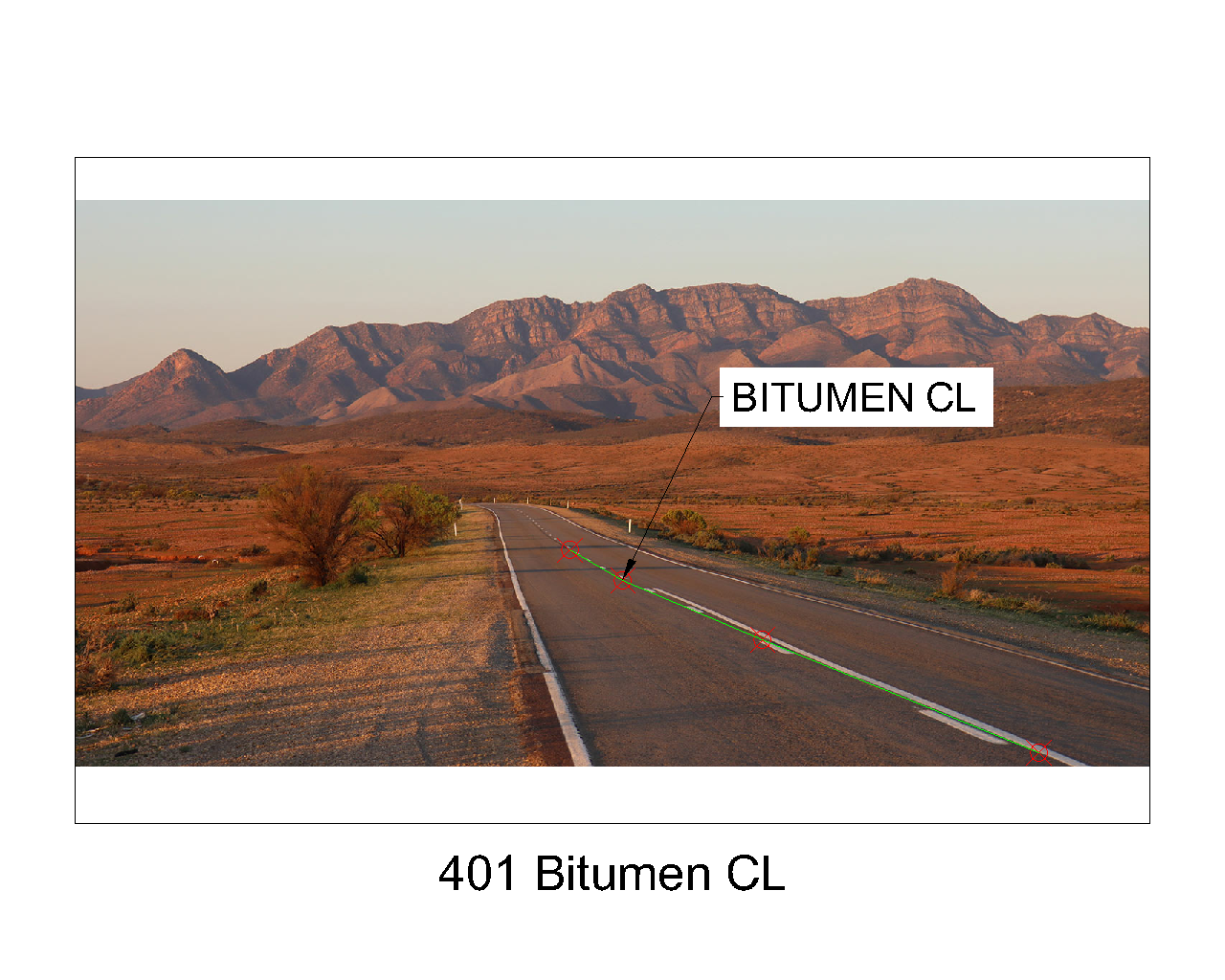

# 401 Bitumen CL
CAD Layer - ROAD_BITUMEN_CL
3D String along the centre line of a bitumen road.
This feature is included as part of the TIN.

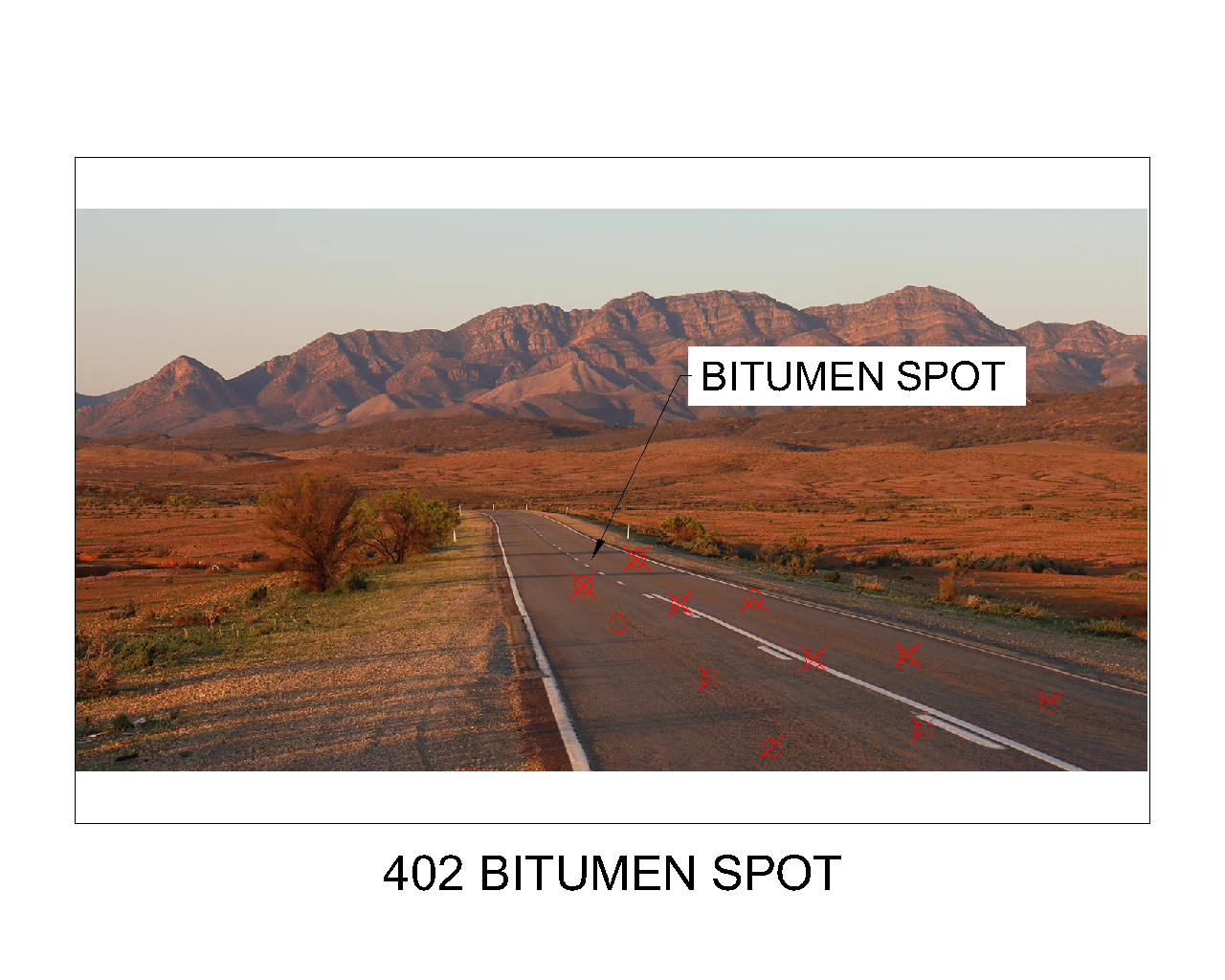

# 402 Bitumen Spot
CAD Layer - ROAD_BITUMEN_SPOT
3D Points evenly spaced within the road.
This feature is included as part of the TIN.

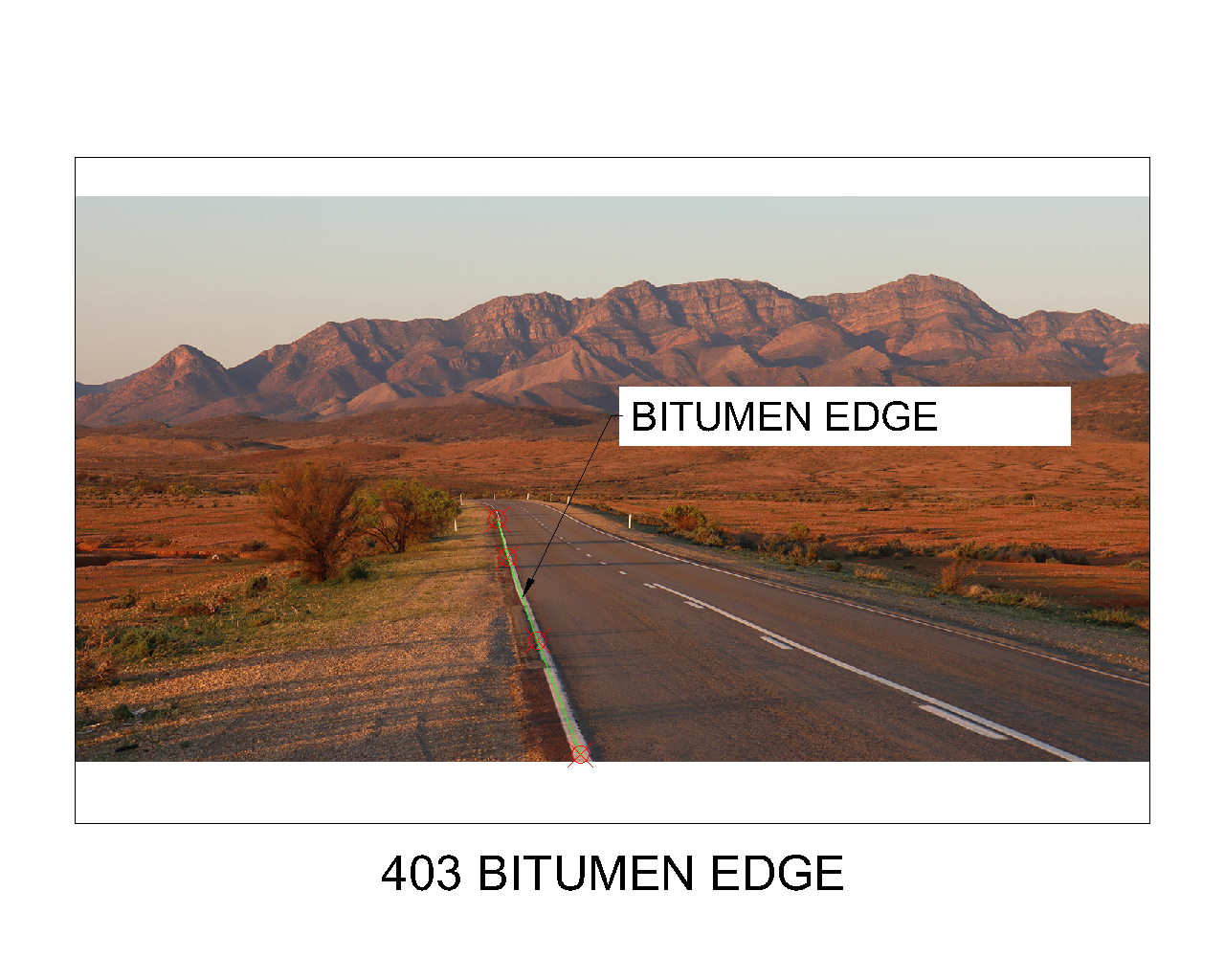

# 403 Bitument Edge
CAD Layer - ROAD_BITUMEN_EDGE
3D String along the edge of a bitumen road.
This feature is included as part of the TIN.

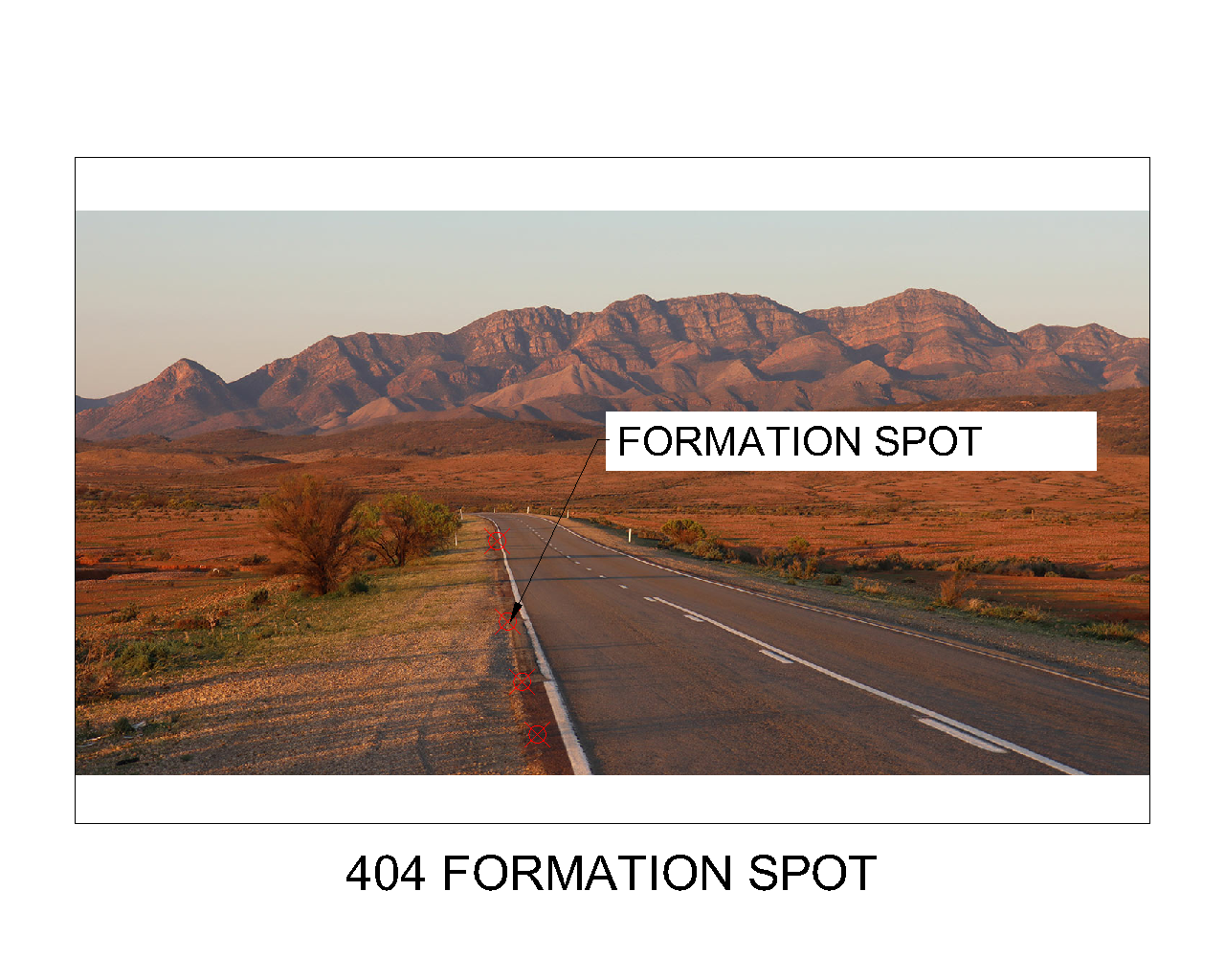

# 404 Formation Spot
CAD Layer - ROAD_FORMATION_SPOT
3D Points along the forming edge of a road.
This feature is included as part of the TIN.

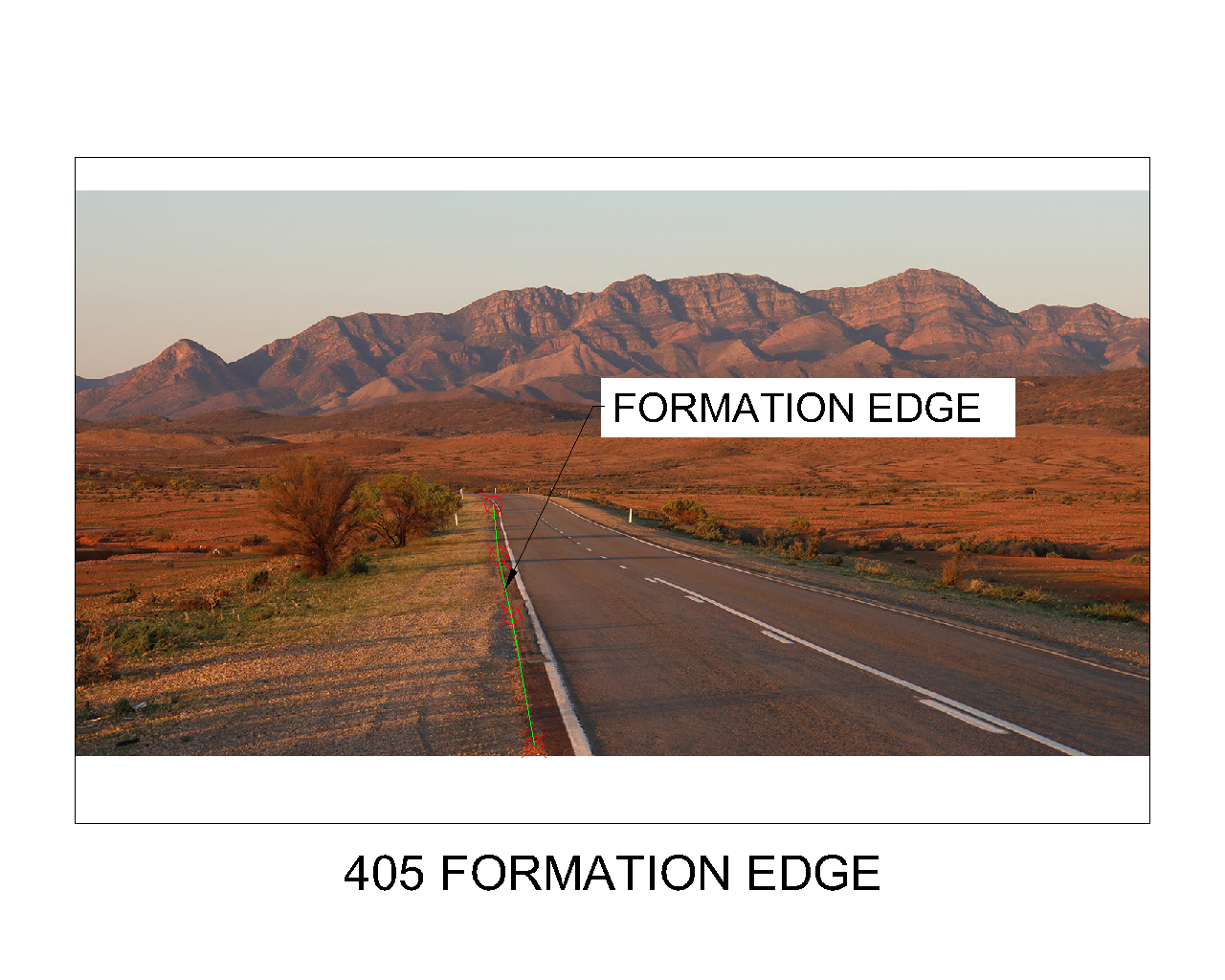

# 405 Formation Edge
CAD Layer - ROAD_FORMATION_EDGE
3D String along the forming edge of a road.
This feature is included as part of the TIN.

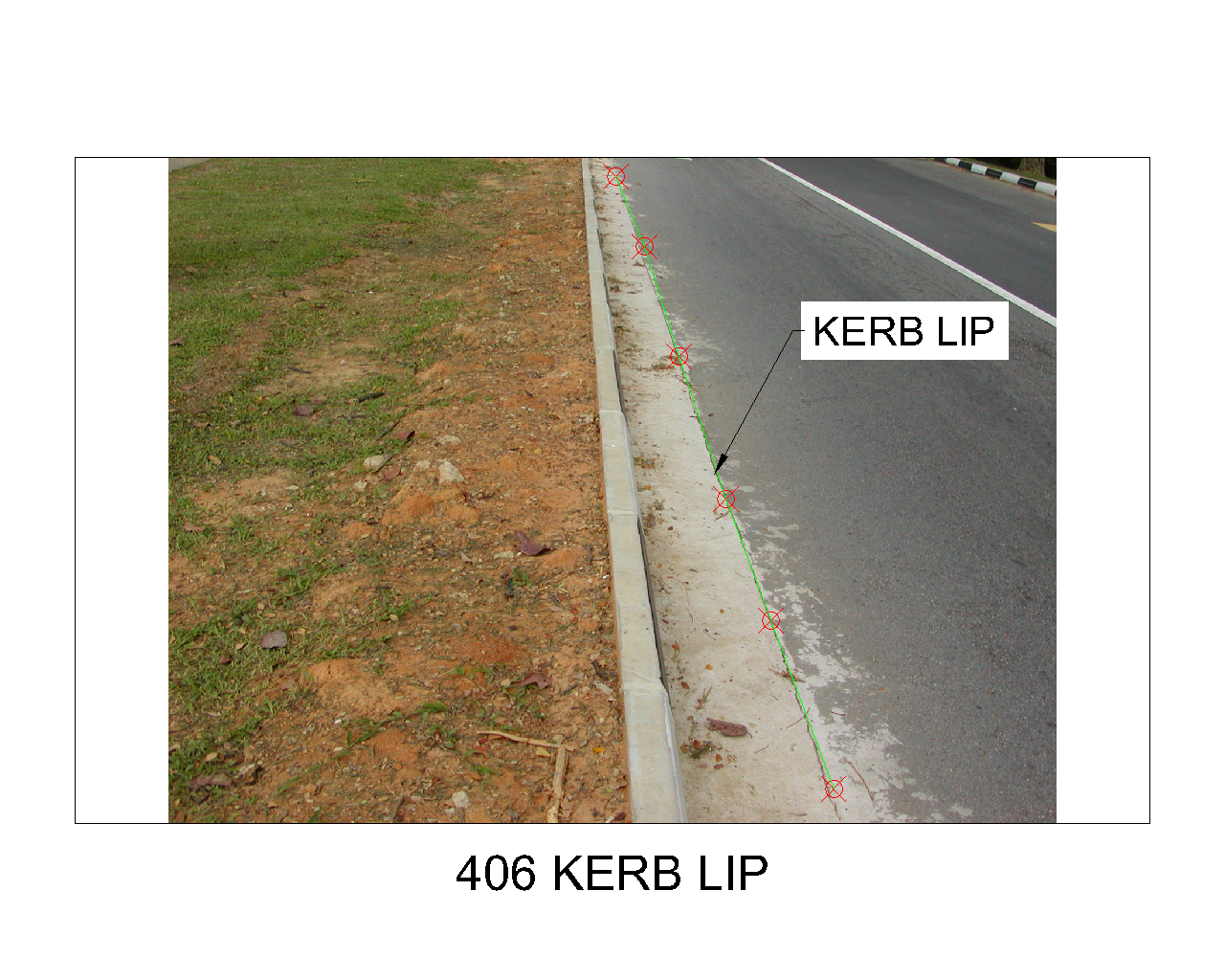

# 406 Kerb Lip
CAD Layer - KERB_LIP
3D String along the lip of a kerb.
This feature is included as part of the TIN.

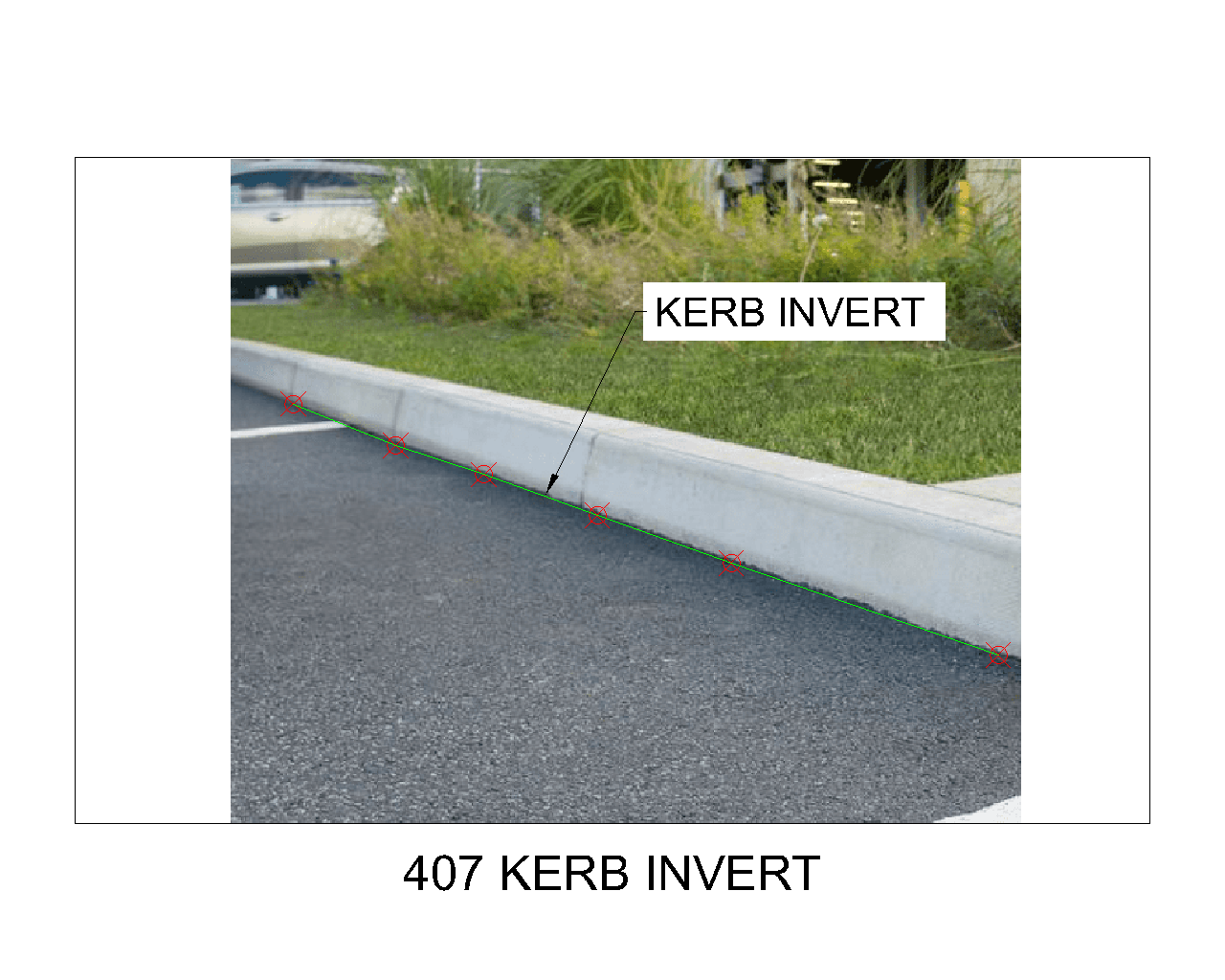

# 407 Kerb Invert
CAD Layer - KERB_INVERT
3D String along the invert of a kerb.
This feature is included as part of the TIN.

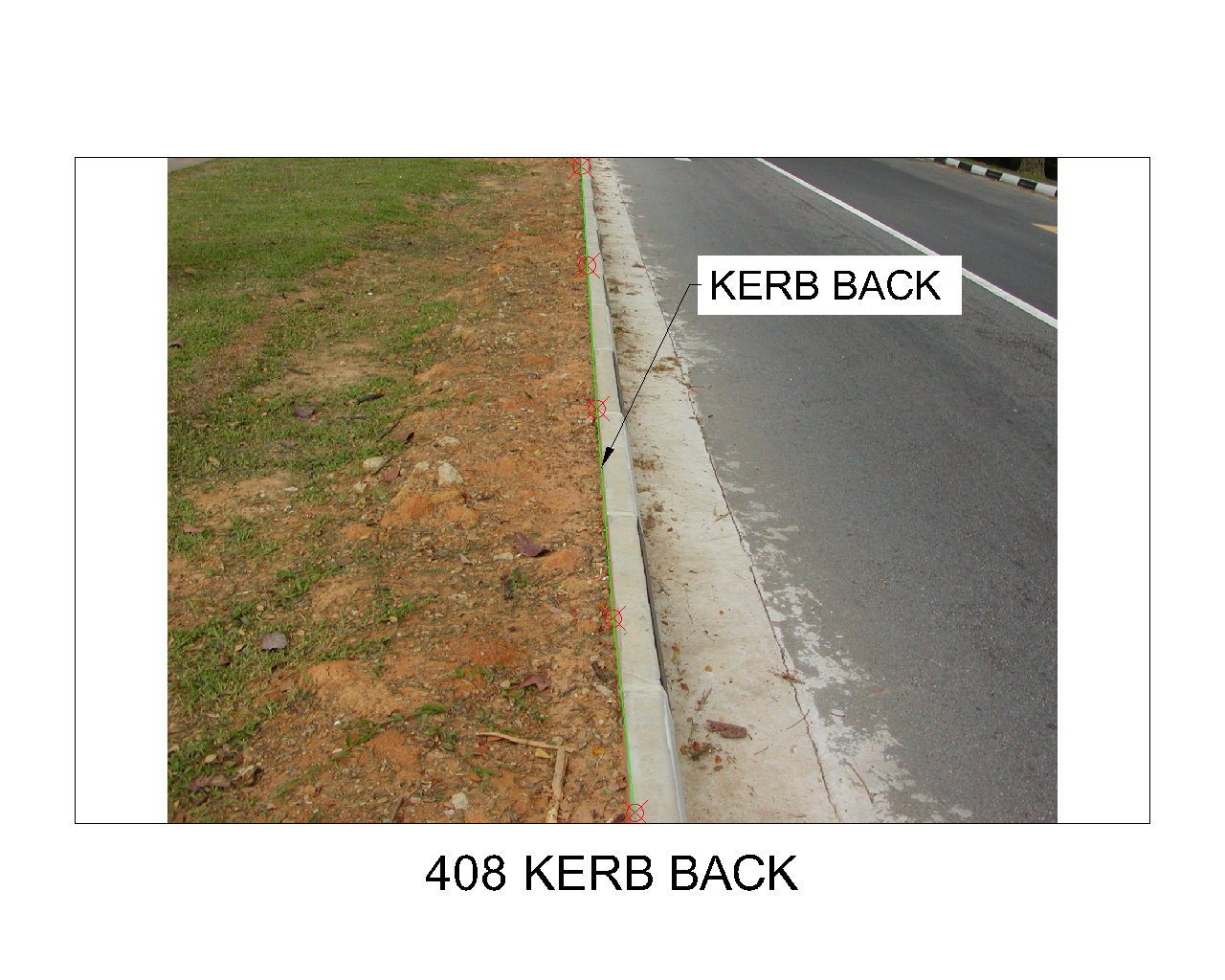

# 408 Kerb Back
CAD Layer - KERB_BACK
3D String along the back of a kerb.
This feature is included as part of the TIN.

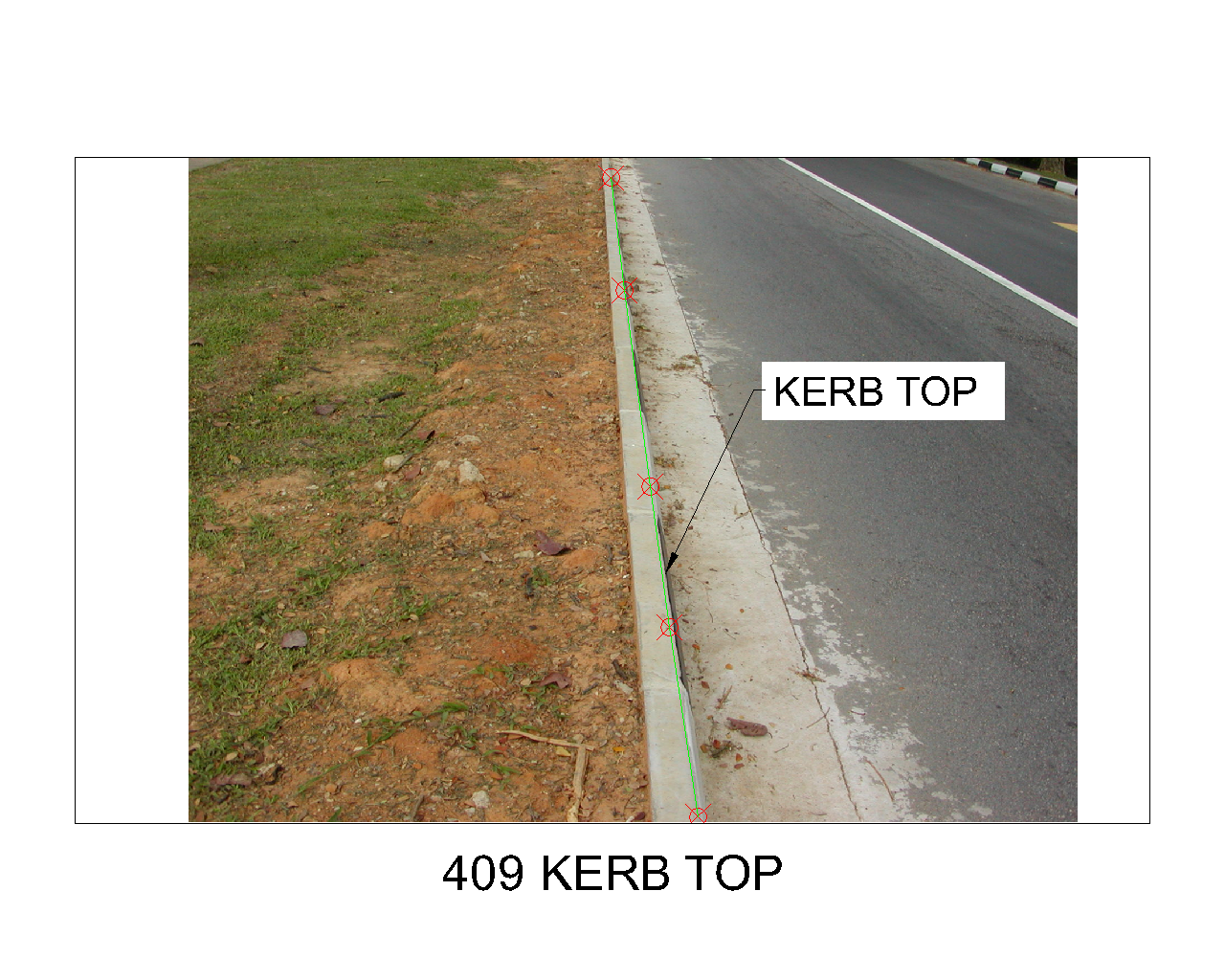

# 409 Kerb Top
CAD Layer - KERB_TOP
3D String along the top of a kerb.
This feature is included as part of the TIN.

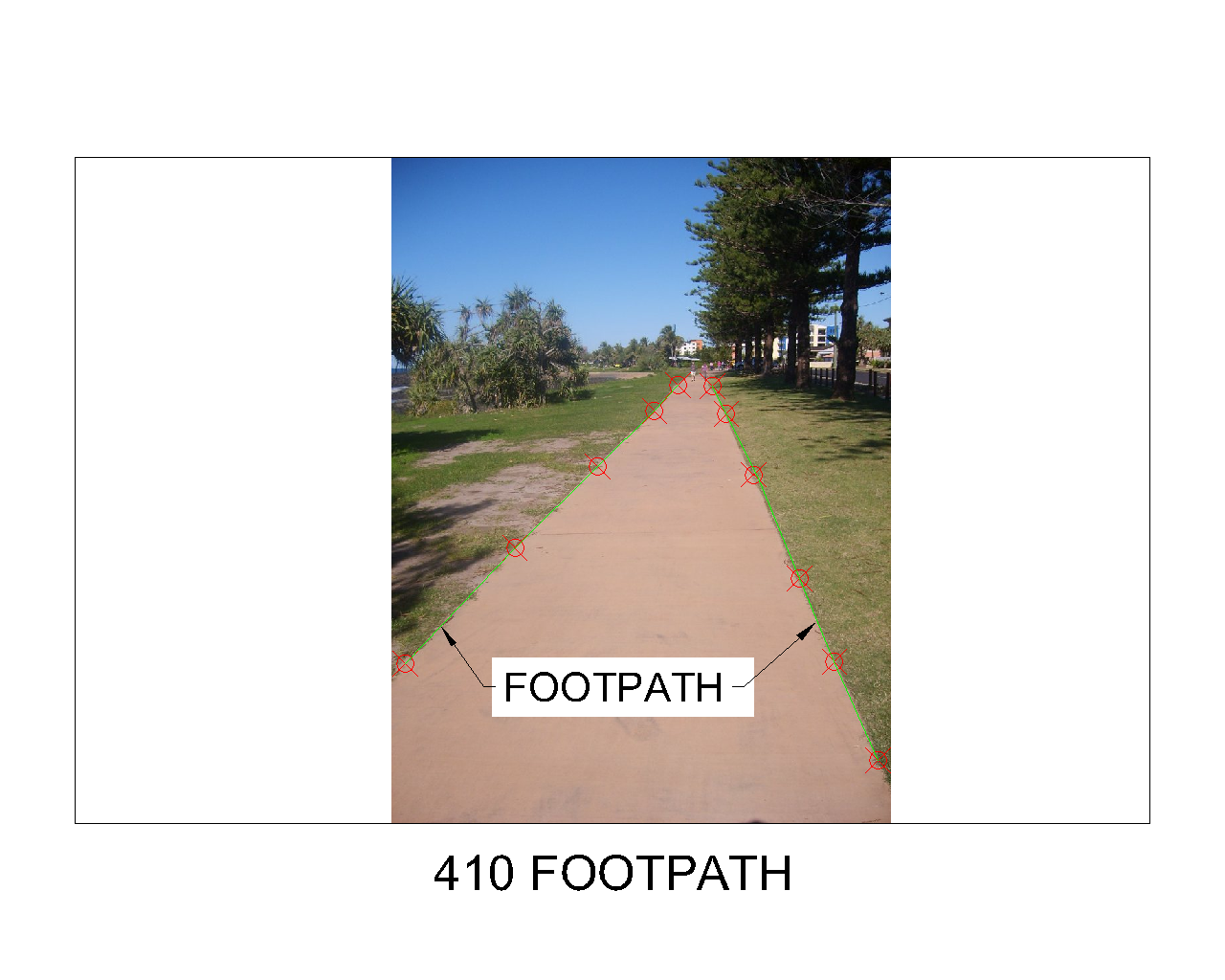

# 410 Footpath
CAD Layer - ROAD_FOOTPATH
3D String along the edges of a footpath.
This feature is included as part of the TIN.

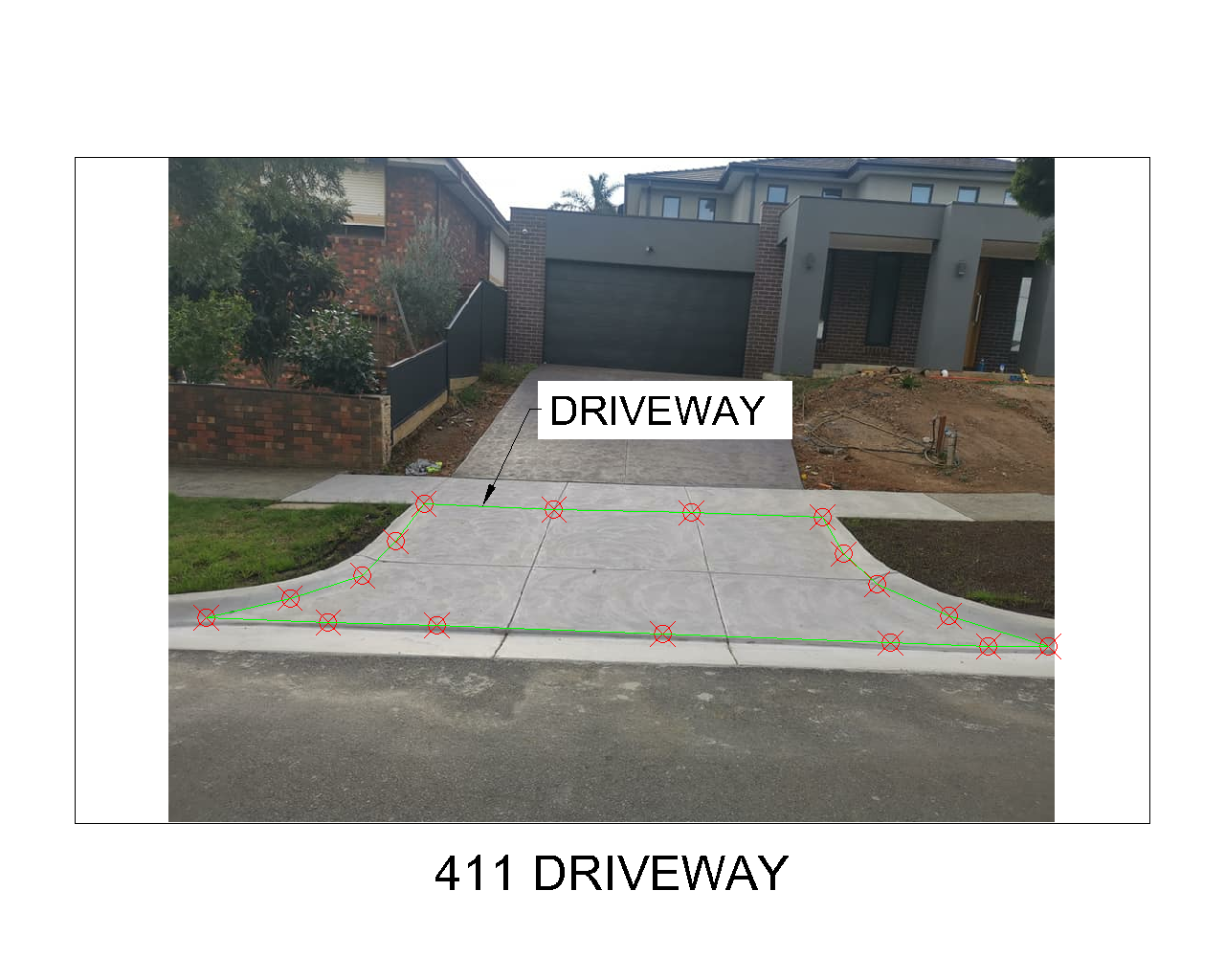

# 411 Driveway
CAD Layer - ROAD_DRIVEWAY
3D String along the edge of a driveway.
This feature is included as part of the TIN.

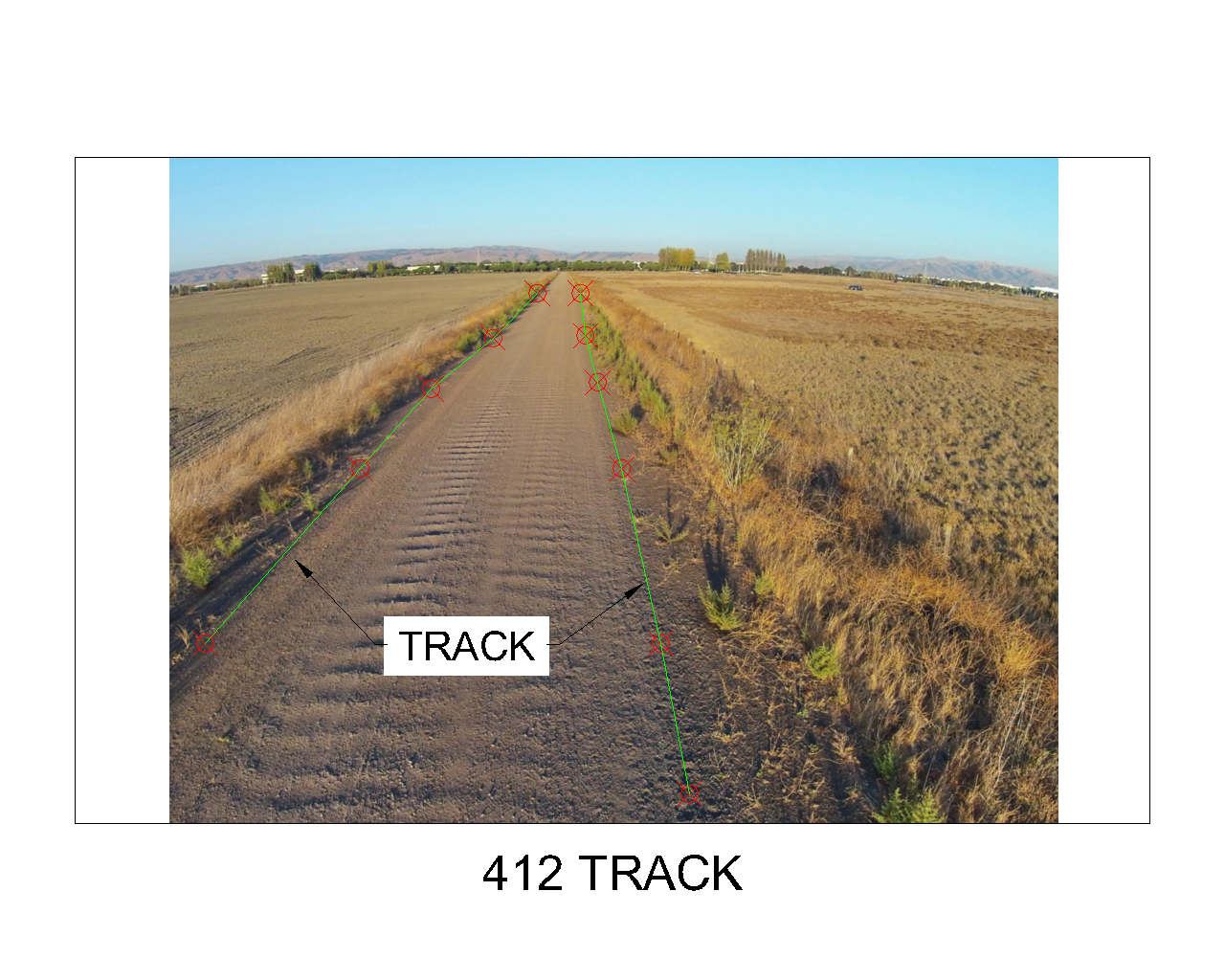

# 412 Track
CAD Layer - ROAD_TRACK
3D String along the edges of a gravel path or track.
This feature is included as part of the TIN.

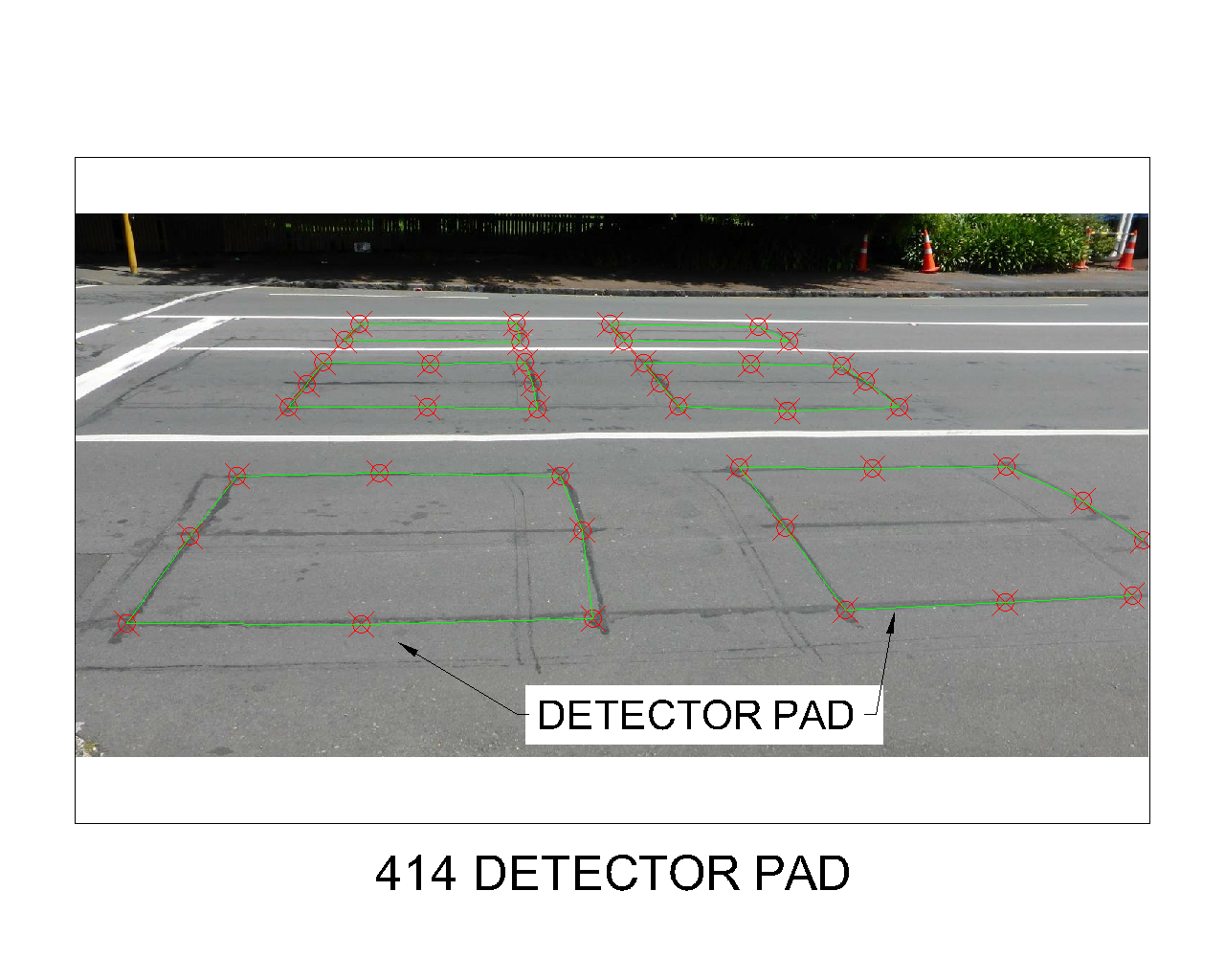

# 414 Detector Pad
CAD Layer - TRAFFIC_DETECTOR_PAD
3D String along the perimeter of a detector pad.
This feature is included as part of the TIN.
# 415 Lane Dashed
CAD Layer - PAVEMENT_LANE_DASHED
3D String along a dashed line of a road lane.
This feature is included as part of the TIN.

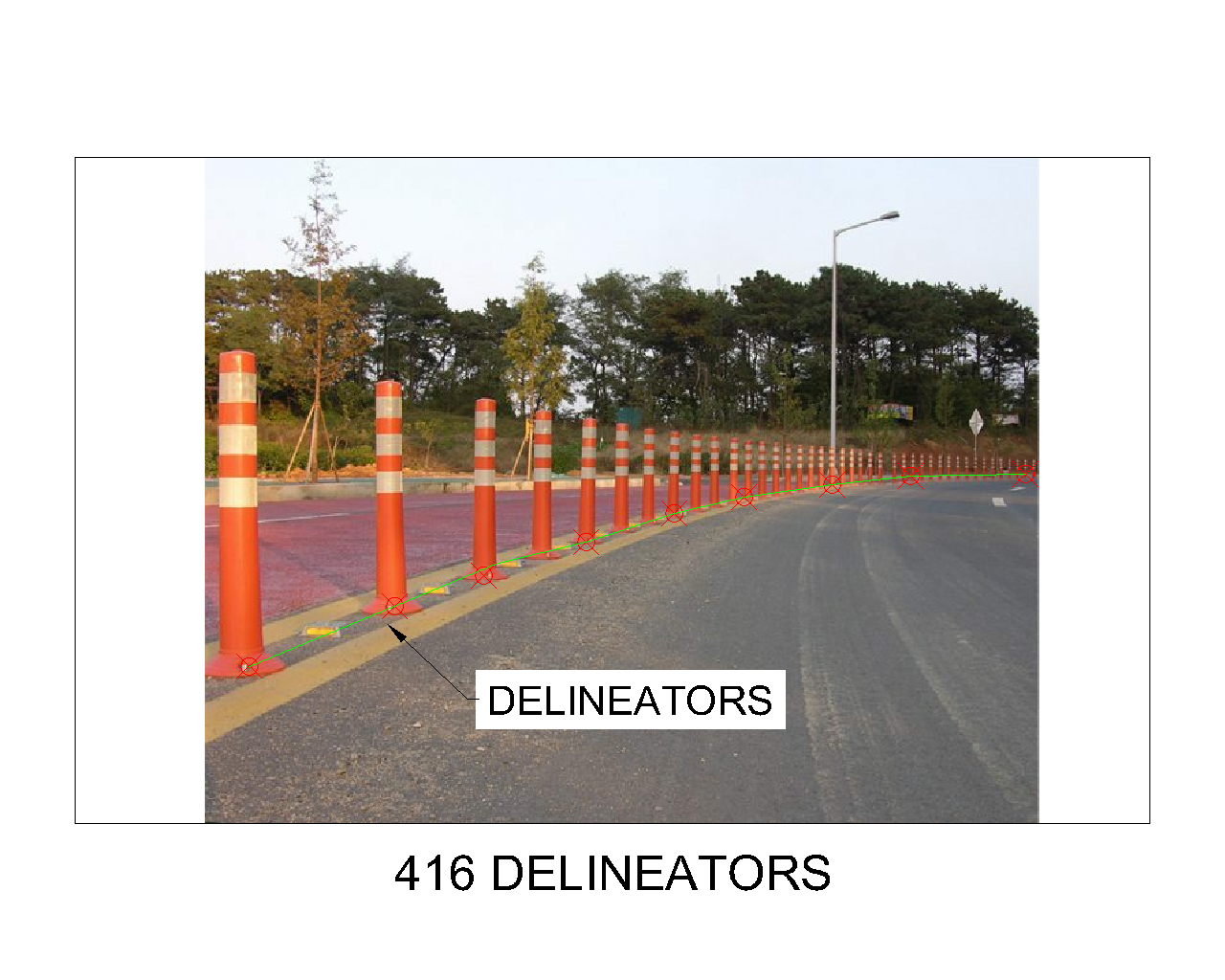

# 416 Delineators
CAD Layer - PAVEMENT_DELINEATORS
3D String along row or line of delineators.
This feature is included as part of the TIN.

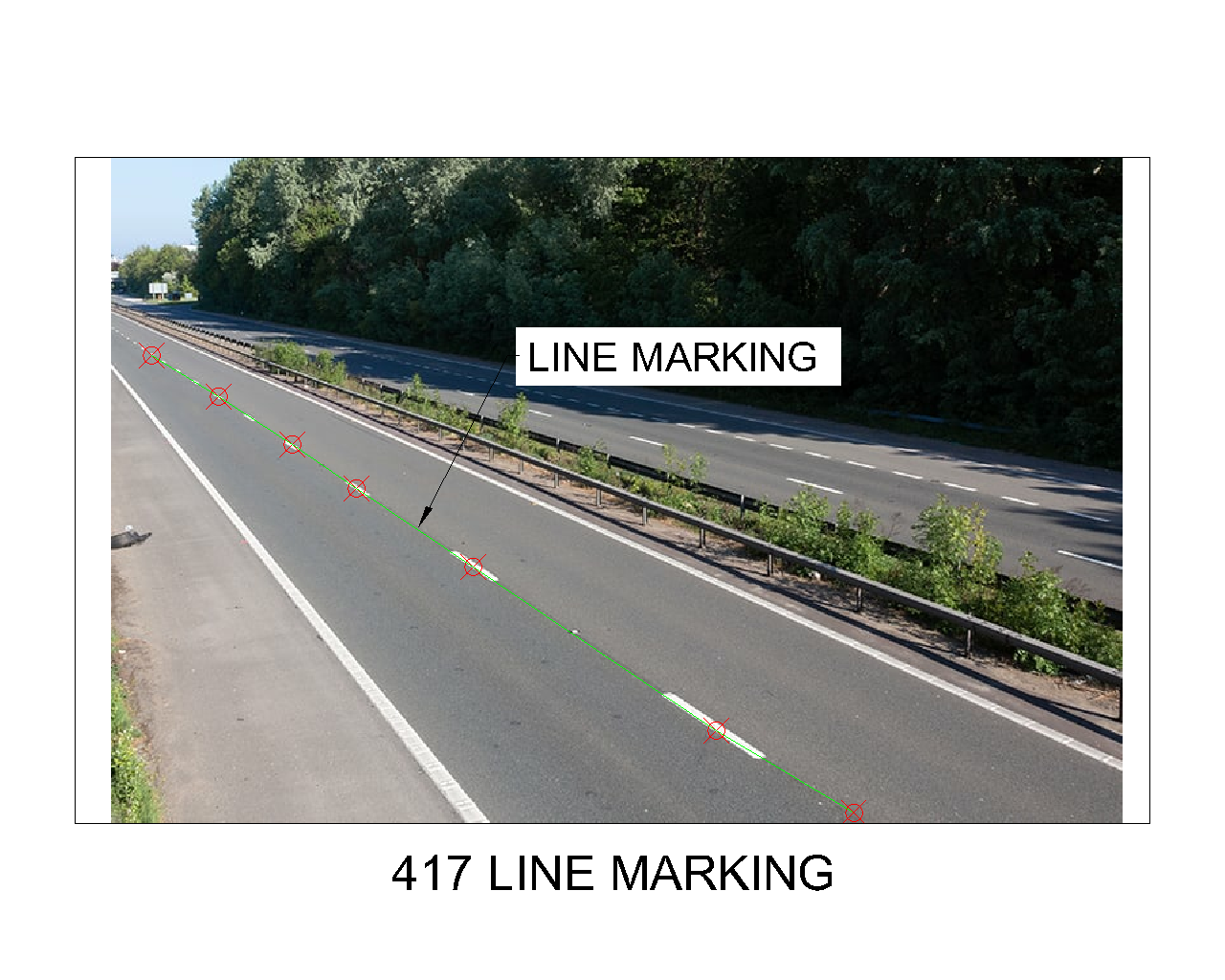

# 417 Line Marking
CAD Layer - PAVEMENT_LINE_MARKING
3D String along any type of marked out line.
This feature is included as part of the TIN.

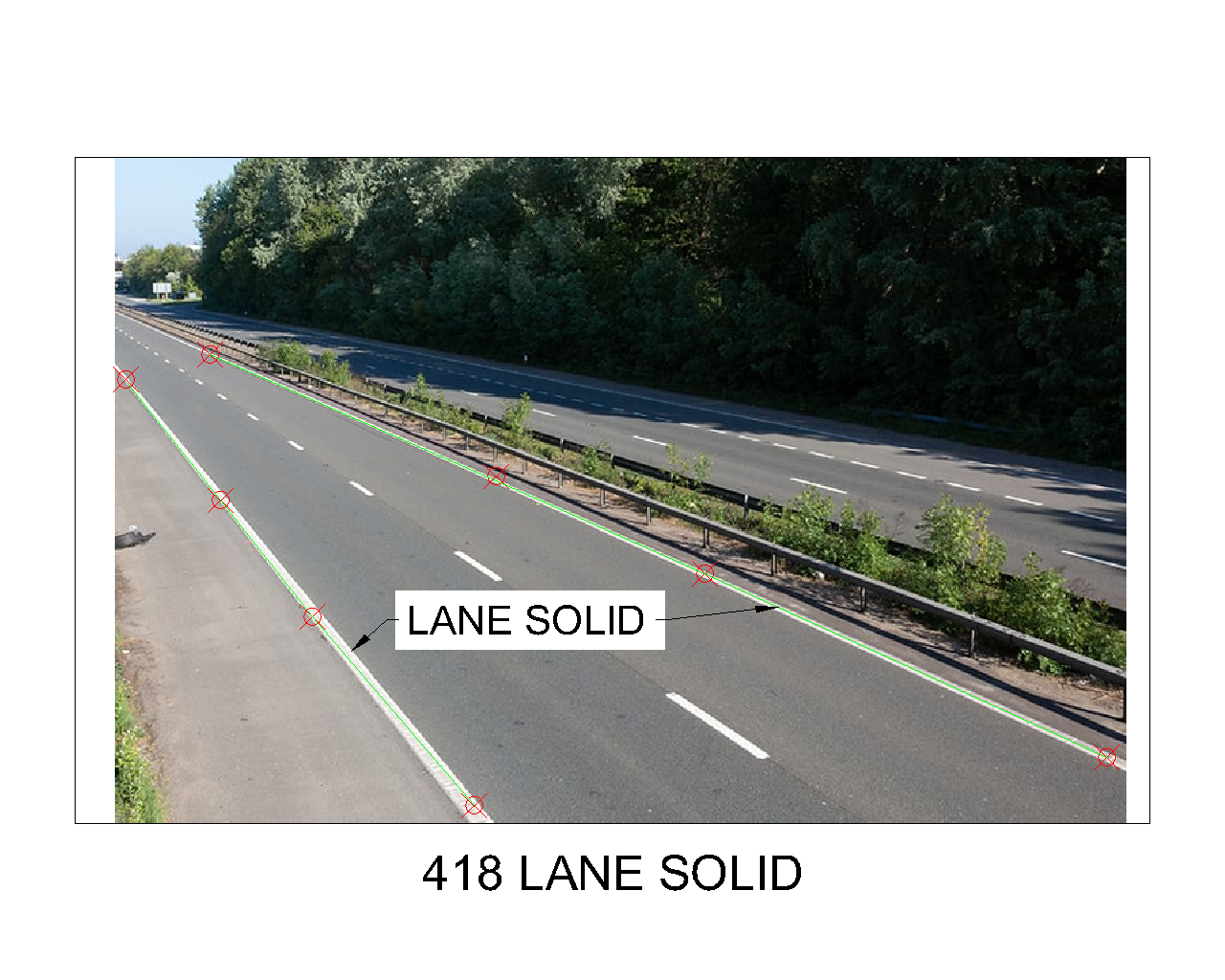

# 418 Lane Solid
CAD Layer - PAVEMENT_LANE_SOLID
3D String along a solid line of a road lane.
This feature is included as part of the TIN.

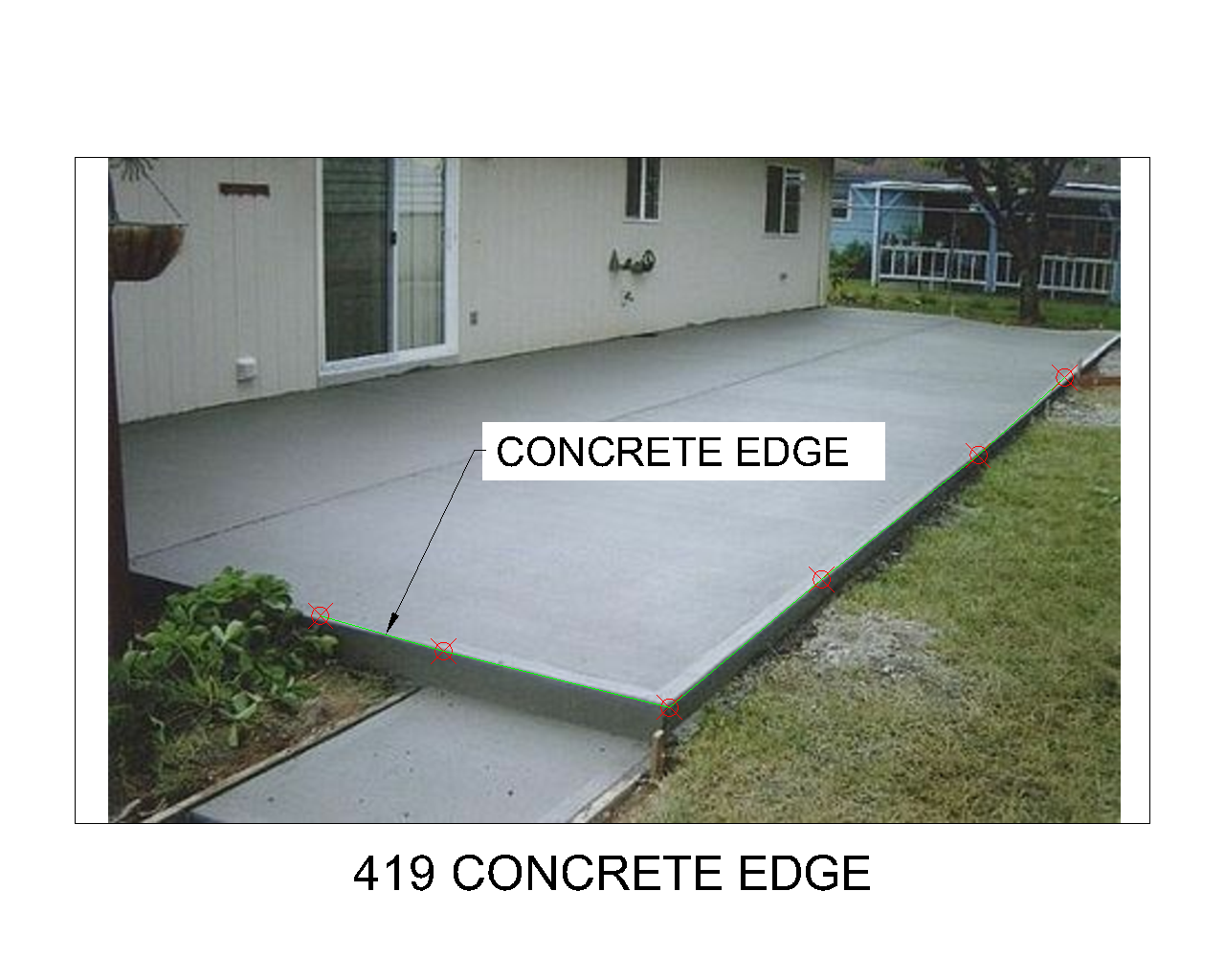

# 419 Concrete Edge
CAD Layer - ROAD_CONCRETE_EDGE
3D String along the edge of concrete.
This feature is included as part of the TIN.

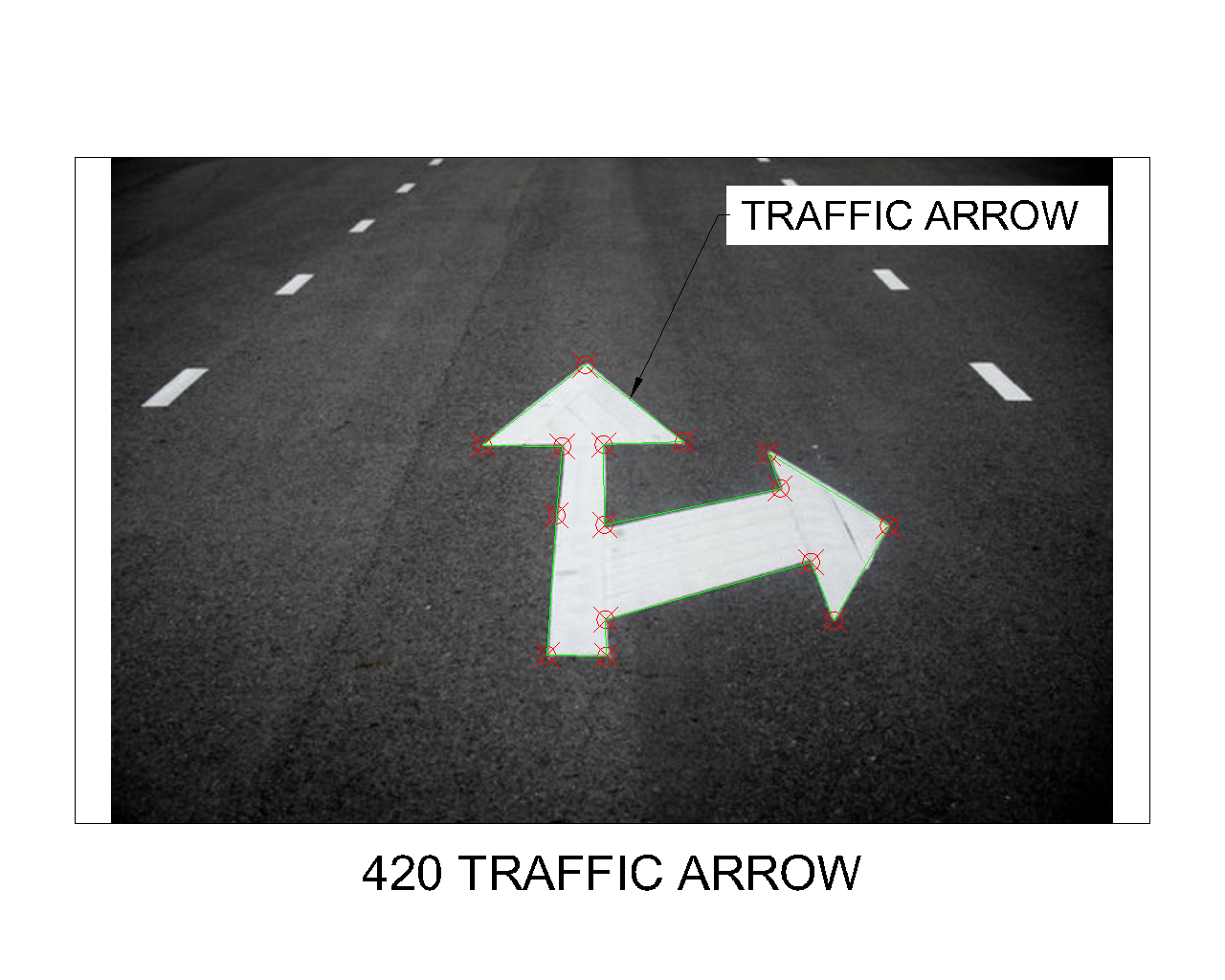

# 420 Traffic Arrow
CAD Layer - PAVEMENT_TRAFFIC_ARROW
3D String along the edge of traffice arrow on road surface.
This feature is included as part of the TIN.

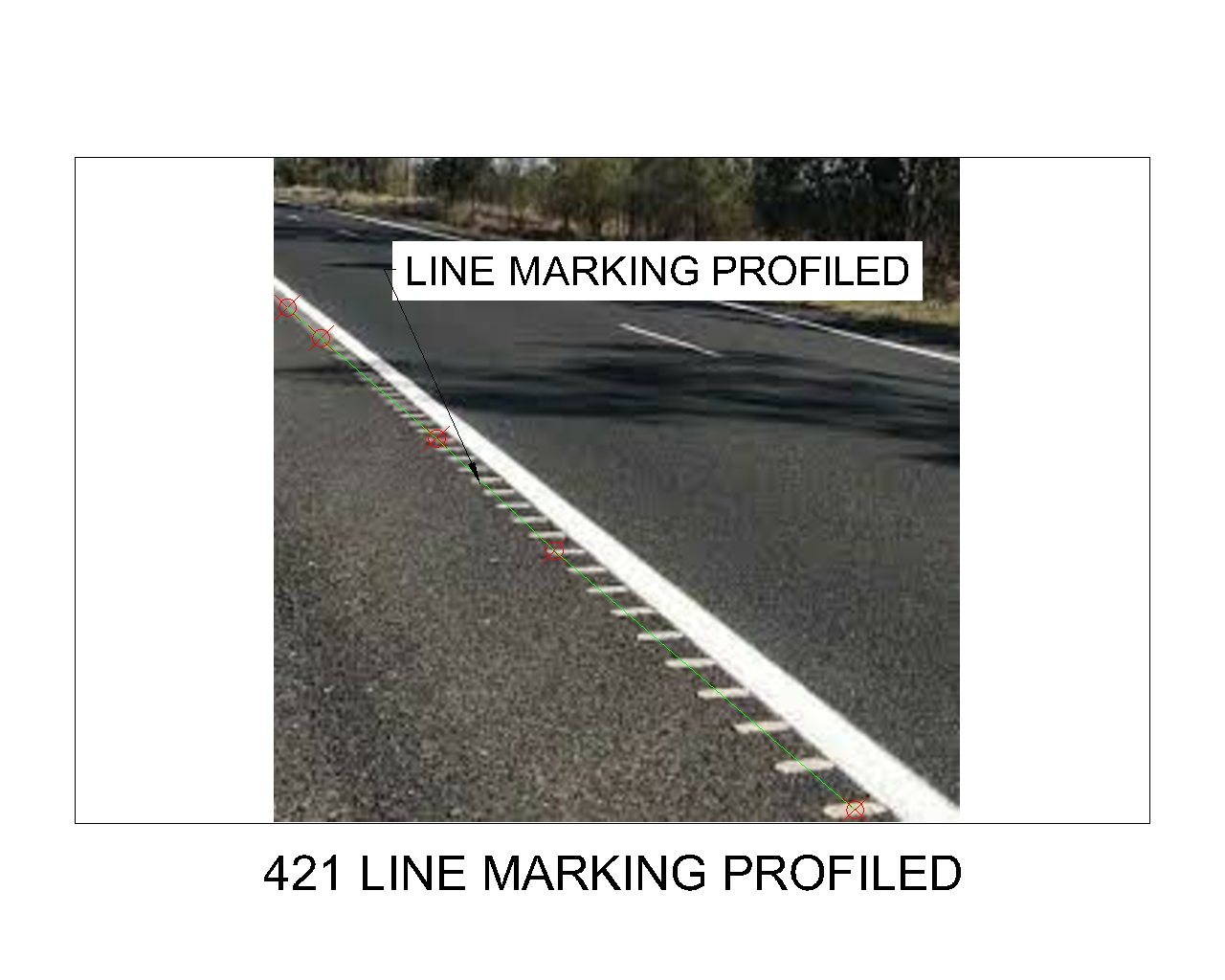

# 421 Line Marking Profiled
CAD Layer - PAVEMENT_LINE_MARKING_PROFILED
3D String along a line of profiled marks.
This feature is included as part of the TIN.
